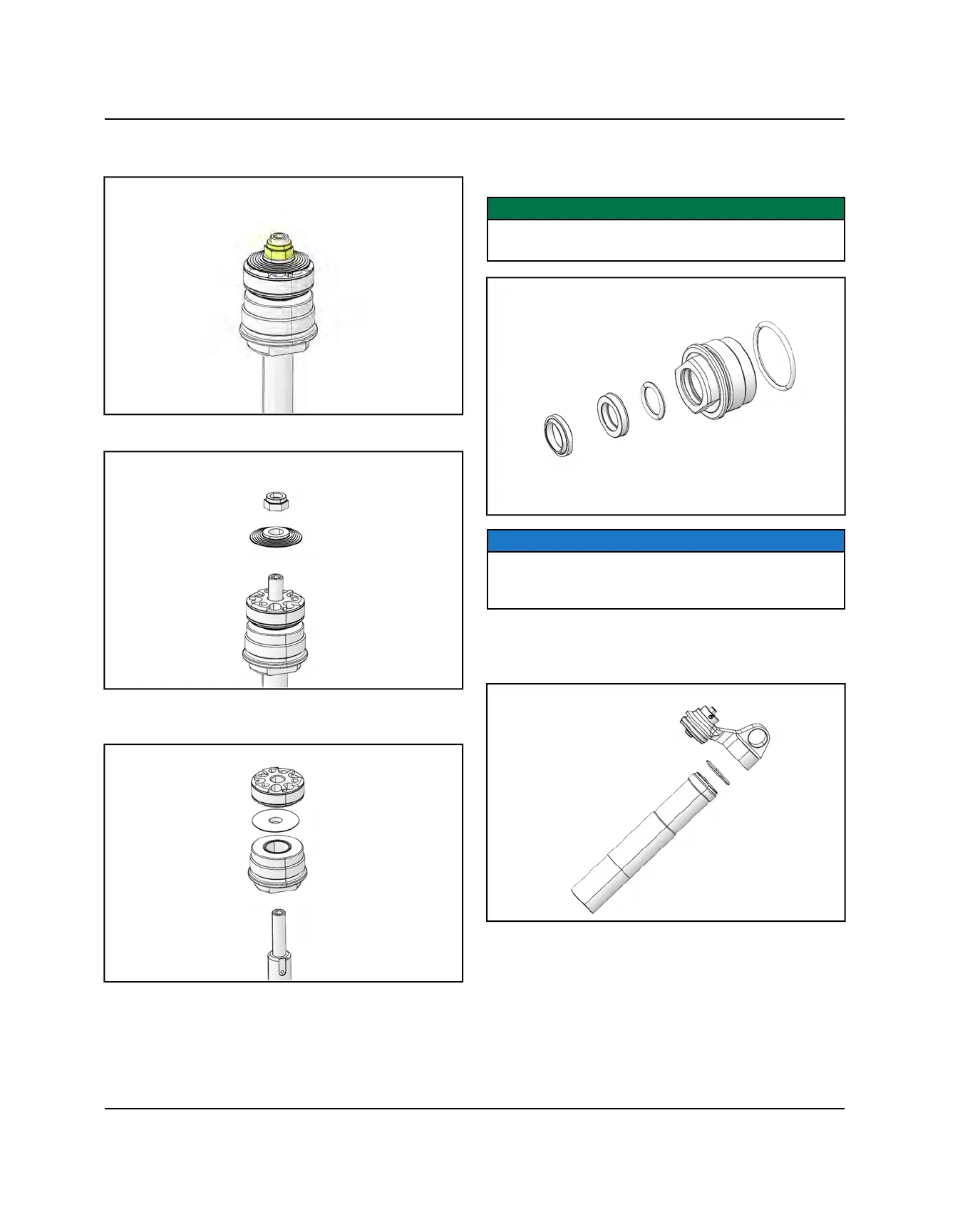

15.Place the eyelet end of the shock rod into the vise.
Remove and discard the lock nut.
16.Remove the rebound valve stack from the shock rod.
17.Remove the piston valve and compression valve
stack from the shock rod. Remove the bearing cap.
18.To service the bearing cap, remove and discard the
bearing cap O-ring. Use a pick to remove the wiper
seal, U-cup seal and inner O-ring.
IMPORTANT
Do not to scratch or gouge the O-ring / seal grooves
when removing the bearing cap O-rings and seals.
NOTICE
The bearing cap shaft bushing is serviceable, but it is
recommended to replace bearing cap assembly if
bushing is worn or damaged.
19.To service the shock body or needle (if equipped),
remove the shock body from the body cap. Discard
the O-ring.
