FINAL DRIVE
7.62

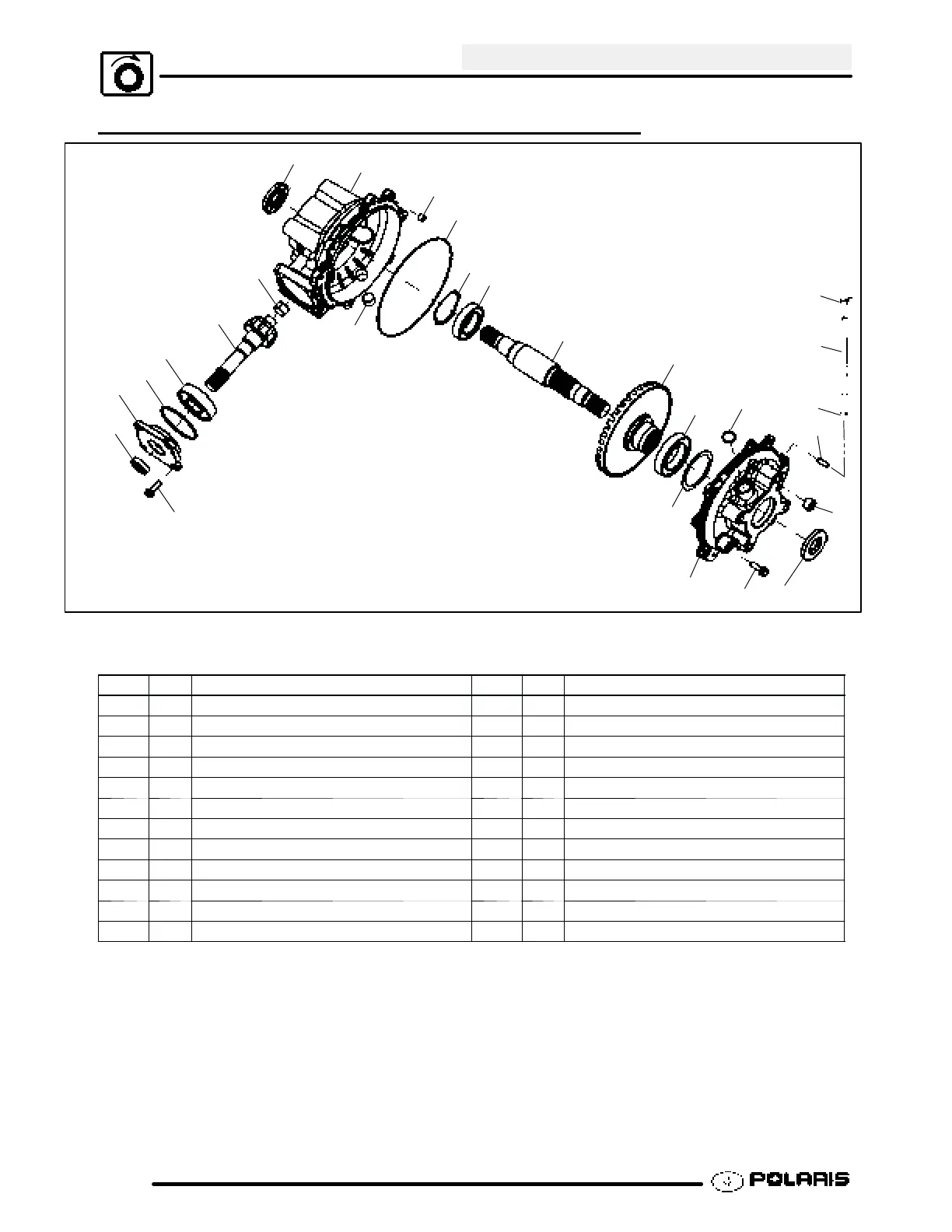

REAR DIFFERENTIAL EXPLODED VIEW (6X6)
Ref. Qty. Description Ref. Qty. Description
1 Asm., Rear Gearcase 12. 1 Bearing, Ball
1. 1 Seal 13. 1 Shaft, Output
2. 1 Cover , Input 14. 1 Gear, Ring 37T
3. 1 O-Ring 15. 1 Bearing, Ball
4. 1 Bearing, Ball 16. 1 Plug, Expansion
5. 1 Pinion, 10T 17. 3 Clip
6. 1 Bushing 18. AR Line, Vent
7. 2 Seal 19. 1 Tube, Vent
8. 1 Case, Front 20. 2 Plug, Drain
9. 1 Pipe, Knock 21. 12 Screw
10. 1 O-Ring 22. 1 Cover, Output
11. 1 Spring, Wave 23. AR Shim 2.5
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
17.
19.
20.
21.
22.
23.
7.
20.
21.
