BODY/STEERING/SUSPENSION
5.19
BOX REMOVAL /
INSTALLA
TION

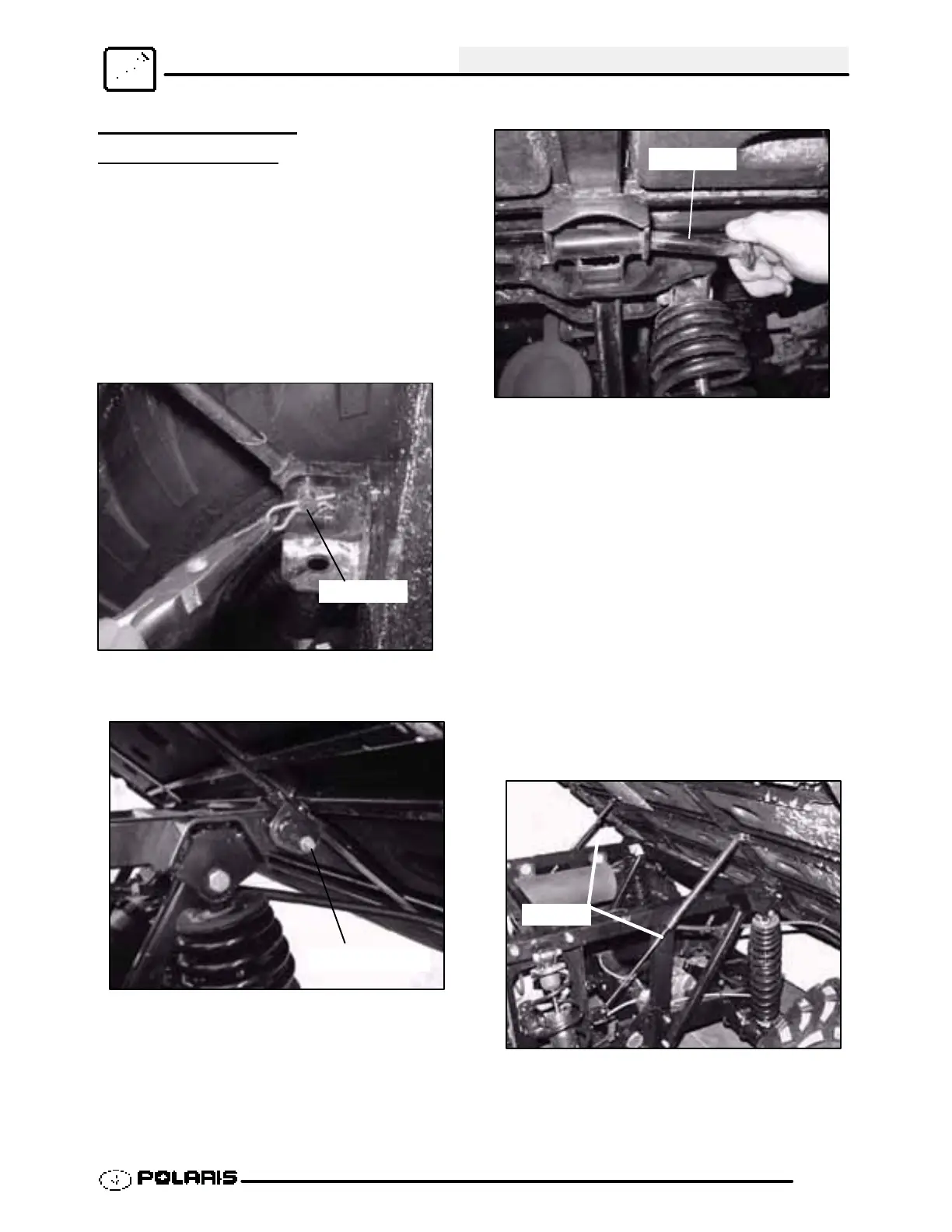

Box Removal
1. Lift the box into the dump position.
2. Remove the box shock pin from the frame (both
sides).
3. Remove the shocks from the shock brackets. Let
the shocks fully extend.
CAUTION: Safely support the box during the rest of
the removal process. The box is not as stable with the
shocks removed.
Shock Pin
4. Remove the screw that secures the hinge pin to
the frame (both sides).
Secure Screw
5. Remove the the hinge pin (both sides).
CAUTION: Safely support the box during the rest of
the removal process. The box is not as stable with the
hinge pins removed.
Hinge PIn
6. With both hinge pins removed, remove the box
from the frame. Two people maybe needed to
remove the bed from the frame.
CAUTION: Use caution when removing the box. It
is recommended to have two people to carefully
remove the box from the frame.
Box Installation
1. Place the box onto the frame. Align the hinges of
the box with the bracket on the frame.
2. Install the box hinges (both sides).
3. Secure the box hinges with the hinge screws
(both sides).
4. With the hinges installed, decompress the box
shocks and place them into the shock brackets on
the frame (both sides).
5. Secure the box shocks with the shock pin (both
sides).
Shocks
6. Lower the box and secure the latch.
