PARKING BRAKE
PARKING BRAKE CABLE FREEPLAY ADJUSTMENT
1. Inspect and perform any needed
service on the brake pads before
adjusting parking brake cable
freeplay.
2. Make sure the parking brake is NOT
set (lever is DOWN).
3. Pull the brake cable back to inspect
freeplay between the cable end and
the caliper bracket. Freeplay should
be 1.5-3 mm (1/16" - 1/8").

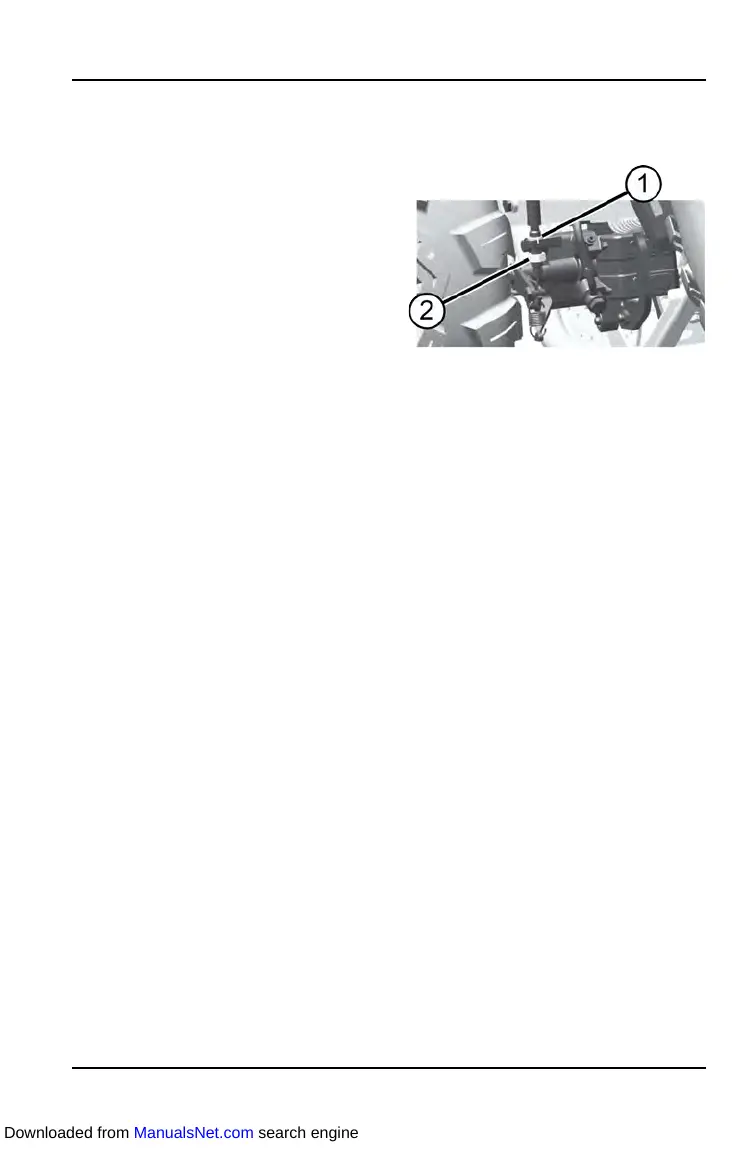

4. To adjust freeplay, loosen the jam
nut
w
. Turn the in-line adjuster nut
q
outward to decrease freeplay.
Turn the adjuster nut inward to
increase freeplay.
5. Tighten the jam nut against the
adjuster nut.
71
MAINTENANCE
