Polaris AfterDark AD151 User Manual

1
9
10
2
3
4
5
6
7
8
11
12
13
14
15
16
17
18
Parts Bag
Components
www.polarispool.com
1 AD210 Cover 1
2 AD300 Lamp/Reflector Assembly 1
3 AD305 Lamp Only, 150W H.I.D 1
4 AD310 Lamp Bracket 1
5 AD325 Lamp Wire/Socket Assembly 1
6 AD320 Heat Filter Assembly 1
7 AD435 Fuse, Color Wheel 1
8 AD430 Color Wheel Control Board 1
9 AD640 Fuse Holder, Main Power 1
10 AD650 Fuse, Main Power 1
11 AD410 Color Wheel Retainer 1
12 AD400 Color Wheel Assembly 1
13 AD630 Fan 1
14 AD620 Switch, Color wheel Power 3-way 1
15 AD610 Switch, Main Power 2-way 1
16 AD420 Color Wheel Motor 1
17 AD500 Color Wheel Power Connector 1
18 AD100 Manifold Assembly 1
AD10 UFL Waterproof Lens Housing,
Universal, 1-1/2" MIP
AD15 Wireless Remote
No. Part Description Qty
AfterDark

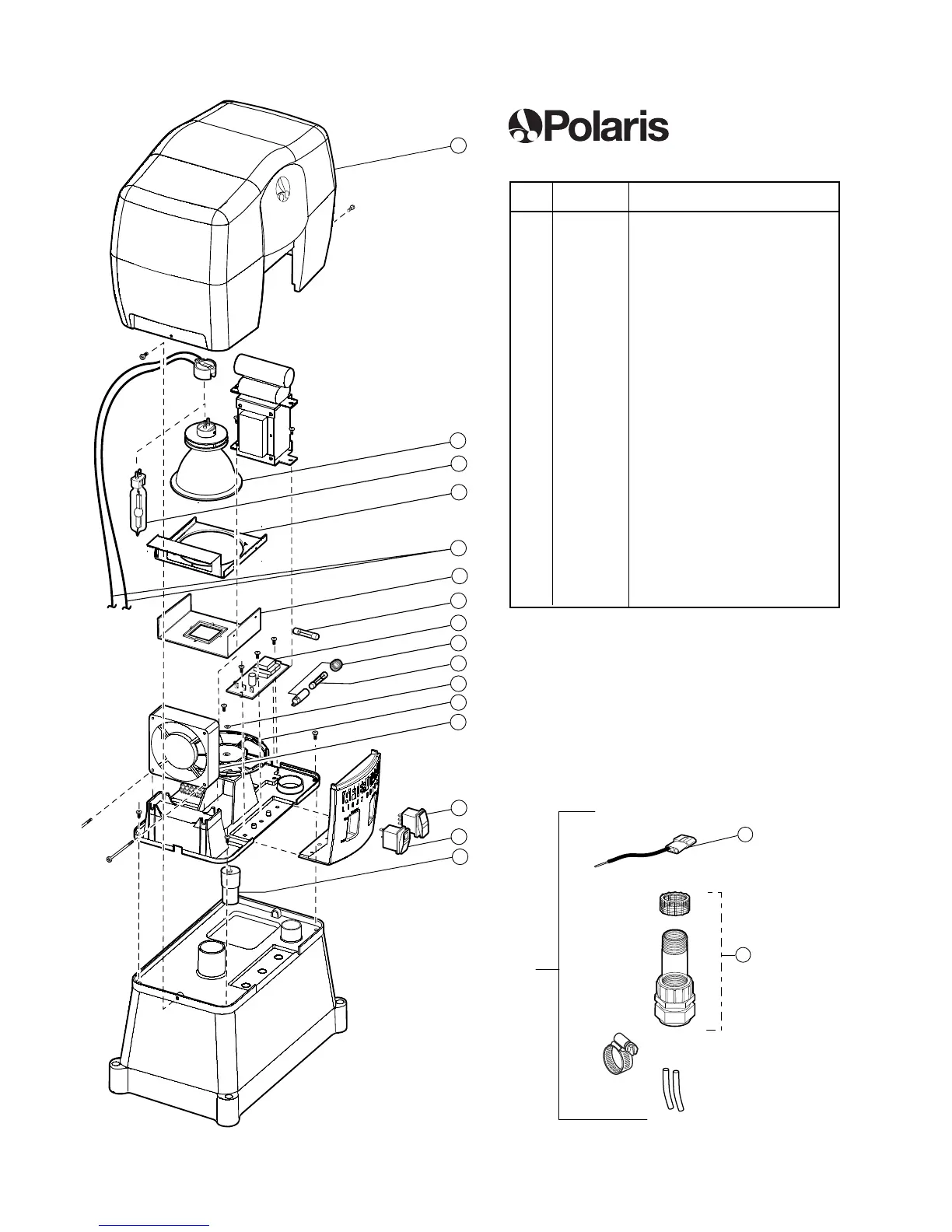

Exploded Parts Diagram
