Install the Base
If installing underwater lights, install the Universal Fiber Lens (part #AD10) first and then
install the light driver. If installing a light kit, install the fiber first and then install the light driver.
Remove the installation base to access conduit ends.
1. Feed the fiber optic cable through the conduits. Measure enough cable for a service loop
of at least 18" but no more than 36" at the light driver.

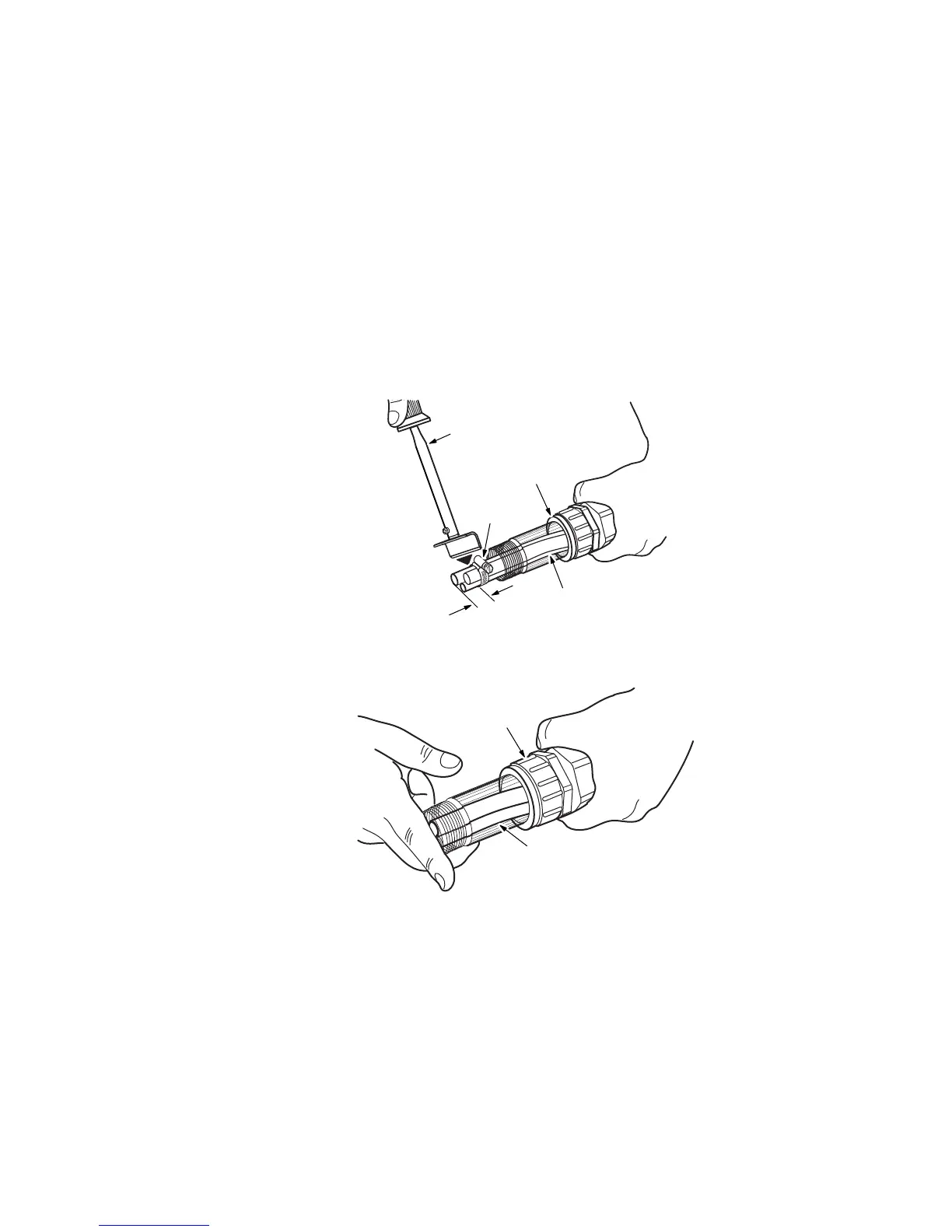

2. Strip the fiber casing back 8-10" to expose the bare fibers. Hold the tips of the fiber
cables even and insert them through the fiber manifold body starting at the compression
fitting. Push the fiber through until the bare fibers extend 3-4” past the manifold opening.
3. Secure the loose fibers with the clamp provided, making sure that the individual fibers
extend at least 1” beyond the clamp. Use the Polaris Hot Knife (part #AD25) to trim the
fibers until the ends are clean and even with the clamp.
4. Remove the clamp and slide the fibers back so that they are flush with the
manifold opening.
5. Hand tighten the compression fitting. If the fitting does not hold the fiber casings securely,
loosen the fitting, insert the filler cables provided and re-tighten the fitting.
