MAINTENANCE AND LUBRICATION
Lubrication Recommendations
Oil and F ilter Chang e - AT P 500 4x4

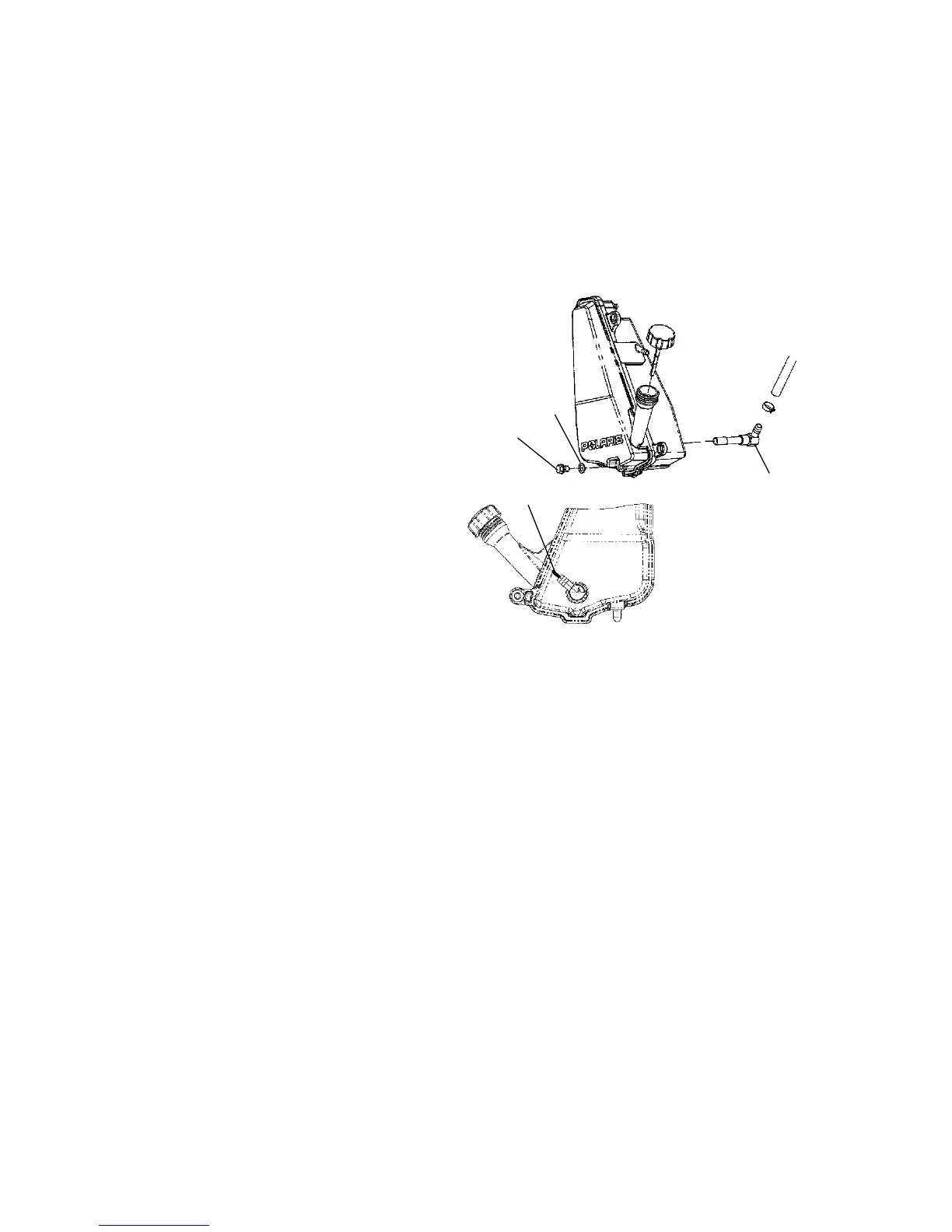

4. Place a drain pan beneath the oil tank and remove the drain plug
(1). Allow the oil to drain completely.
5. Install a new sealing washer (2) on the oil drain plug. NOTE:
The sealing surfaces on the drain plug and the oil tank should be
clean and free of burrs, nicks or scratches.
6. Reinstall t he drain plug
and torque to 14-17 ft.
lbs. (1.93-2.35 kg/m)
7. Disconnect the lower oil
delivery hose and remove
the screen fitting (3) from
the oil tank. Clean and
reinstall t he fitting,
torquing to 25 ft. lbs.
Reattach the oil line.
NOTE: The fitting
threads must be sealed
with Loctitet PST 505 or
PTFE seal tape. The
fitting must also line up with
the mark (4) on the rear side of the oil tank.
1
2
3
4
To Next Page
