MAINTENANCE AND LUBRICATION
Lights -- Adjustment -- Replacement

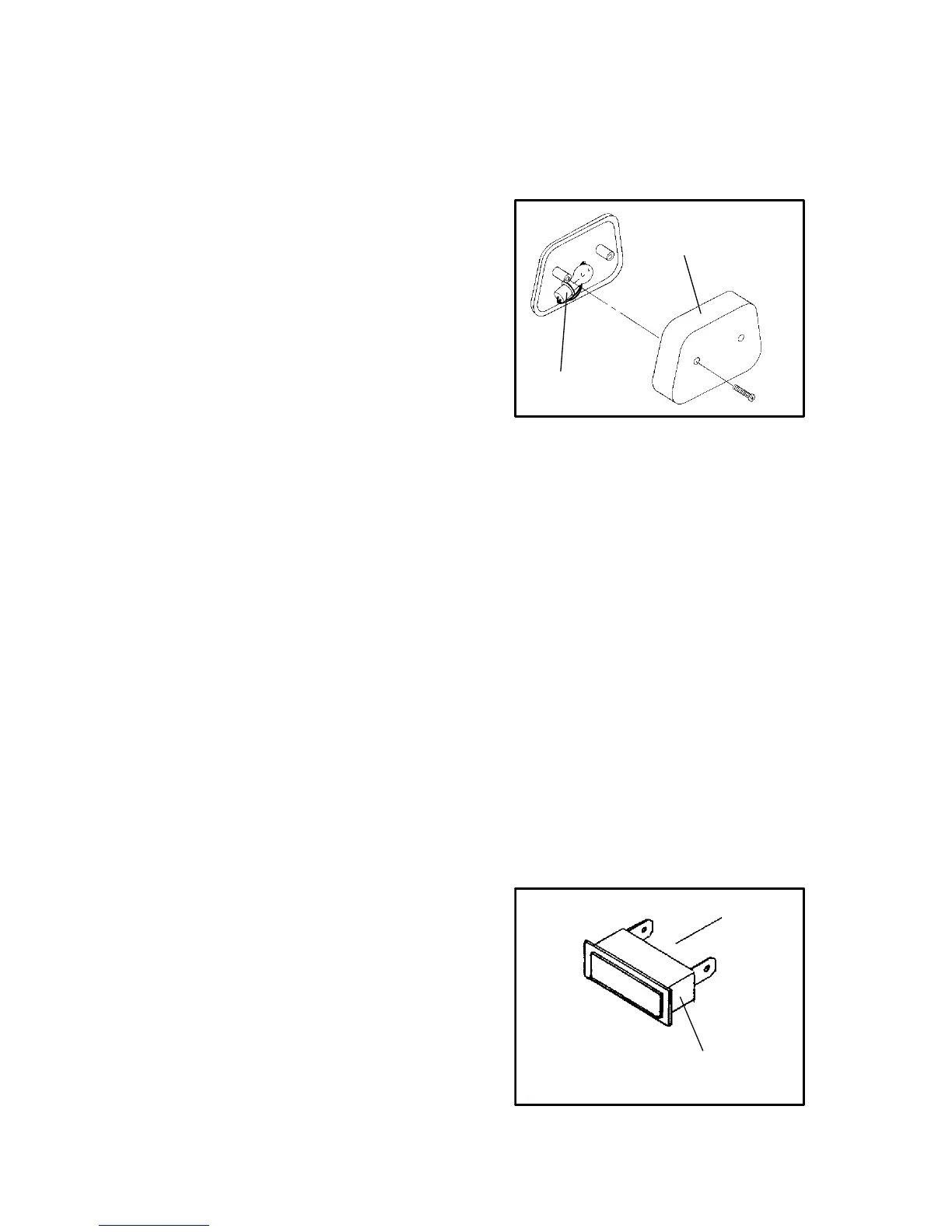

Taillig ht/Brakelight Lamp Replacement
If the taillight/brakelight does not
work the lamp may need to be
replaced.
1. Remove the taillight lense
cover mounting screws.
Remove the lense cover and
gasket and set aside for
reassembly.
2. Remove lamp (A) and replace
it with recommended lamp.
3. Test the taillight/brakelight to
see that it’s working.
4. Reinstall the gasket and lens
cove r (B) r emove d in step 1.
Indicator Lamp Replacement - Style I
1. Remove the upper headlight pod (Gen 4) or the front cover (Gen 2)
to access the back of the indicator panel.
2. Using a small, straight blade screwdriver, t urn the base of the bad
bulb 1/4 turn counter clockwise.
3. Use a needle nose plier or similar tool to pull the lamp out of the
indicator panel housing.
4. Insert the new bulb and seat it by turning it 1/4 turn clockwise.
5. Reassemble pod or front cover.
Indicator Lamp Replace-
ment - Style II
1. Remove mounting panel as
required.
2. Unplug light from harness,
depress locking tabs (C) and
remove from pod.
3. Install new light and
reassemble panel.
B
A
C
