Polaris AutoClear SC - Section 2. System Description; Product Specifications

Page 7
|
Polaris
®
AutoClear
®
SC (PAGSC20K) Salt Chlorinator - Installation and Operation
Manual
ENGLISH
Section 2. System Description

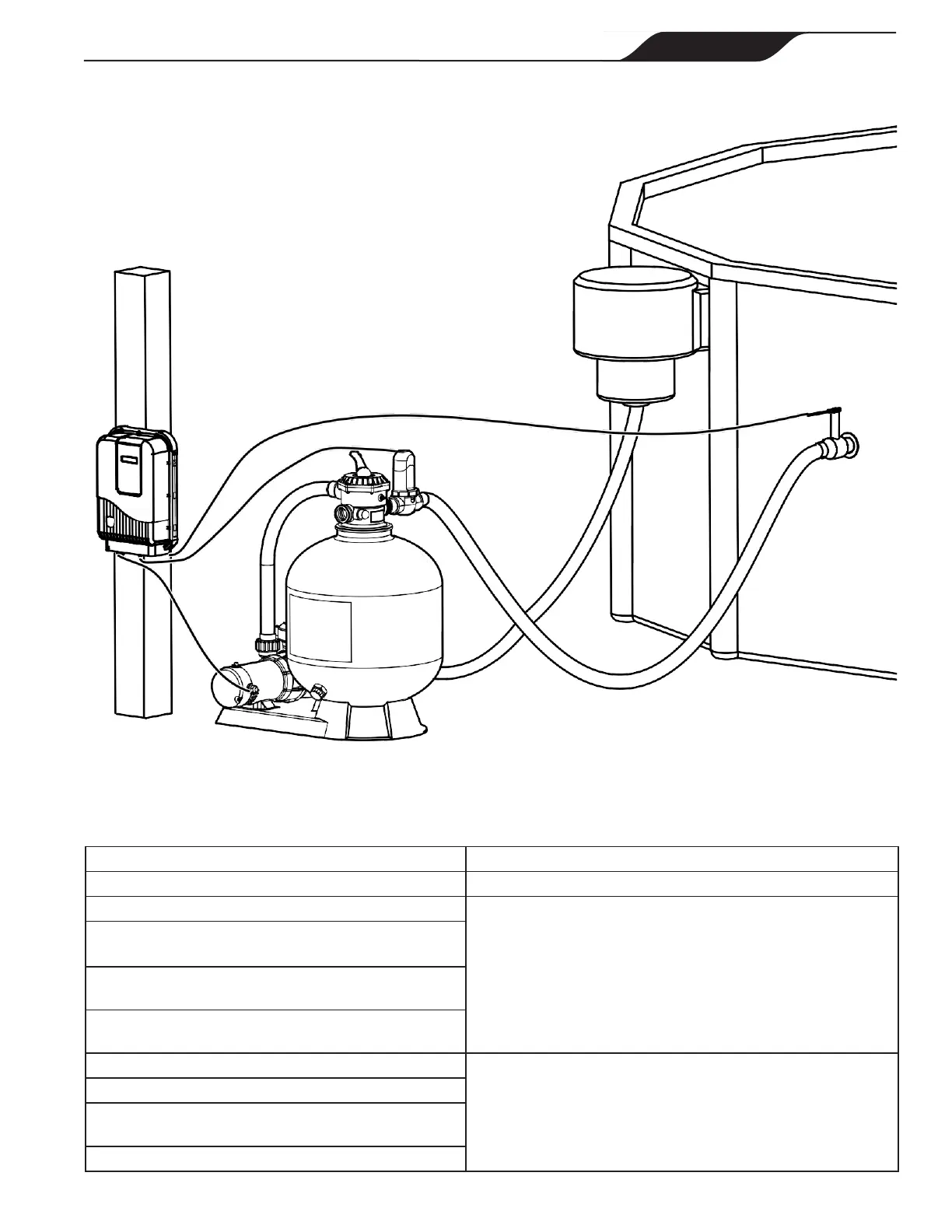

Figure 1. Example of Installation
2.1 Product Specifications
Maximum Operating Pressure: 35 psi
Output Voltage: 28V DC (max)
Minimum Flow Rate: 152 Lpm (40 gpm)
Output Current: 8A DC
Maximum Flow Rate: 348 Lpm (92 gpm)
Dimensions:
Power Pack (L x W x H):
25.4 cm x 11.4 cm x 33 cm (10 in. x 4.5 in. x 13 in.)
Electrolytic Cell (L x W x H):
16.5 cm x 14 cm x 30.5 cm (6.5 in. x 5.5 in. x 12 in.)
Maximum water volume treated:
132,000 L (35,000 gal.)
Chlorine Output: 0.400 kg (1.08 lbs.) per day
Required Salt Level: 3,250 ppm (3.0 gpl)
Input Voltage: 120 V
Weight:
Power Pack: 3.2 kg (7 lbs.)
Electrolytic Cell: 0.9 kg (2 lbs.)
Input Current @ 120 VAC, 12A (pump connected)
Input Current @ 120 VAC: ~2.5 A (salt cell and
flow switch connected)
Input Freq: 60 Hz
The cell must be installed horizontally as the last piece of equipment
in the circulation plumbing system just before the pool.
Power Center
Flow Switch
Cell
