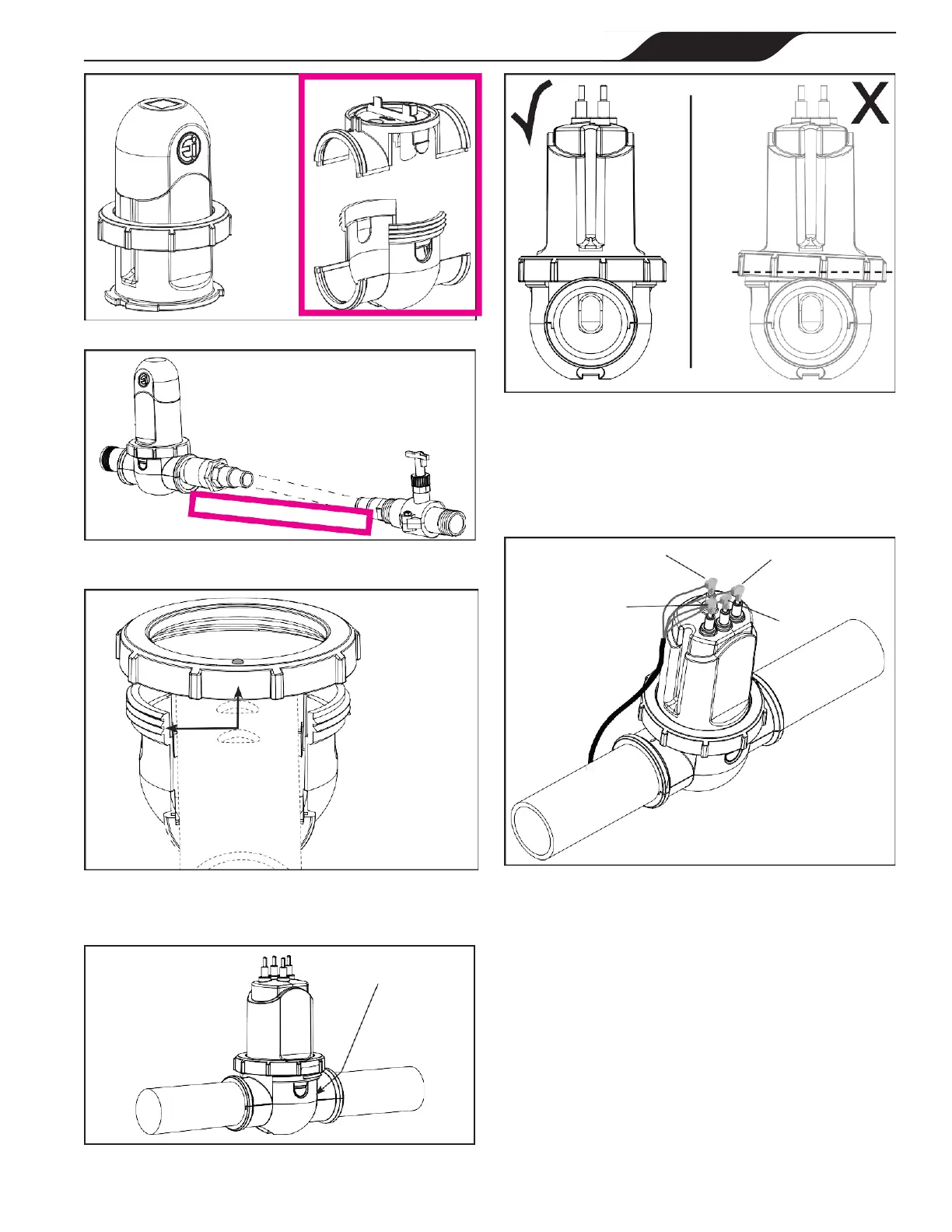

Figure 6. Disassemble the Cell
Figure 7. Water Flow
Figure 10. Locking Ring Level
2. Install the flow switch making sure the arrow on
the flow switch points in the direction of the water
flow. Make sure the switch is in line with the pipe.
3. Securely connect the cell leads to the like colored
terminals.
4. Attach the terminal cap.
Figure 8. Locking Ring Alignment
1. Screw down the locking ring to the threaded clamp
using the locking ring tool.
Figure 9. Locking Ring Tool
NOTE: Ensure the locking ring is level when engaging the
threading housing.
Figure 11. Connecting Cell Leads
5. Plug the pod connector into the power pack (see
Figure 20).
6. Attach one end of the bonding wire to the bonding
lug located on the bottom of the chassis backplate
on the power pack (see Figures 21 and 22).
7. Attach the second end to a common bonding point
such as the pool pump or heater. Make sure to
refer to the pump or heater manual for the location
of the bonding lug connection prior to making this
connection.
NOTE: Do not use the power pack as the common bonding
point. There should only be one bonding connection
to the power pack. Each piece of non-related pool
equipment requiring a ground should also be bonded to
the common, approved bonding point.
8. Plug the power pack into the electrical outlet. Turn
