CONCENTRIC VENT TERMINATIONS (100,000 - 150,000 BTU/HR)
For new installations, install 2” Concentric vent kit model
KGAVT0501CVT, part number 6910542. See Manufacturer’s
instructions for complete installation or call customer service at
1-800-456-9805 for assistance.
For planning purposes, see figures 10A-13A below for vent
terminal specifications.
Note: For replacement installations, previously installed
American Water Heater Company supplied concentric vent kits
are acceptable for use on 100,000-130,000 BTU/Hr models only.

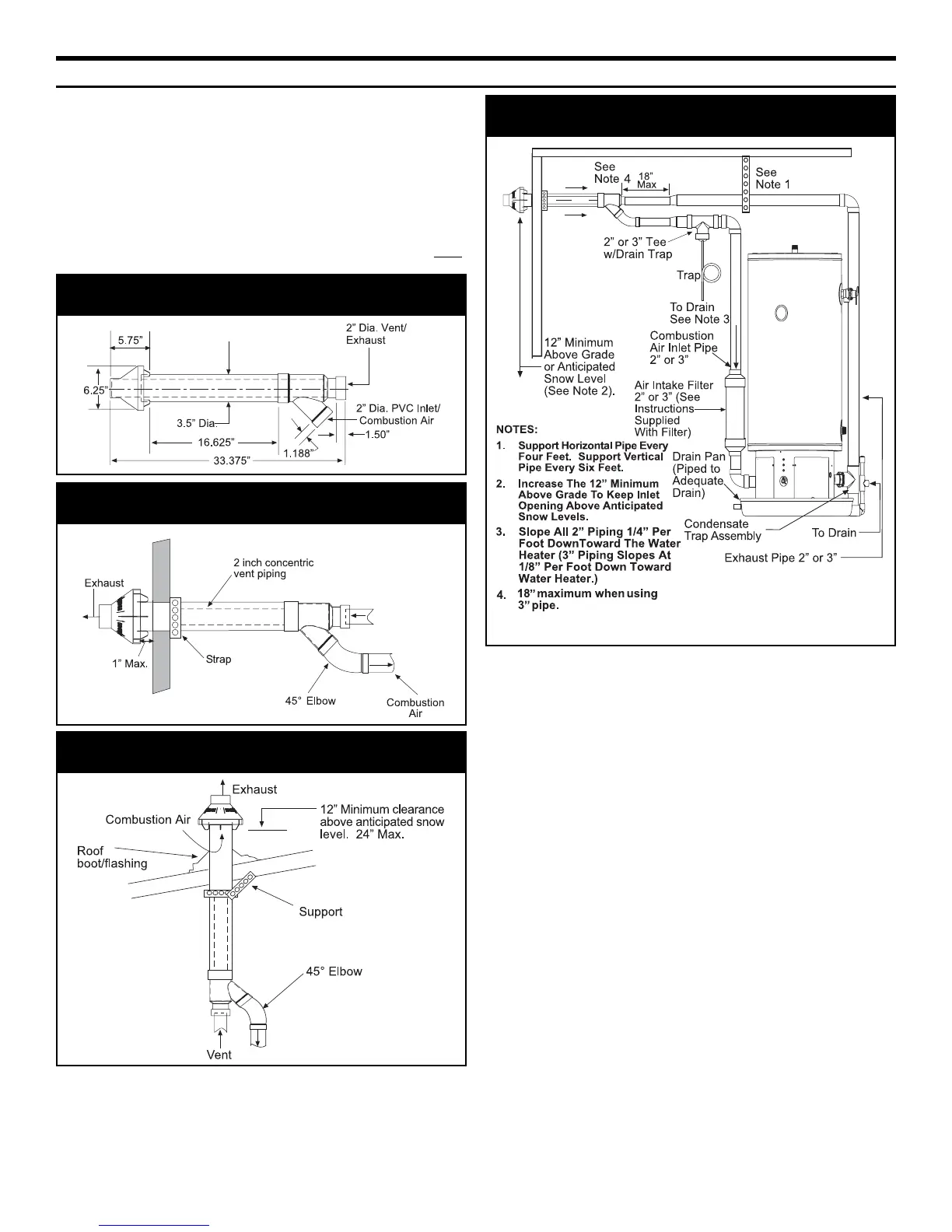

Figure 10A: 2 Inch Concentric Vent
Figure 11A: Through the Wall Termination
Figure 12A: Through the Roof Termination
Figure 13A: Through the Wall Termination
Note: For concentric venting terminations (all models), see
“Concentric Venting Multiple Water Heaters” on Page 14.
