29
SOFTWARE OPERATION SEQUENCE

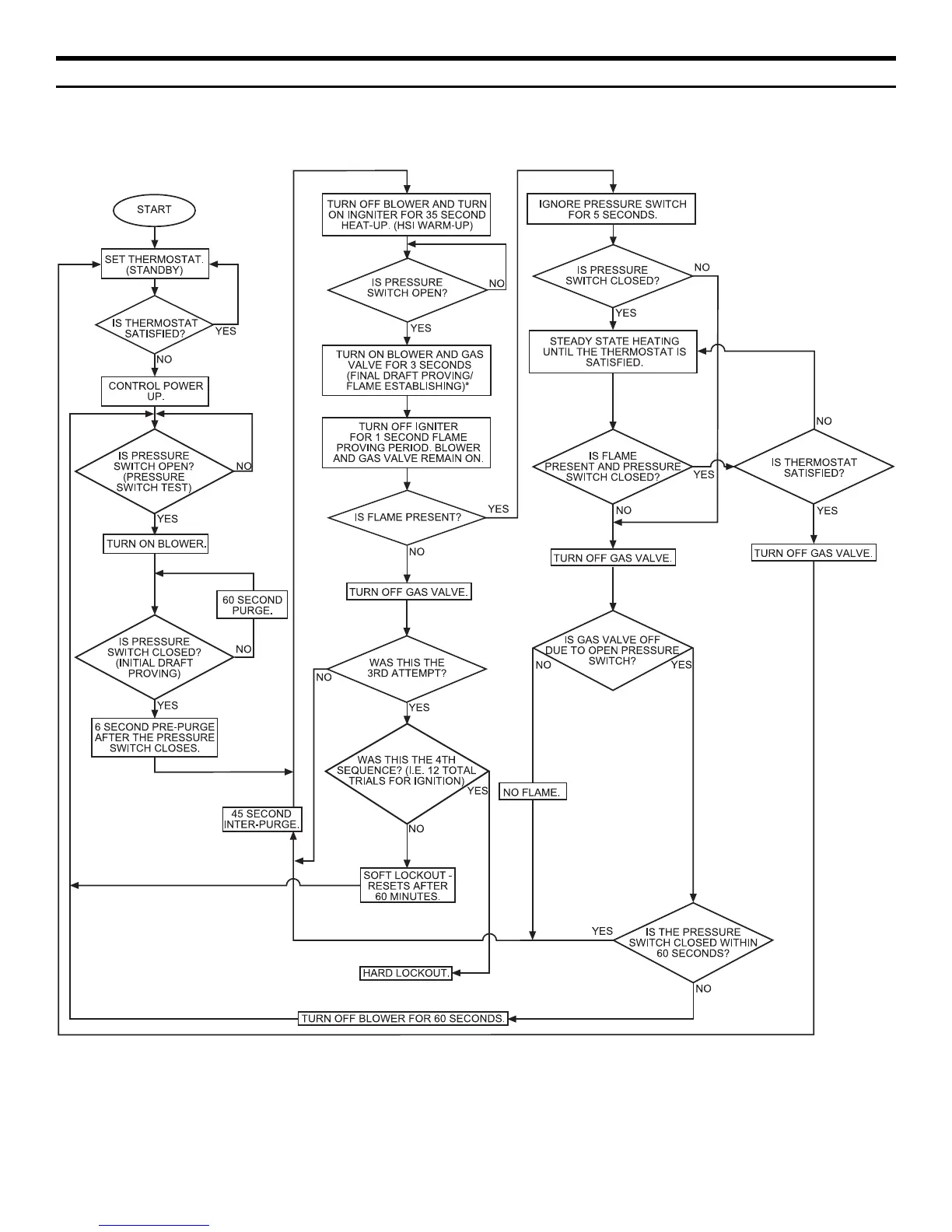

IGNITION CONTROL MODULE SOFTWARE OPERATION SEQUENCE
* For 175,000 BTU/Hr models and above the flame establishing period is six seconds. For the first 3 seconds the gas valve is off.
