CONCENTRIC VENT TERMINATIONS (175,000 + BTU/HR)

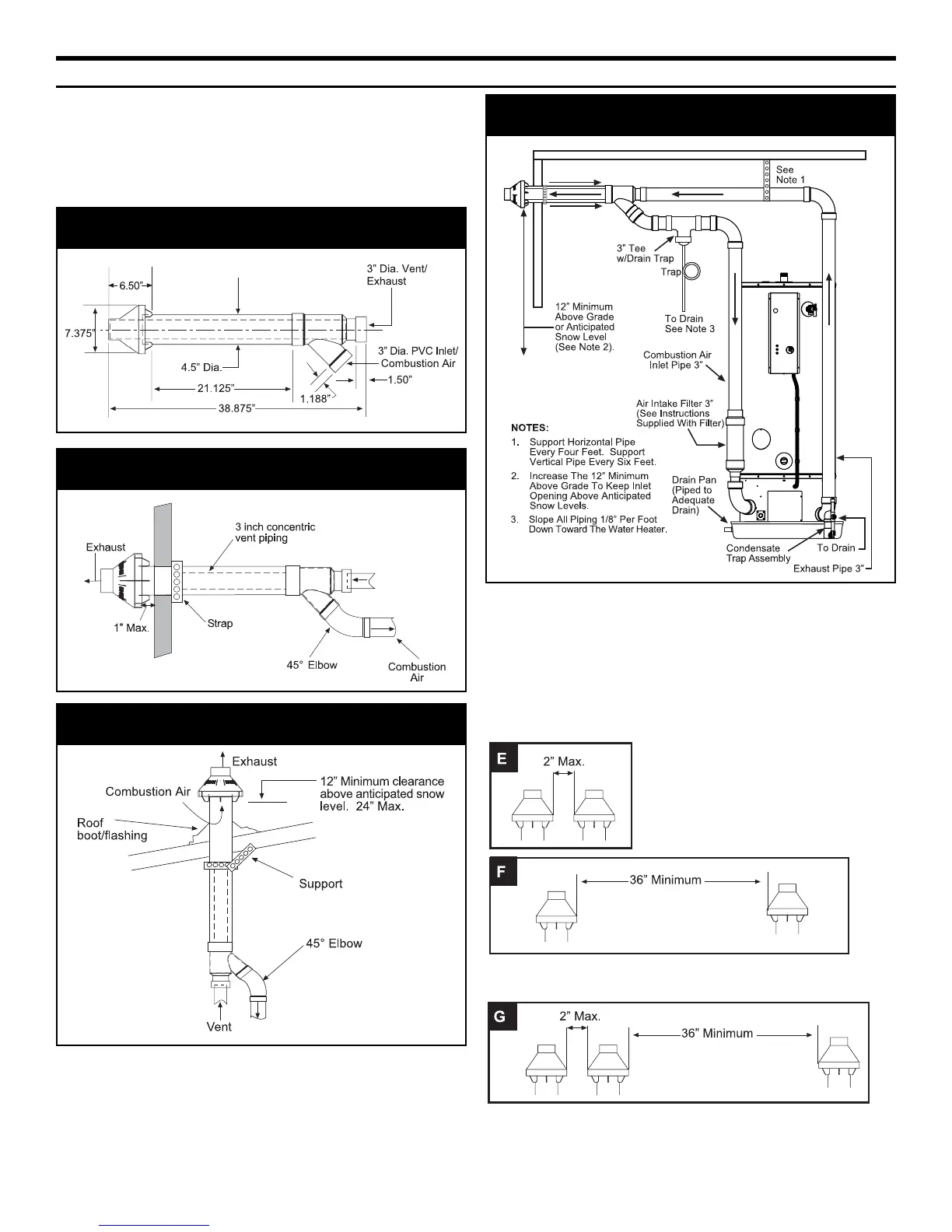

Figure 10B: 3 Inch Concentric Vent
For new installations, install 3” Concentric vent kit
model KGAVT0601CVT, part number 6910543. See
Manufacturer’s instructions for complete installation or call
customer service at 1-800-456-9805 for assistance.
For planning purposes, see figures 10B-13B below for vent
terminal specifications.
Figure 11B: Through the Wall Termination
Figure 12B: Through the Roof Termination
Figure 13B: Concentric Vent Piping Installation
Note: For concentric venting terminations (all models), see
“Concentric Venting Multiple Water Heaters” on Page 14.
Concentric Venting Multiple Water
Heaters (All Models)
When using two Polaris® units, install vent terminations
using either Method E or Method F below:
Note: For installation of more than two Polaris
®
units, fol-
low the pattern established in Method G.
*100 Gallon Model Shown.
