Instr 9927476 Rev 01 2016-11 Page 6 of 12

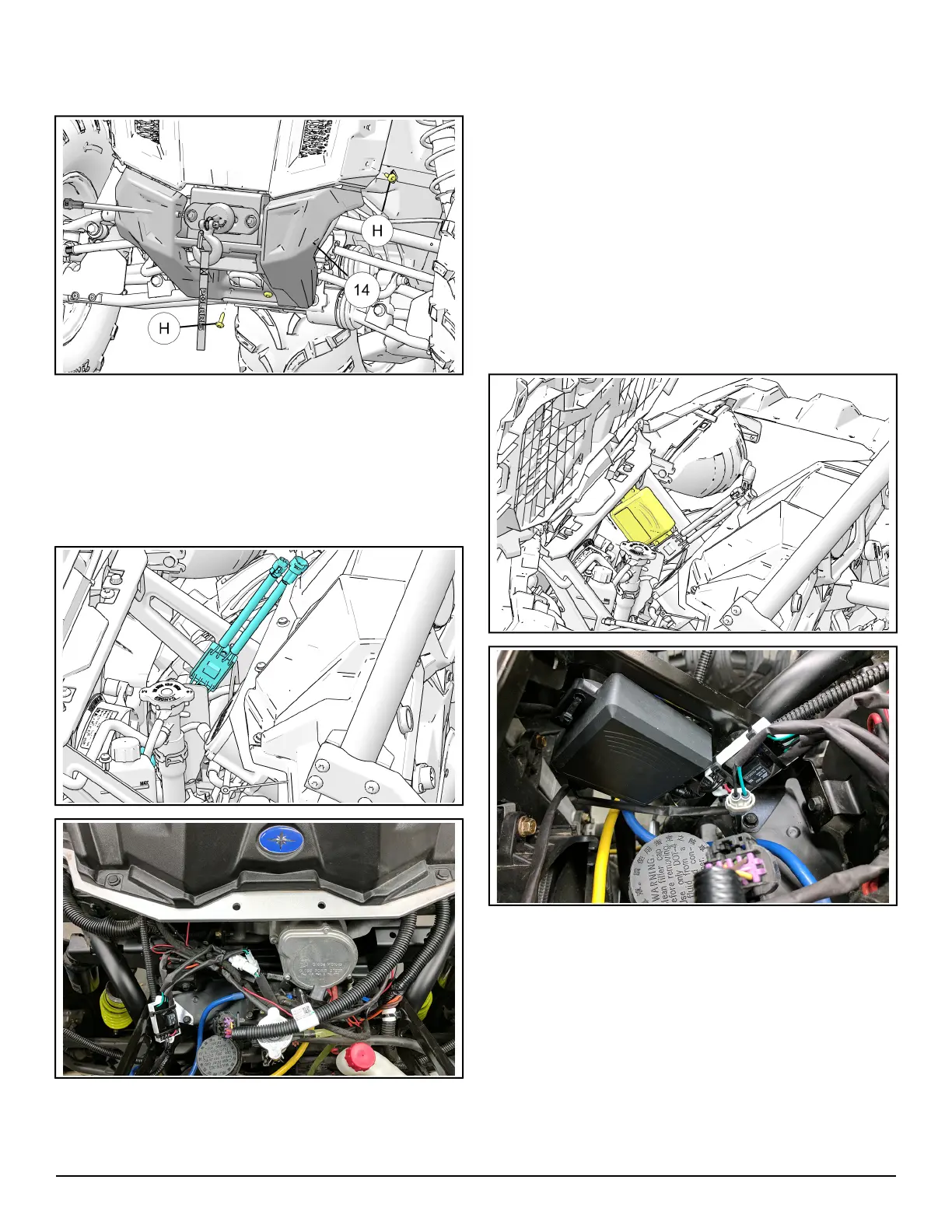

5. Install new winch cover
g
that was supplied with
your kit onto the vehicle using four screws
H
as
shown.
CONTROL BOX INSTALLATION
1. Position control box
r
on the right side of the
vehicle behind the radiator and fasten with the
supplied cable ties as shown below. Connect white
electrical connectors for the control box as seen in
the Electrical Connections Reference Guide
section of your instructions.
2. Route power wires from the control box to the bus
bar and connect red (or orange, depending on the
date your accessory kit was manufactured) power
wire to the orange, keyed power, terminal on the
vehicles bus bar. Route black (ground) wires from
the control box to the black (ground) terminal area
on the bus bar.
3. If you do not have a wireless remote kit with your
winch, use cable ties to secure all wires and
ensure that all power and ground connections are
securely fastened to the bus bar. If you have a
wireless remote kit, proceed to the next step.
WIRELESS REMOTE RECEIVER INSTALLATION
1. Mount wireless remote receiver onto radiator
support bracket using cable ties as shown.
