EFI COMPONENT LOCATIONS

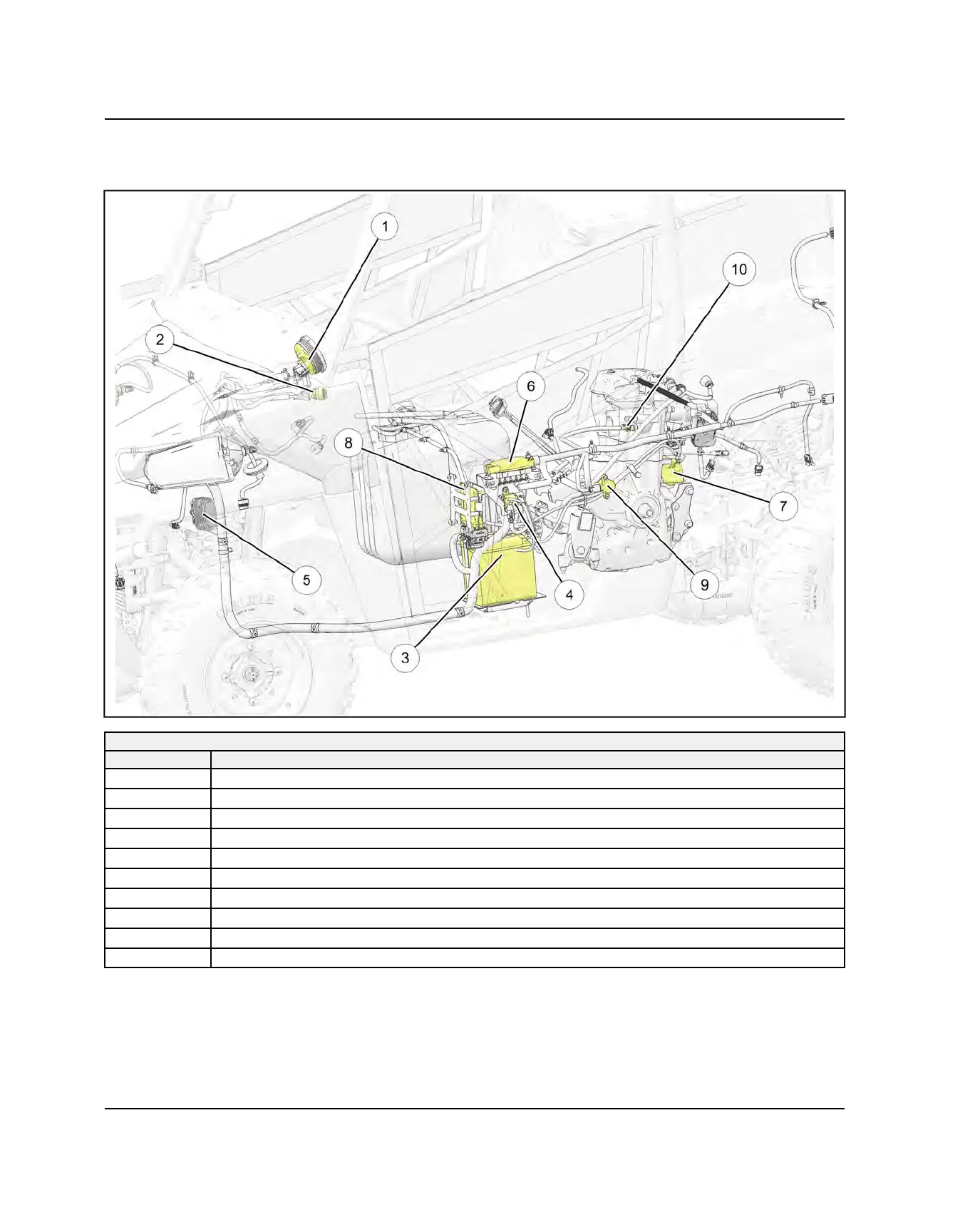

EFI COMPONENT LOCATIONS - LEFT VIEW
EFI COMPONENT LOCATIONS – LEFT VIEW
REF.
COMPONENT
1 Instrument Cluster
2 Ignition Switch
3 Battery
4
Starter Motor Solenoid
5
Regulator / Rectifier
6 Fuse / Relay Box
7
Starter Motor
8
ECU
9
Ignition Coil
10
Engine Temperature Sensor (ECT)
