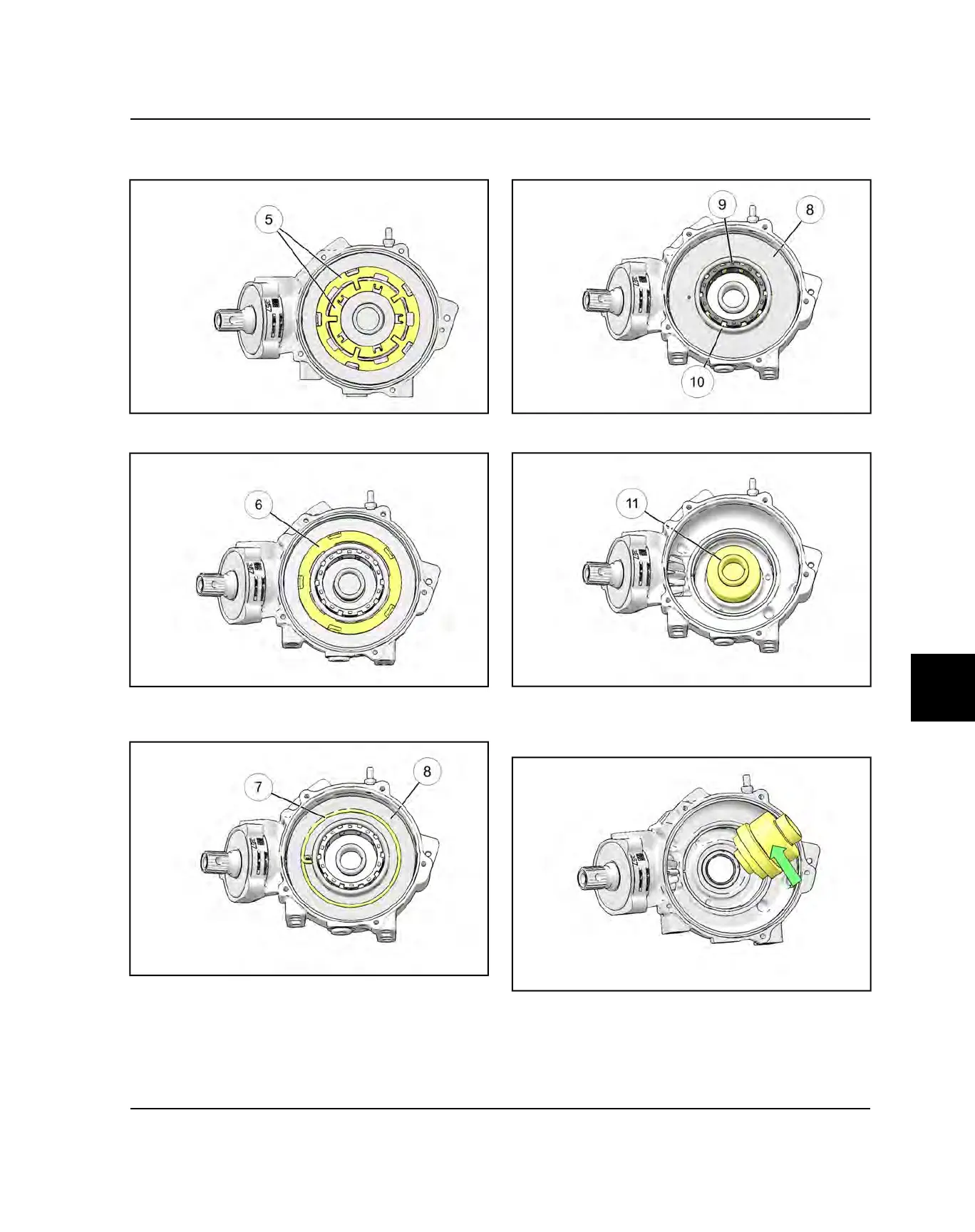

6. Remove and inspect the armature plates
t
. Refer to
“AWD Diagnosis” for detailed inspection process.
7. Remove the torsion spring retainer
y
.
8. Remove the torsion spring
u
from the top of the ring
gear
i
.
9. Remove the roll cage assembly
o
, rollers
a
, and
ring gear
i
. Inspect for wear.
10.Remove the LH output hub
s
.
11. Inspect the bearing and contact surfaces of the output
hub for signs of wear or damage. Replace component
if found to be worn or damaged.
FINAL DRIVE
