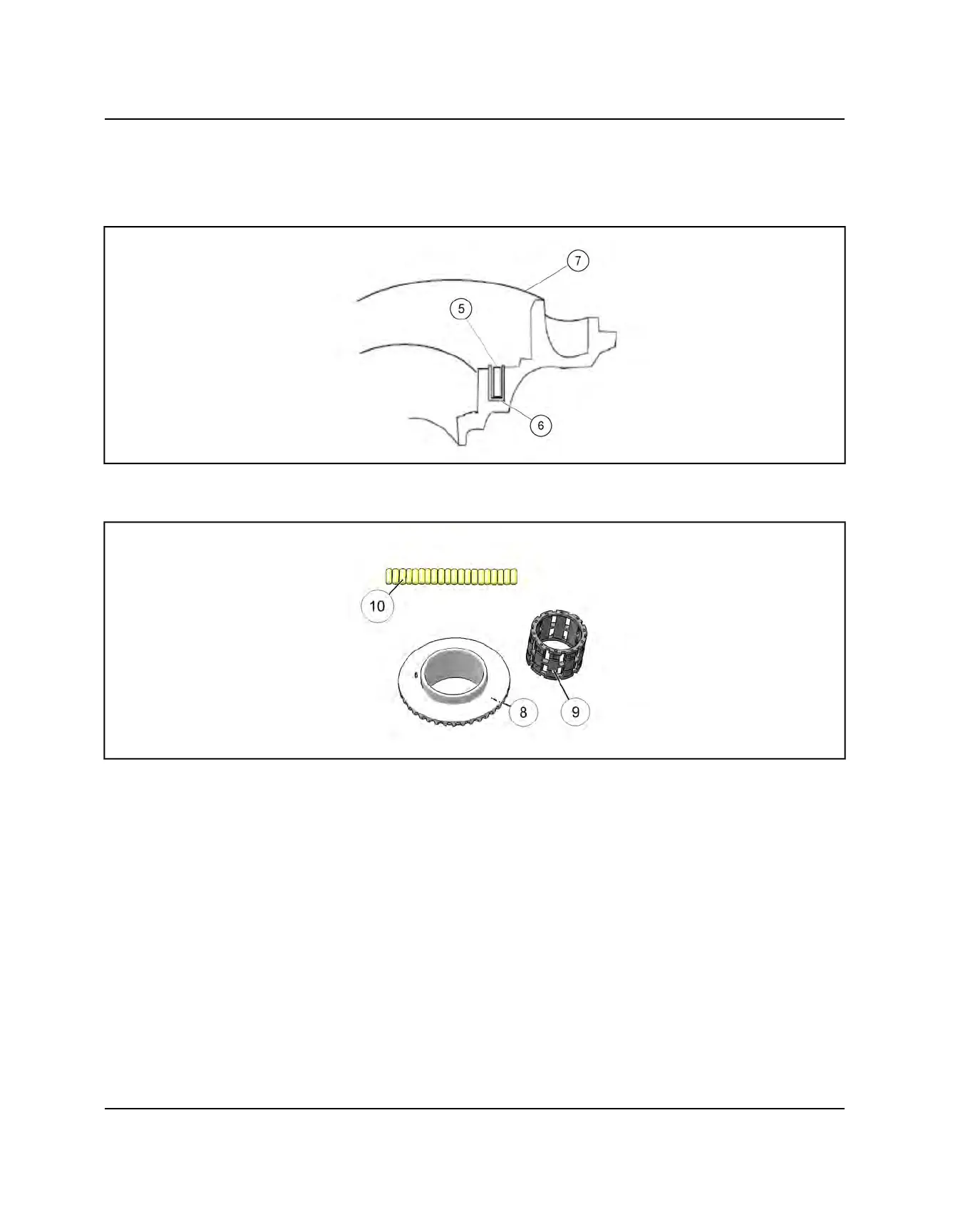

4. Check to make sure the coil
t
is seated in the U-shaped
y
insert that is pressed into the gearcase cover
u
. The
top of the coil should be seated below the U-shaped insert. The U-shaped insert controls the pole gap. If the top of
the coil is above the surface of the U-shaped insert it raises the armature plate, thereby increasing pole gap. If the
pole gap increases the coil will not be strong enough to engage the AWD system. If this is found, replace the cover
plate assembly.
5. Inspect the rollers for nicks, scratches, and flat spots. Also inspect the roll cage
o
for cracks and ensure the rollers
a
are able to slide up and down and in and out freely within the roll cage sliding surfaces.
