• EPS Relay (if equipped), controlled by the ignition
switch, provides power to the EPS unit.
EPS RELAY
FUSE
BOX
PIN
WIRE
COLOR OPERATION
3 Orange Relay coil 12v from R/S B+
Splice #2
4 Red
High side 12v from EPS fuse
7
Orange 12v output to EPS unit
8 Brown
Chassis ground #2

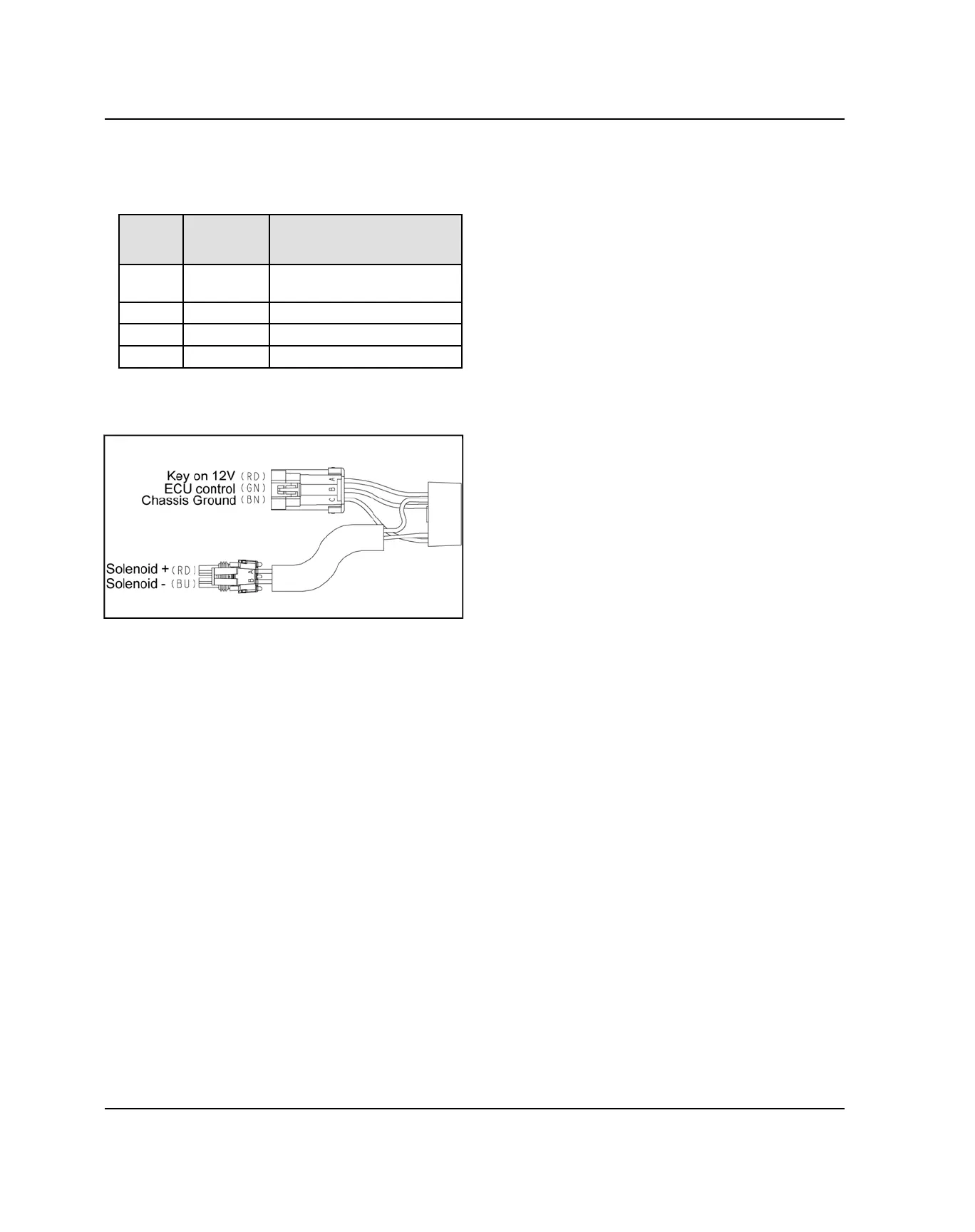

• Rear Differential Solenoid Relay, controlled by the
AWD/2WD/TURF switch and ECM, operates the
differential solenoid to unlock the rear end.
