9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
2.21

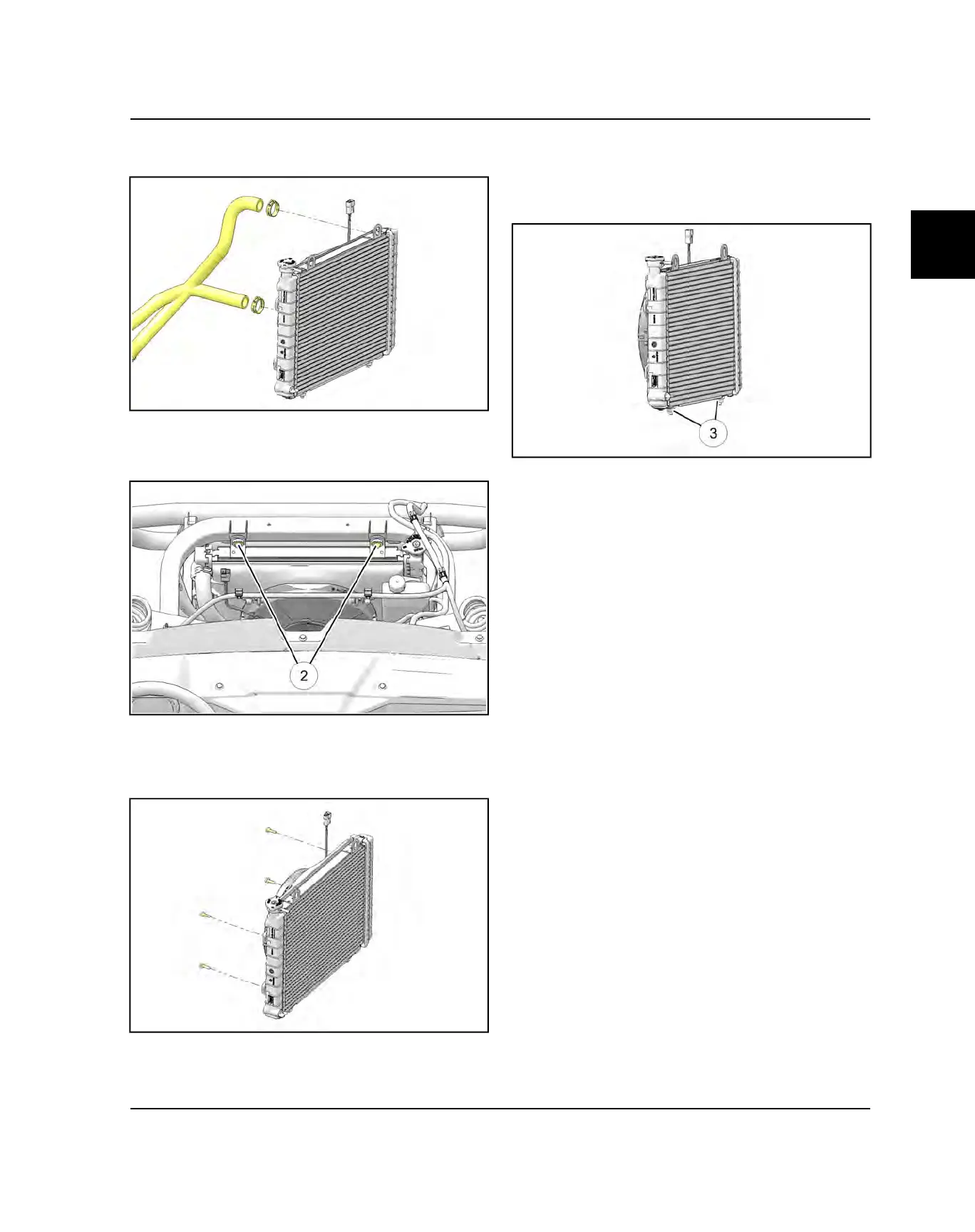

6. Remove the upper and lower coolant lines from the
radiator.
7. Remove the recovery bottle return line.
8. Remove the two mounting screws
w
that secure the
upper portion of the radiator to the frame.
9. Carefully lift the radiator straight up and out of the
vehicle. Take care not to damage the cooling fins.
10. Remove the four bolts that retain the fan motor and
shroud to the radiator.
Installation
11. Reverse previous procedures for installation.
12. Upon installation, be sure the lower radiator mounts
are placed properly in the frame support.
13. After the radiator is installed, verify the rubber
mounts
e
have remained in place.
14. After installation and reassembly, remove the
pressure cap and fill the radiator and recovery bottle
with coolant.
15. Refer to the cooling system bleeding procedure in
Chapter 3, under “Engine Installation Notes”.
MAINTENANCE
