9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual

3.67

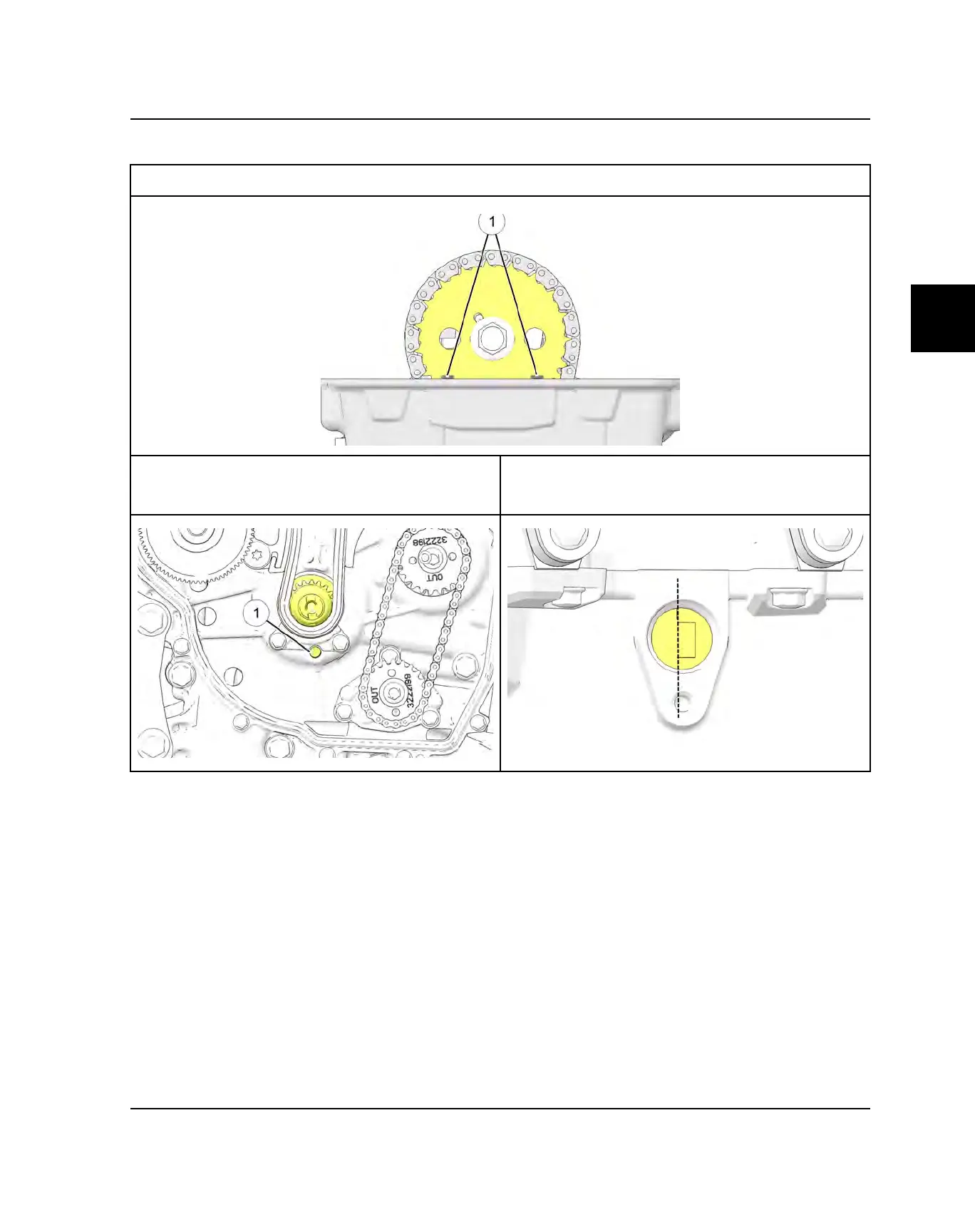

CAMSHAFT TIMING - QUICK REFERENCE

The camshaft sprocket should have notch marks

aligned with gasket surface.

Stator Cover/Flywheel Removed. Flywheel Key faces

down and insert a 1/4” drive socket extension through

the crankcase and into the crankshaft locating hole

Stator Cover/Flywheel Installed. “V” marked on the

flywheel is aligned with the CPS mounting hole.

ENGINE / COOLING SYSTEM
