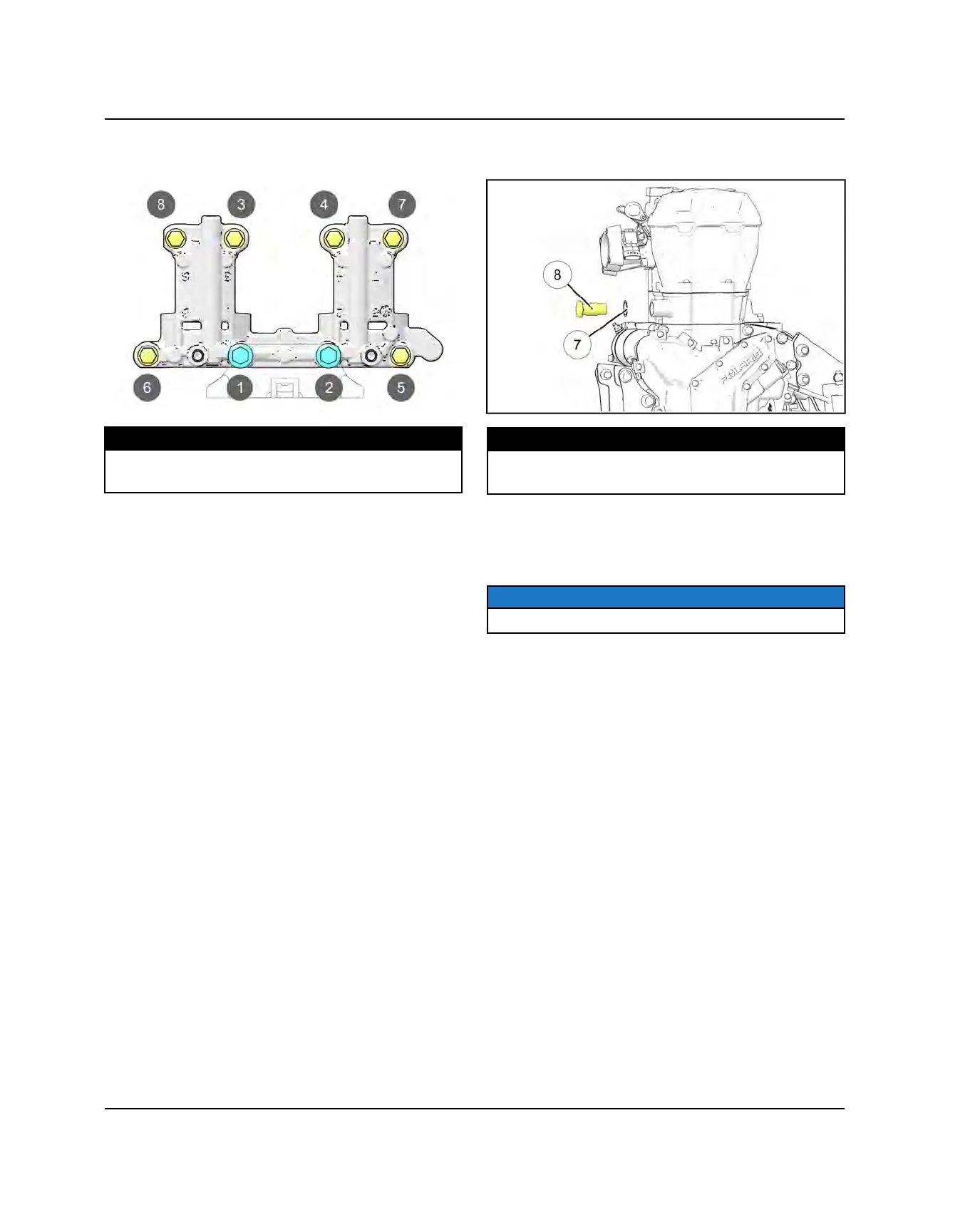

14. Torque the camshaft carrier bolts in sequence to
specification.
TORQUE
Camshaft Carrier Bolts:
7 ft-lbs (10 N·m)
15. Insure the new sealing washer
u
is in place.
16. Install the hydraulic cam chain tensioner
i
into the
cylinder and torque to specification.
TORQUE
Cam Chain Tensioner:
30 ft-lb (40 Nm)
17. Rotate crankshaft through two revolutions and verify
camshaft timing is correct.
18. Check the valve lash after tensioner installation and
two engine revolutions.
NOTICE
Verify the valve lash after rotating the engine.
