7.30
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.

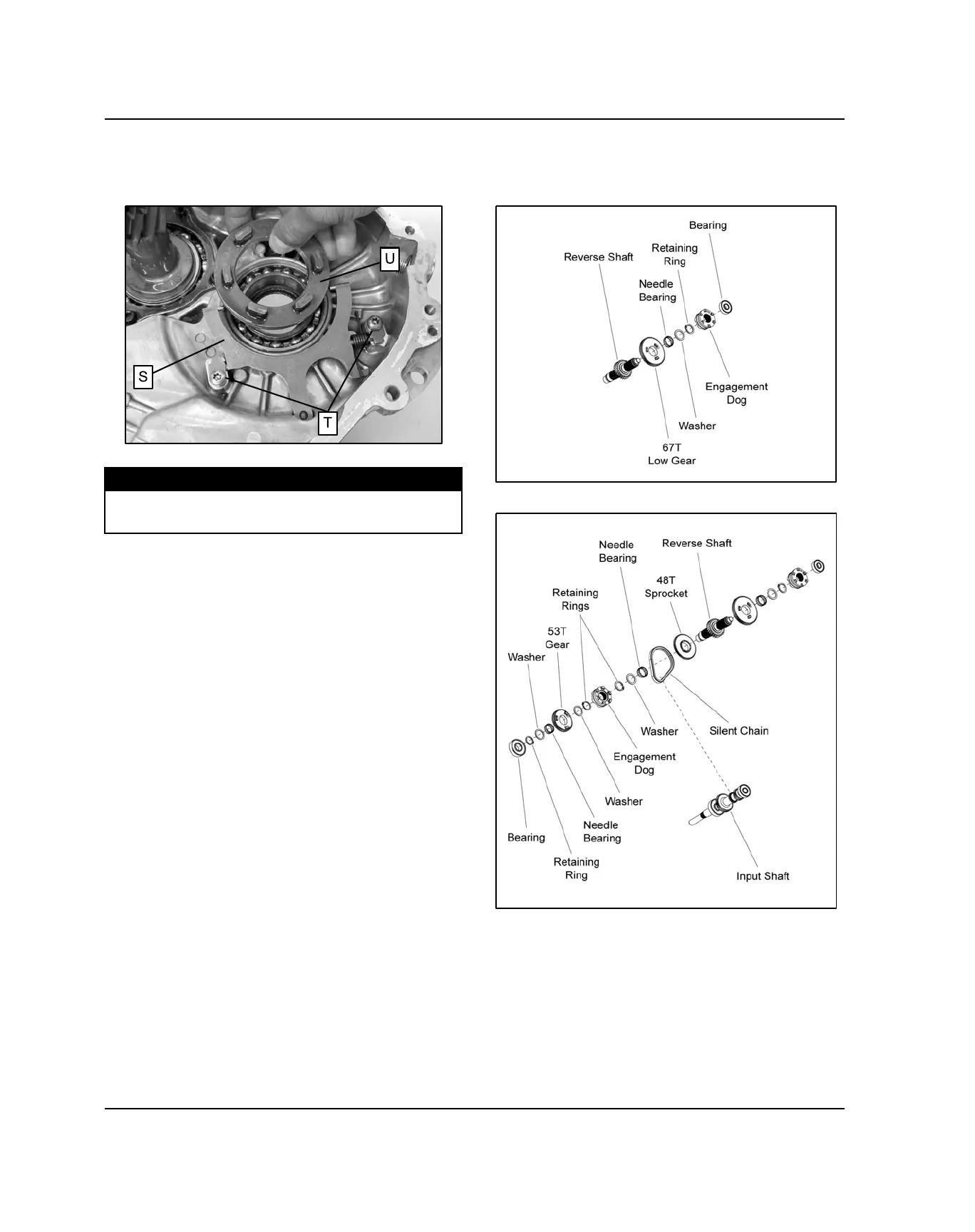

19. Apply Loctite
®
242™ to two screws (T) and install
with retaining plates over shift fork. Torque to
specification.
TORQUE
Shift Fork Screws:
10 ft-lbs (14 Nm)
20. Slide engagement dog (U) onto retaining pins of shift
fork.
21. Assemble the reverse shaft assembly and input shaft
assembly if previously disassembled (see
illustrations).
TRANSMISSION
