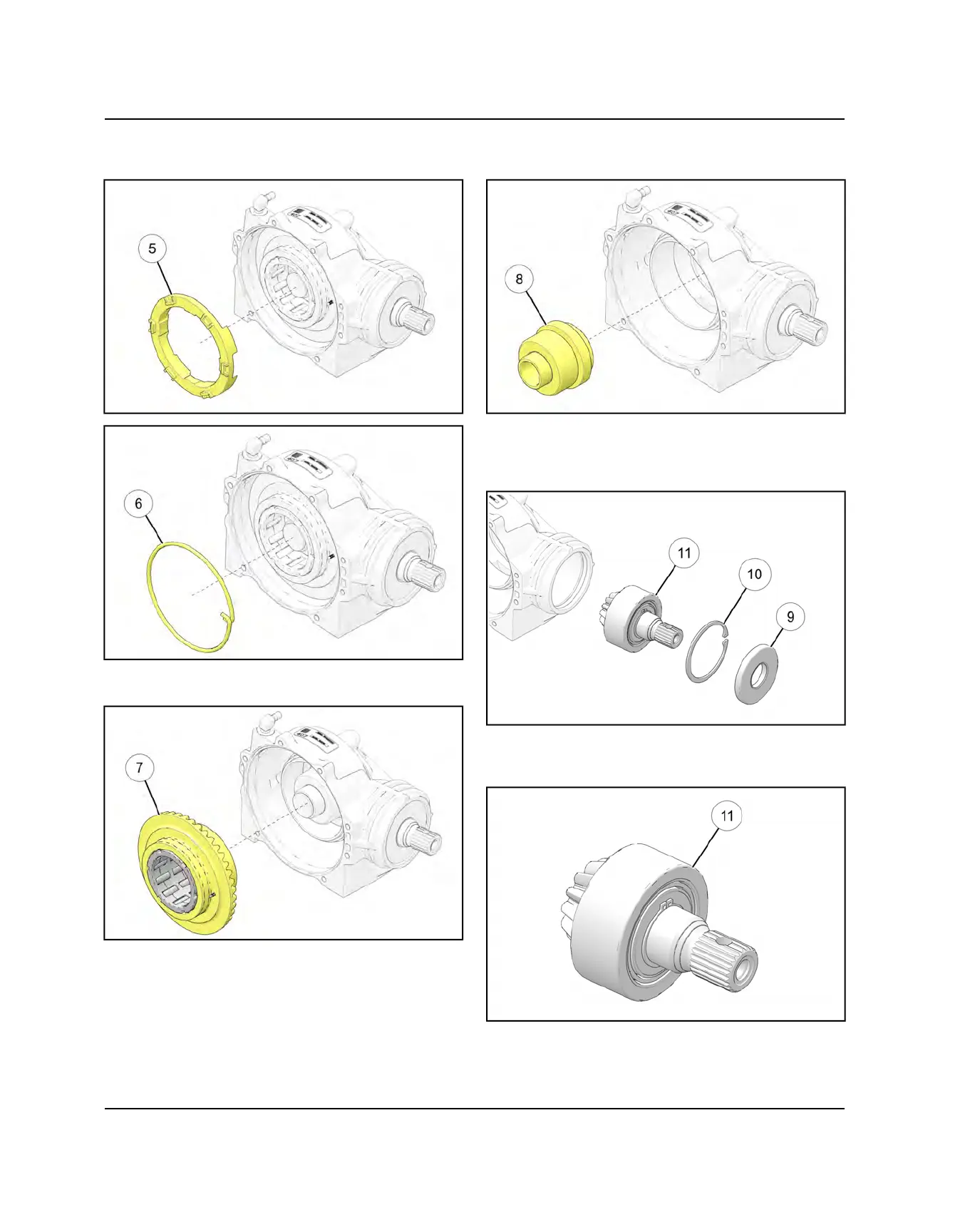

5. Remove the torsion spring retainer
t
and torsion
spring
y
from the top of the ring gear.
6. Remove the clutch housing / ring gear and roll cage
assembly
u
from the gearcase housing.
7. Remove the RH output hub assembly
i
from the
gearcase housing.
8. Remove pinion seal
o
, internal retaining ring
a
, and
pinion gear assembly
s
from the gearcase housing.
Inspect and clean the gearcase housing and replace
all oil seals and O-rings.
9. Inspect the pinion gear
s
for chipped, broken or
missing teeth. Inspect the pinion bearing for signs of
wear and the pinion shaft seal surface for pitting.
FINAL DRIVE
