8
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
8.29

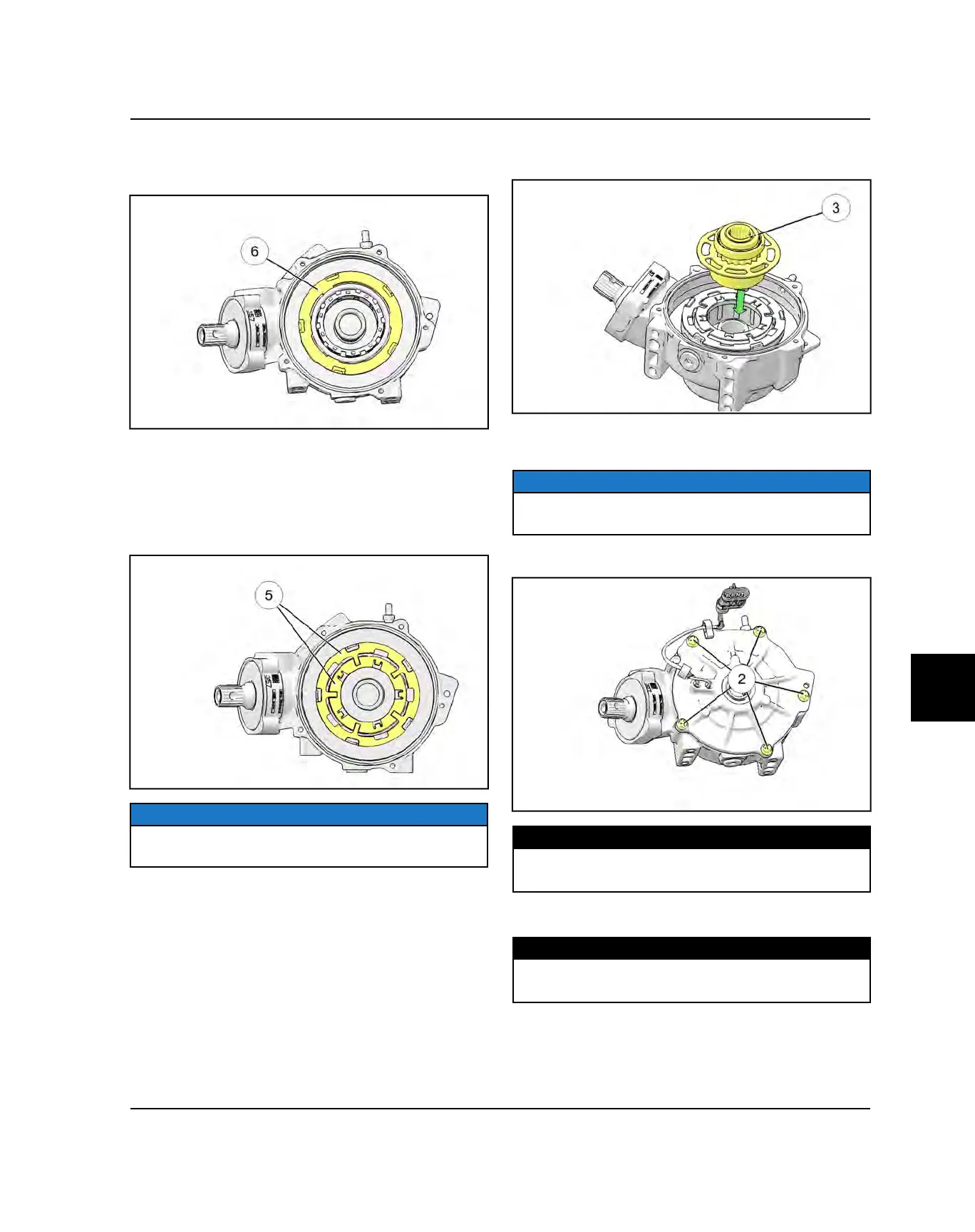

10.Align the spring retainer dowel pin with the ring gear
dowel pin and install the retainer
y
on top of the
torsion spring.
11. Check the action of the torsion spring by rotating in
both directions to ensure the spring and retainer are
installed properly.
12.Install the armature plates
t
. Be sure the armature
plate tabs are fully engaged into the roll cage
assembly.
NOTICE
Verify armature plate tabs are in the slots on the roll
cage and are resting in the ring gear grooves.
13.Install the RH output hub
e
into the gearcase
housing. The output hub should spin freely.
14.Install the cover plate assembly with a new o-ring
onto the gearcase.
NOTICE
Verify the square O-ring is placed flat on the cover
surface. If the O-ring is twisted, fluid leaks may occur.
15.Torque the cover plate bolts
w
to specification.
TORQUE
AWD Cover Screws:
8 ft-lbs (11 Nm)
16.Fill the gearcase with fluid.
FLUID CAPACITY
Polaris Demand Drive Fluid
8.97 oz. (265 ml)
FINAL DRIVE
