11.6
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.

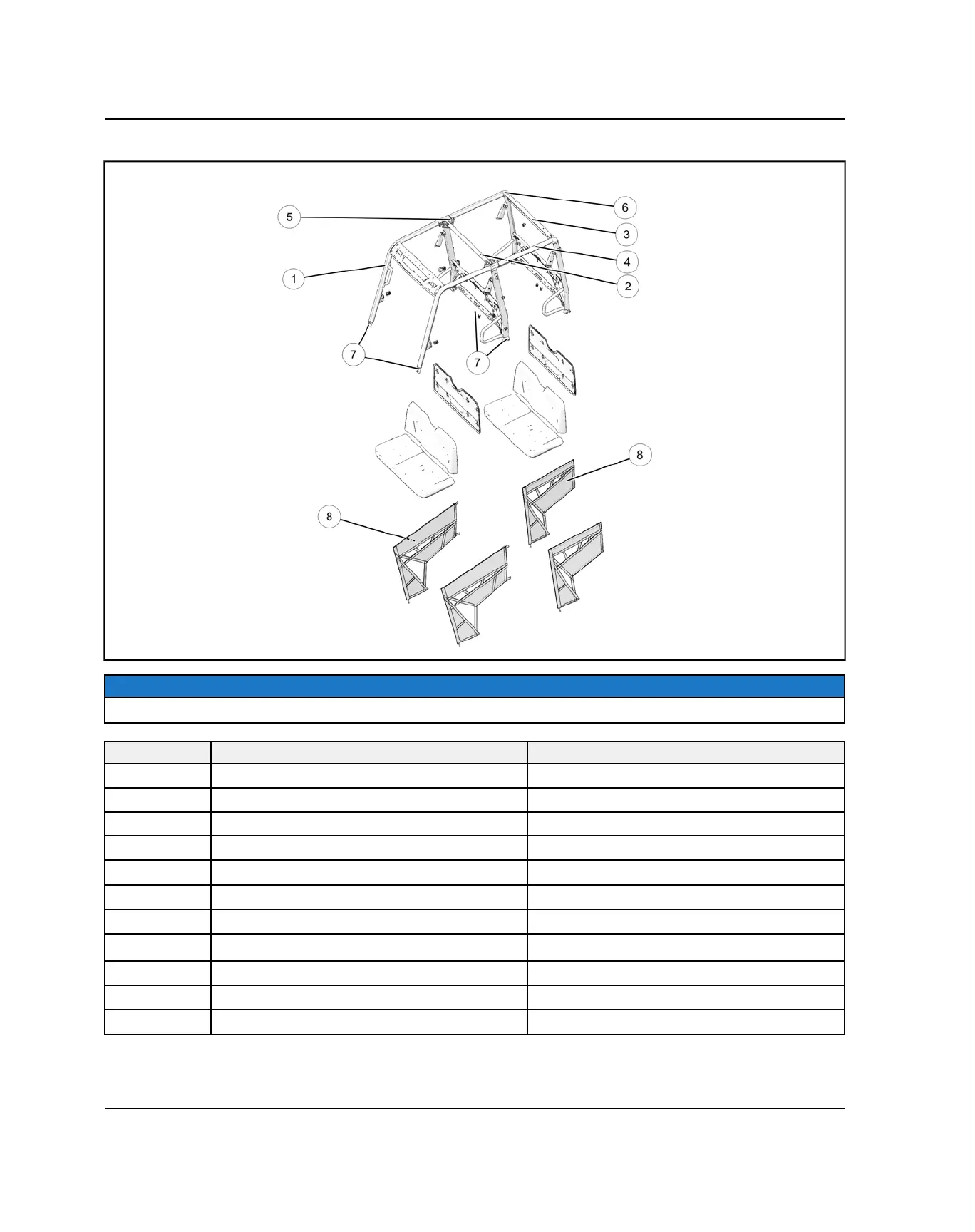

2017 CREW CAB FRAME ASSEMBLY VIEW
NOTICE
Image for reference only. 2016 cab frame shown. Refer to E-cat for an image of the 2017 cab frame.
REF.
DESCRIPTION NOTES
q
Front Cab Frame
w
Middle Cab Frame
e
Rear Cab Frame
r
Cab Frame Brace
t
Screws Torque to 36 ft-lbs (48 Nm)
y
Screws Torque to 36 ft-lbs (48 Nm)
u
Screws Torque to 36 ft-lbs (48 Nm)
Nut
Used with part
u
on 2017 cab frames
i
Nets - Door
Net Rod Mounts (Not Shown)
Screw (Used to fasten Net Rod Mounts) Torque to 8 ft-lbs (11 Nm)
BODY / FRAME
