9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual

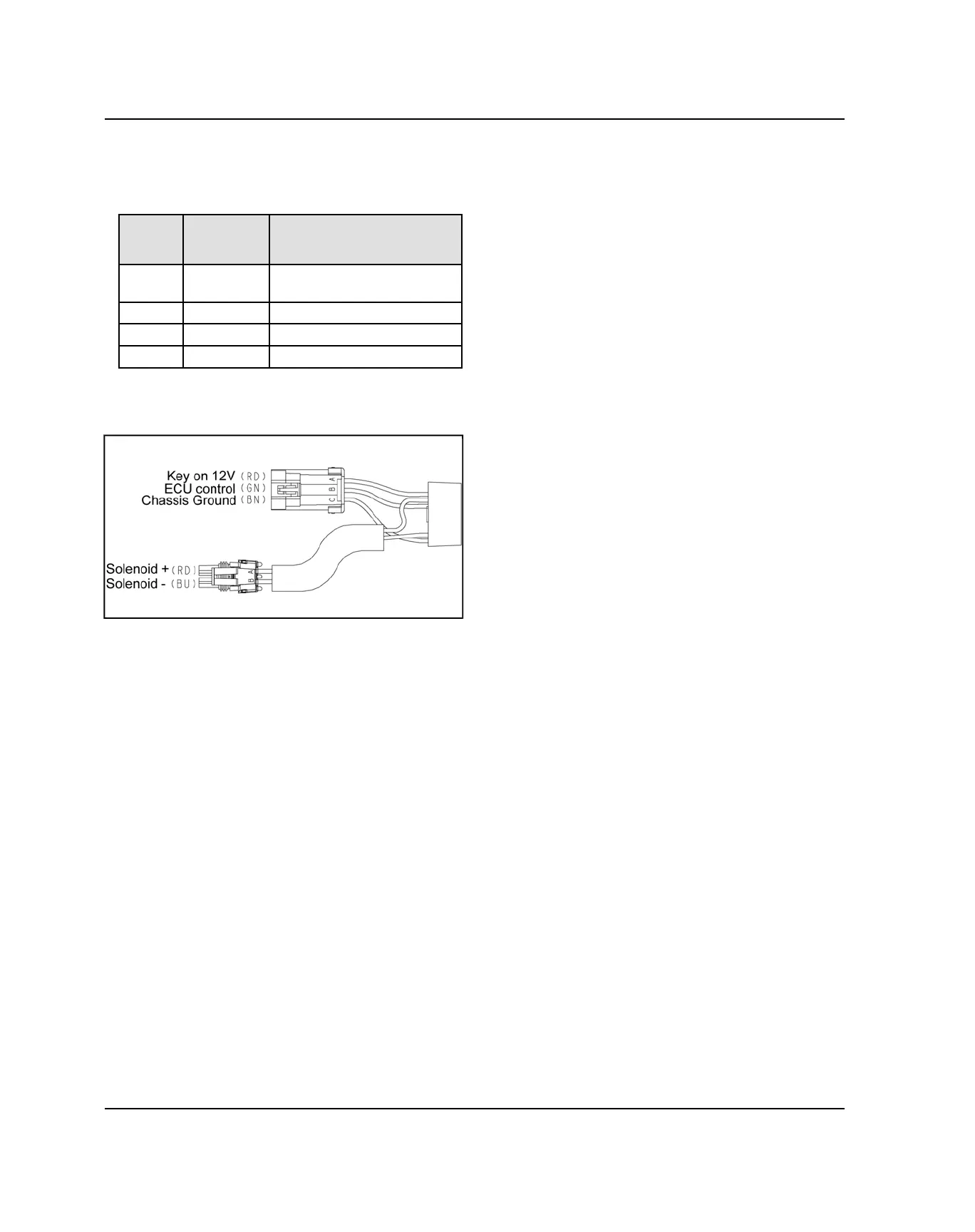

• EPS Relay (if equipped), controlled by the ignition

switch, provides power to the EPS unit.

EPS RELAY

FUSE

BOX

WIRE

COLOR OPERATION

3 Orange Relay coil 12v from R/S B+

Splice #2

4 Red

High side 12v from EPS fuse

Orange 12v output to EPS unit

8 Brown

Chassis ground #2

• Rear Differential Solenoid Relay, controlled by the

AWD/2WD/TURF switch and ECM, operates the

differential solenoid to unlock the rear end.
