RIDER INFORMATION CENTER

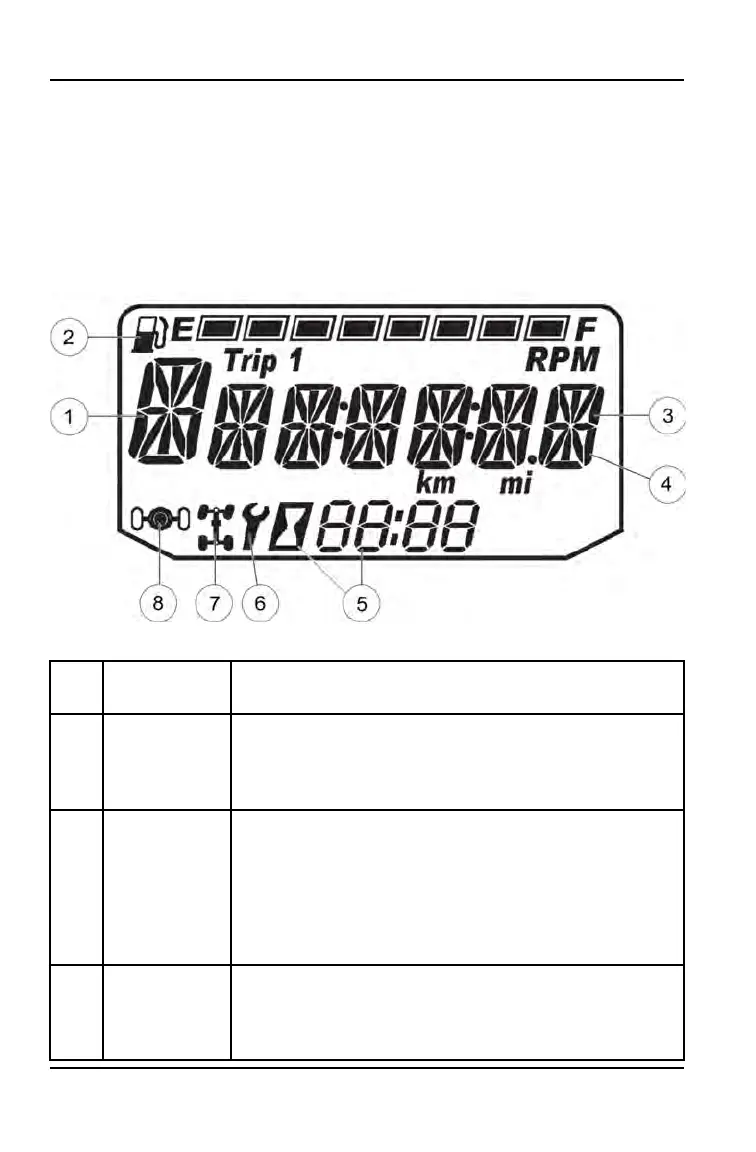

The rider information center is located in the instrument cluster. All segments will
light up for one second at start-up. If the instrument cluster fails to illuminate, a
battery over-voltage may have occurred and the instrument cluster may have
shut off to protect the electronic speedometer. If this occurs, your dealer can
provide proper diagnosis.
The information center is set to display standard units of measurement and a
12-hour clock at the factory.
q
Gear
Indicator
This indicator displays gear shifter position.
w
Fuel Gauge The segments of the fuel gauge show the level of fuel
in the fuel tank. When the last segment clears, a low
fuel warning is activated. All segments including the
fuel icon will flash. Refuel immediately.
e
Information
Display Area
This area displays the following mode options in this
order: odometer, trip meter, tachometer, engine
temperature, engine hour meter, service hour interval,
and error codes. Cycle through these modes using the
mode button. When the vehicle is restarted, this area
will display the last mode you were using, rather than
starting over at the odometer.
r
Battery
Under / Over
Voltage
This warning indicates the vehicle is operating at an
RPM too low to keep the battery charged or if the
engine is at idle and a high electrical load (lights,
cooling fan, accessories) is applied.
