BELT REMOVAL/DEBRIS REMOVAL
If a belt fails, always clean any debris from the clutch air duct and from the clutch
and engine compartments when replacing the belt.
WARNING
Failure to remove ALL debris when replacing the belt could result in vehicle
damage, loss of control and severe injury or death.
To replace the belt, do the following:
1. Position the vehicle on a level surface. Place the transmission in park.
2. Lift the cargo box.

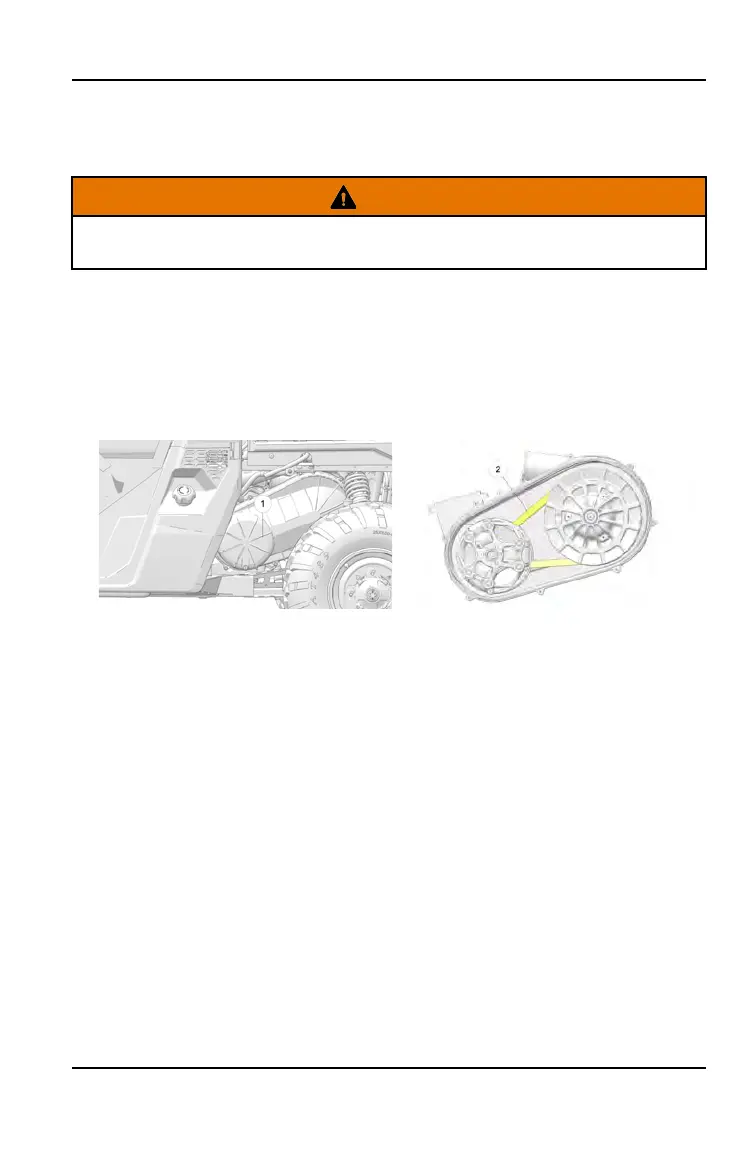

3. Remove the eight (8) fasteners securing the clutch cover
q
. Each fastener
can be removed using a 8mm socket with ratcheting wrench and extension.
4. Pull the bottom of the cover outward and over the suspension to remove it.
5. Make sure the cover gasket does not fall out of the groove when removing
the cover.
6. Mark the drive belt direction of rotation so that it can be installed in the same
direction.
121
MAINTENANCE
To Next Page
