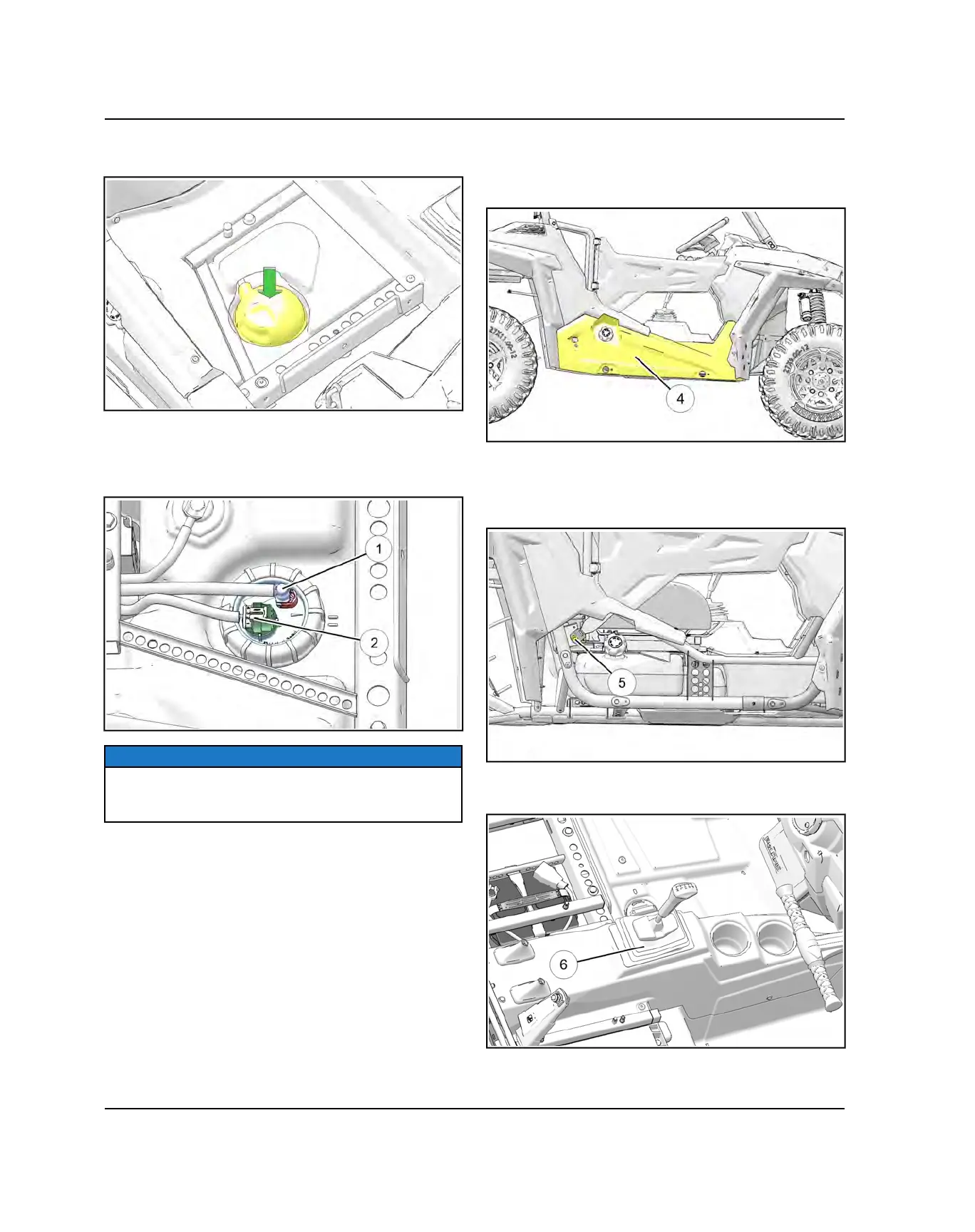

4. On S 1000 models only, remove the rubber fuel pump
cover.
5. While holding a shop towel over the fuel line
connectors, disconnect the fuel supply line
q
from
the pump. (see Chapter 4 – Fuel Line Removal /
Installation page 5.19 .
NOTICE
A small amount of fuel may come out of the fuel lines or
pump fittings. Properly drain fuel into a suitable
container.
6. Disconnect the fuel pump electrical harness
w
.
7. Remove the push rivets and Torx screws retaining the
right rocker panel
r
using the multi-function pliers
and a T40 Torx bit. Remove the rocker panel from the
vehicle.
8. Remove the fastener
t
retaining the seat belt
mechanism to the frame near the right rear portion of
the fuel tank. Once removed, place the mechanism in
the rear cargo box to keep out of the way.
9. Push the shifter boot
y
so it is no longer attached to
the console. Remove the console from the vehicle.
