9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
5.21

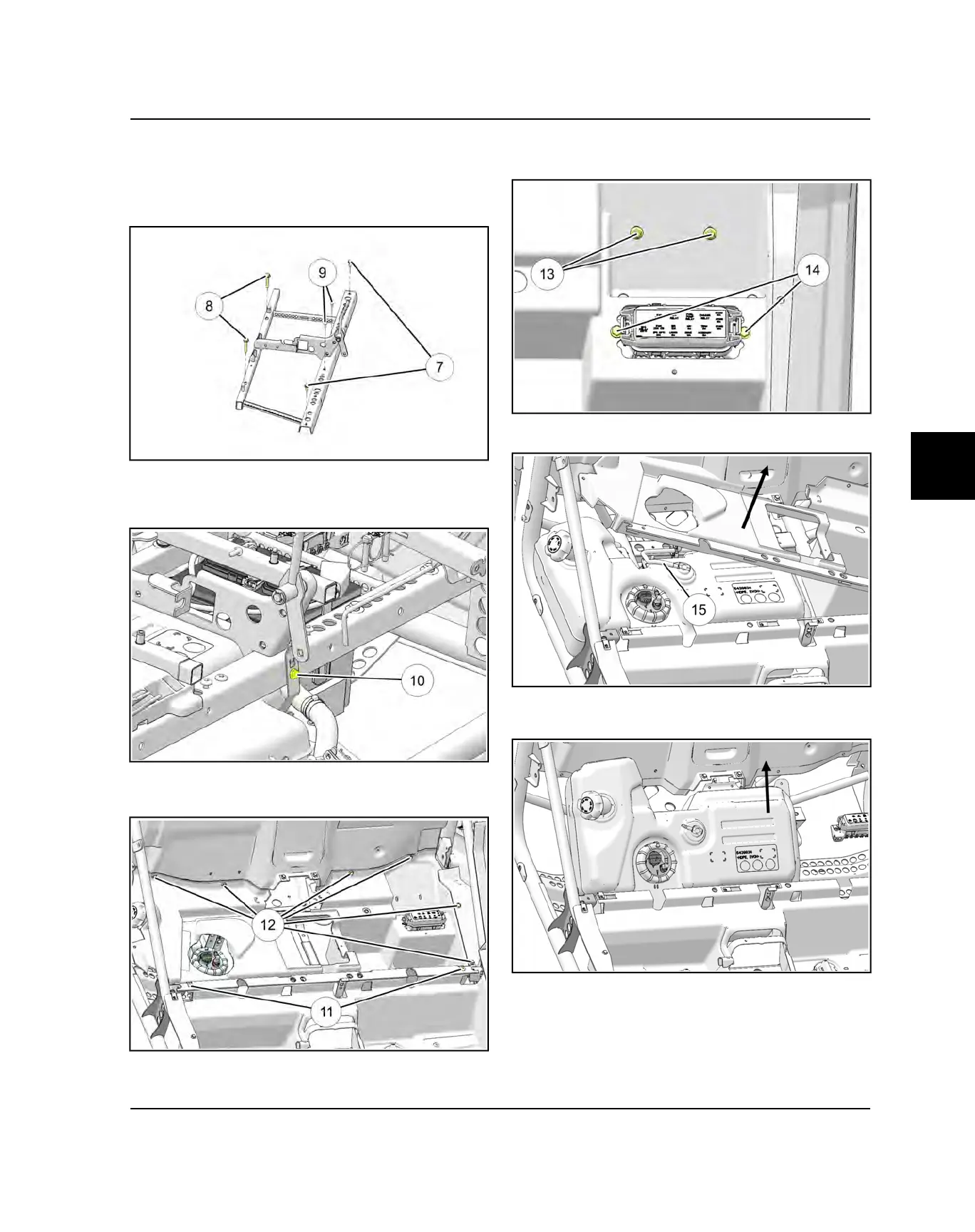

10.Remove the two bolts
u
retaining the front and two
rear bolts
i
retaining the rear of the seat base frame.
Remove the two T40 Torx screws
o
retaining the
front of the seat base frame. Remove the rear seat
base assembly from the vehicle.
11. Remove the T40 Torx screw
a
retaining the fuel tank
strap to the seat base frame. Remove the strap from
the other side of the seat base frame.
12.Remove the Torx screws
s
and plastic rivets
d
retaining the block-off panel using a T40 Torx bit.
13.Remove the nuts
f
retaining the regulator and Torx
screws
g
retaining the fuse box.
14.Remove the fuel tank vent line
h
from the tank fitting
15.Lift the rear of the fuel tank up first. Carefully pull the
fuel tank out of the vehicle.
FUEL SYSTEM
