9
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
9.29

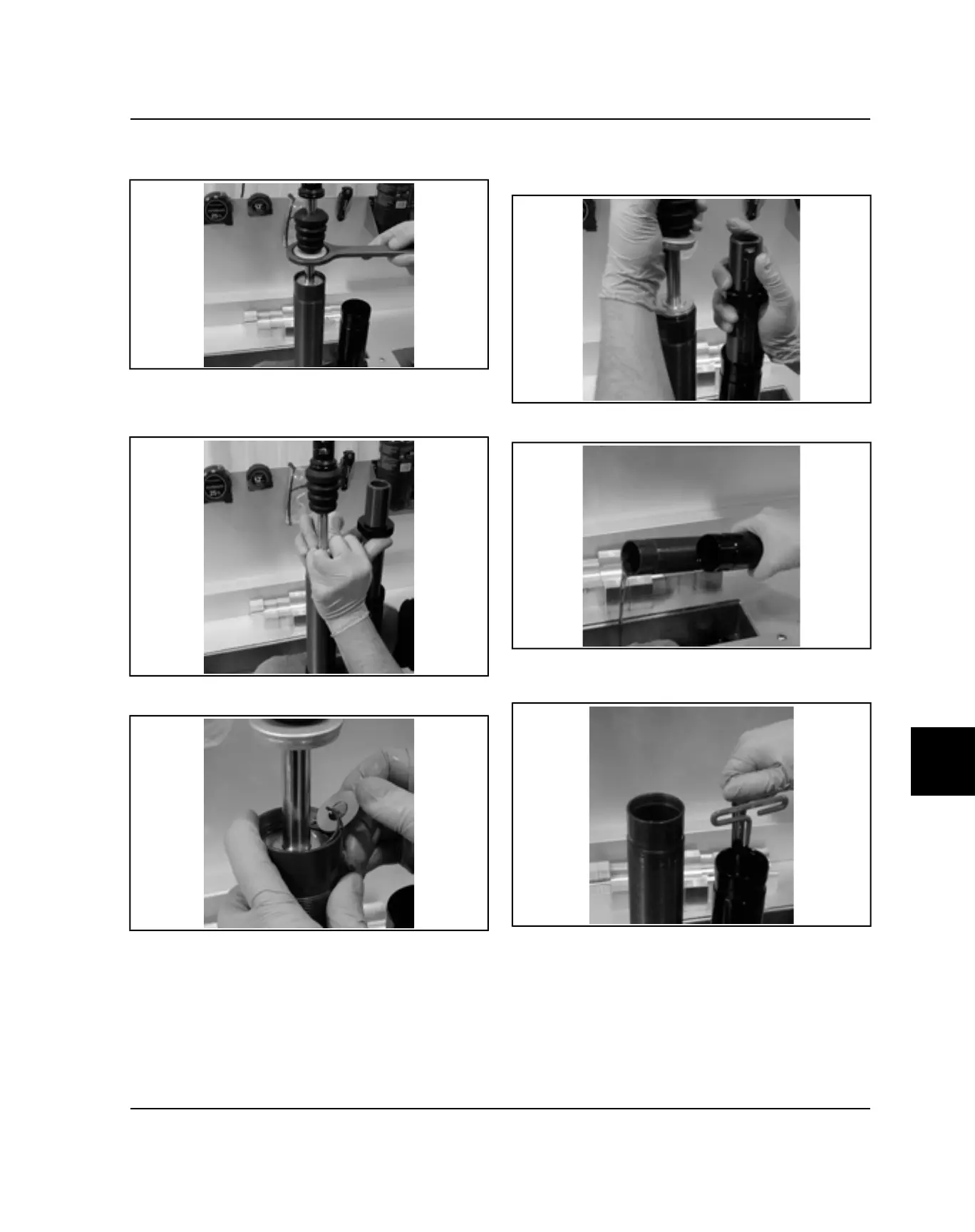

7. Remove the bearing cap removal tool and retaining
ring.
8. Press the bearing assembly down with your fingers.
At the same time push the IFP tool upwards with your
thumbs.
9. Remove retaining ring with a valve shim.
10.Remove shock shaft assembly by pushing down on
the IFP removal tool while pulling up on shock shaft
assembly.
11. Dump out used oil.
12.Using a 9/16″ open end wrench and a 1/8″ Hex Tee
handle wrench, remove the bleed screw.
STEERING / SUSPENSION
