9.30
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.

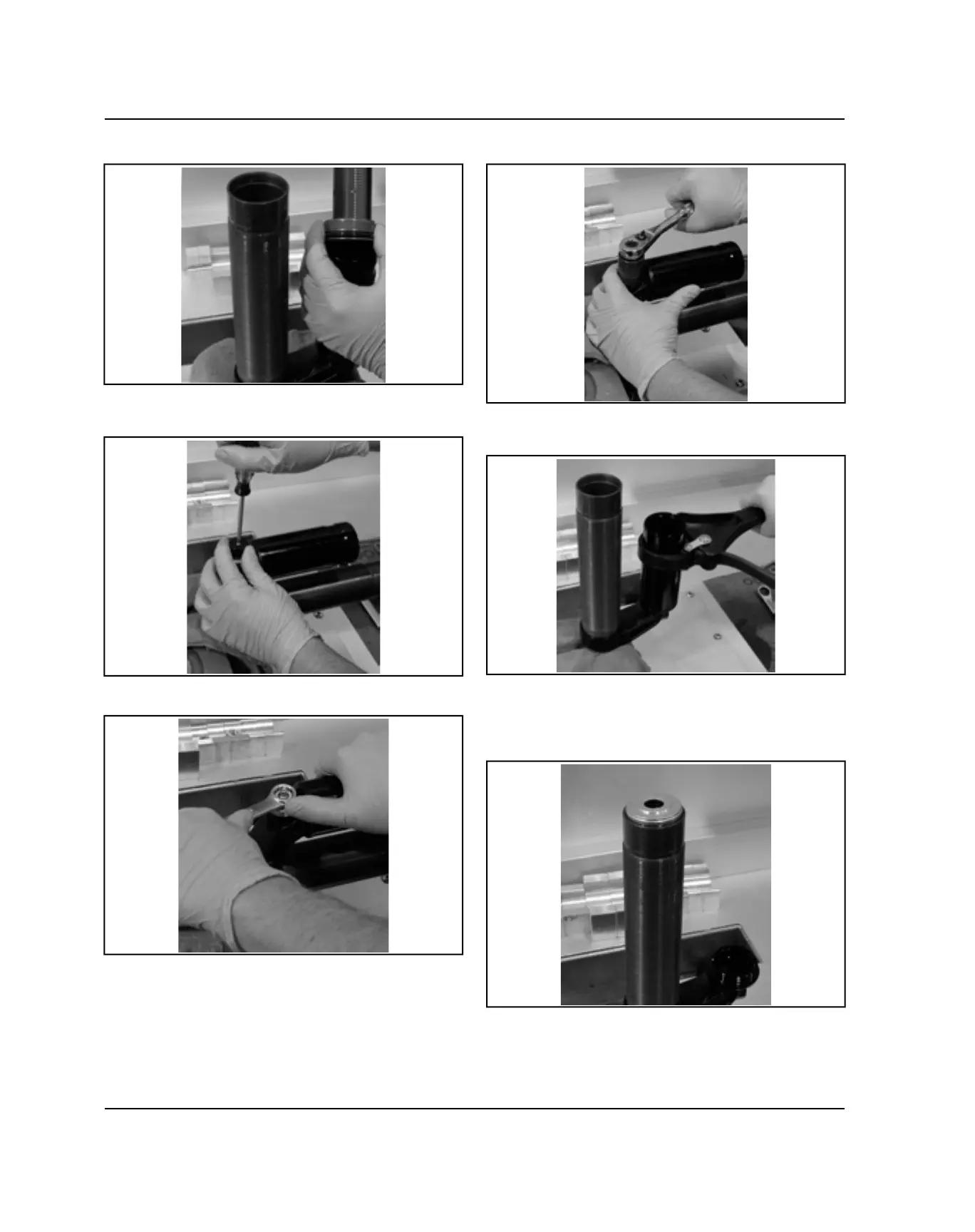

13.Remove the IFP and dump out remaining oil.
14.LSC equipped shocks will require the cap to be
removed with a Torx bit driver.
15.Remove the LSC using a 5/8″ wrench.
16.Remove the DSC using a DSC removal socket.
17.Remove the reservoir with a rubber belted strap
wrench.
18.Before putting the body into the clamp blocks,
partially insert an old or used bearing assembly in the
body (This will prevent over tightening and deforming
the body).
STEERING / SUSPENSION
