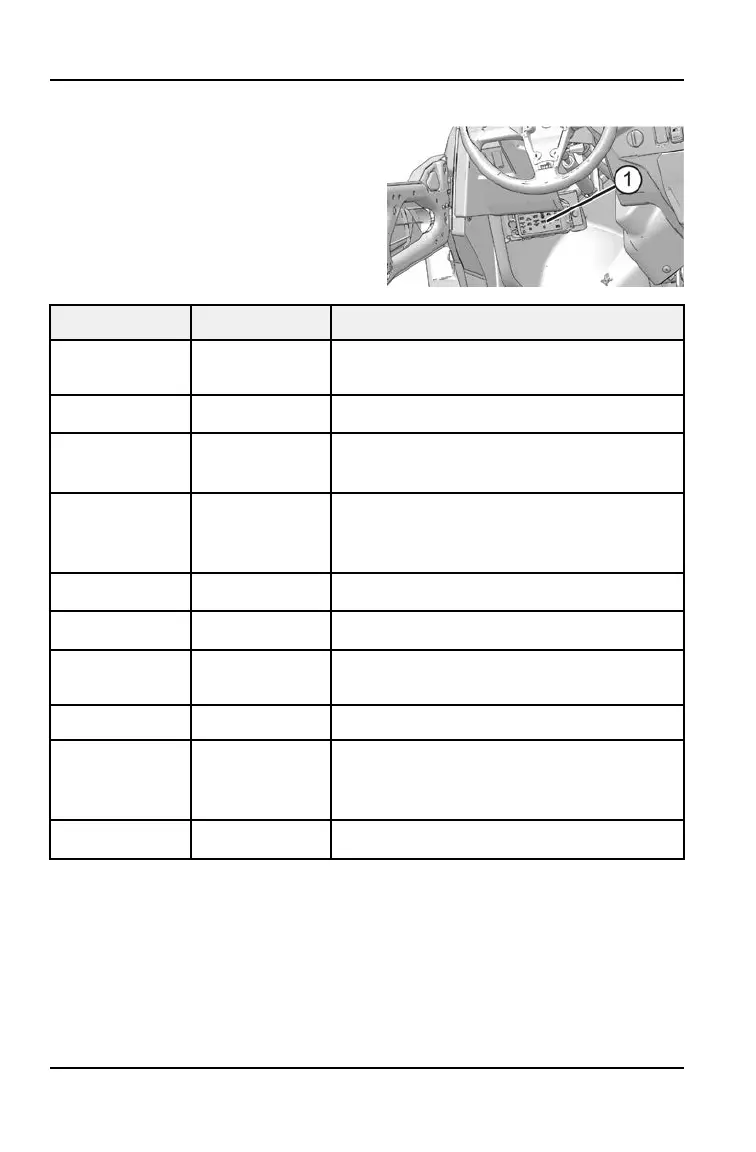

FUSE / RELAY CENTER
If the engine stops or will not start, if the
power steering stops working (if
equipped), or if you experience other
electrical failures, a fuse may need
replacement. Locate and correct any
short circuits that may have caused the
blown fuse, then replace the fuse. The
fuse/relay center
q
is located under the
driver’s side console.
LABEL VALUE FUNCTION
FAN
20A Circuit
Breaker
Engine Coolant Fan
FUEL 7.5A Fuse
Fuel Pump
TERM 10A Fuse
Under Hood Terminal Block
RZR XP 4 vehicles: Rear 12V Receptacle
INSTR 7.5A Fuse
Interior LED, Diagnostic Port
DYNAMIX/RideCommand vehicles:
Gauge Display
SOCKET 10A Fuse
Dash 12V Receptacle
EPS 30A Fuse
Power Steering
SCM 7.5A Fuse
DYNAMIX vehicles: Suspension Control
Module
SHOCK 7.5A Fuse DYNAMIX vehicles: Shocks
UNSW 7.5A Fuse
Diagnostic Connector
DYNAMIX/RideCommand vehicles:
Display
LIGHTS 7.5A Fuse
Headlights, Taillights
128
MAINTENANCE
