9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
7.31

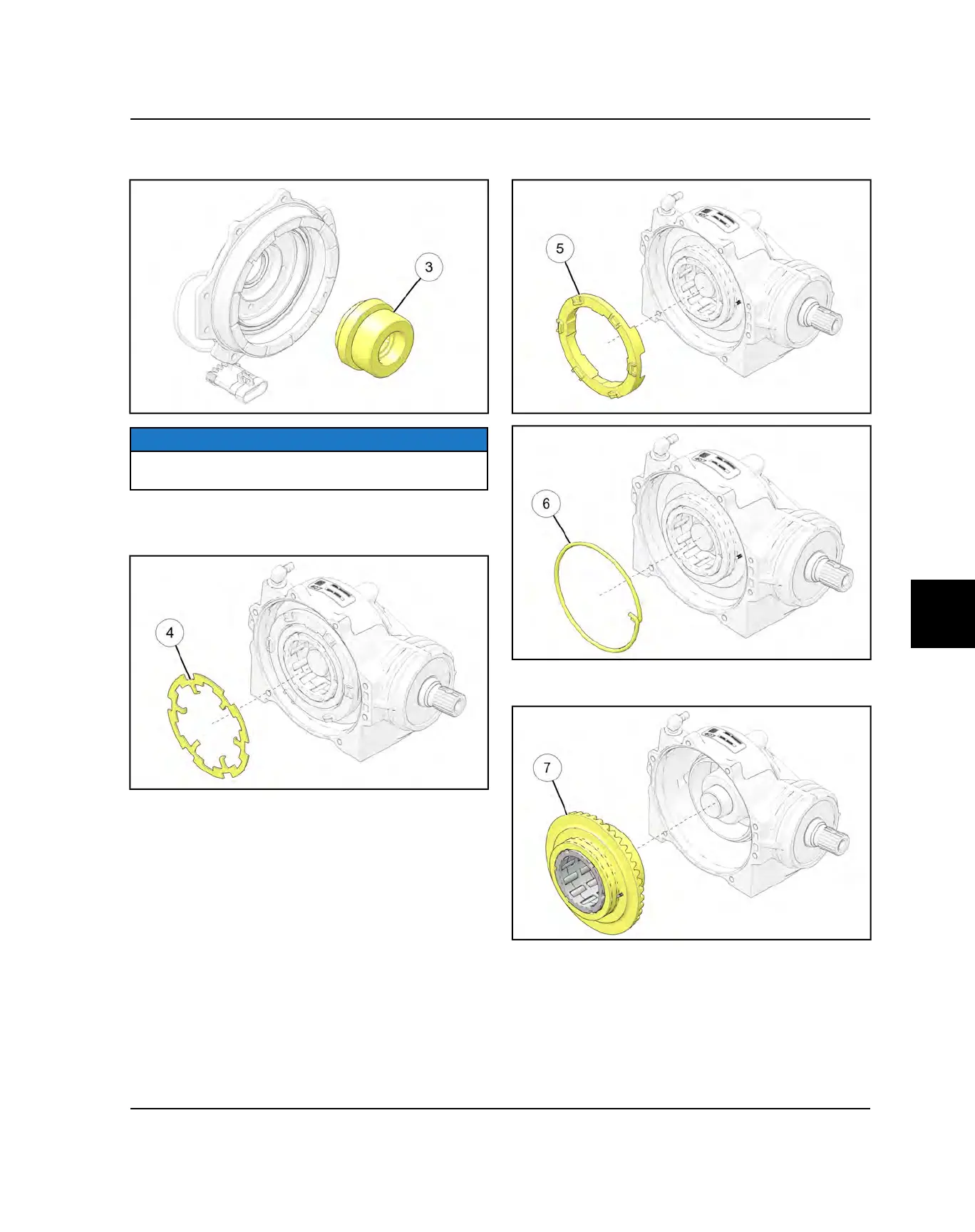

3. Remove the LH output hub assembly
e
from the
clutch housing or outer cover plate assembly.
NOTE
Nylon spacer is non-serviceable and should not be
removed.
4. Remove and inspect the armature plate
r
. Refer to
AWD Diagnosis, page 7.28 for detailed inspection
process.
5. Remove the torsion spring retainer
t
and torsion
spring
y
from the top of the ring gear.
6. Remove the clutch housing / ring gear and roll cage
assembly
u
from the gearcase housing.
FINAL DRIVE
