Polaris RZR XP4 1000 2018 - Wheel Hubs; Front Hub Assembly View; Rear Hub Assembly View

7
9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
7.37
WHEEL HUBS

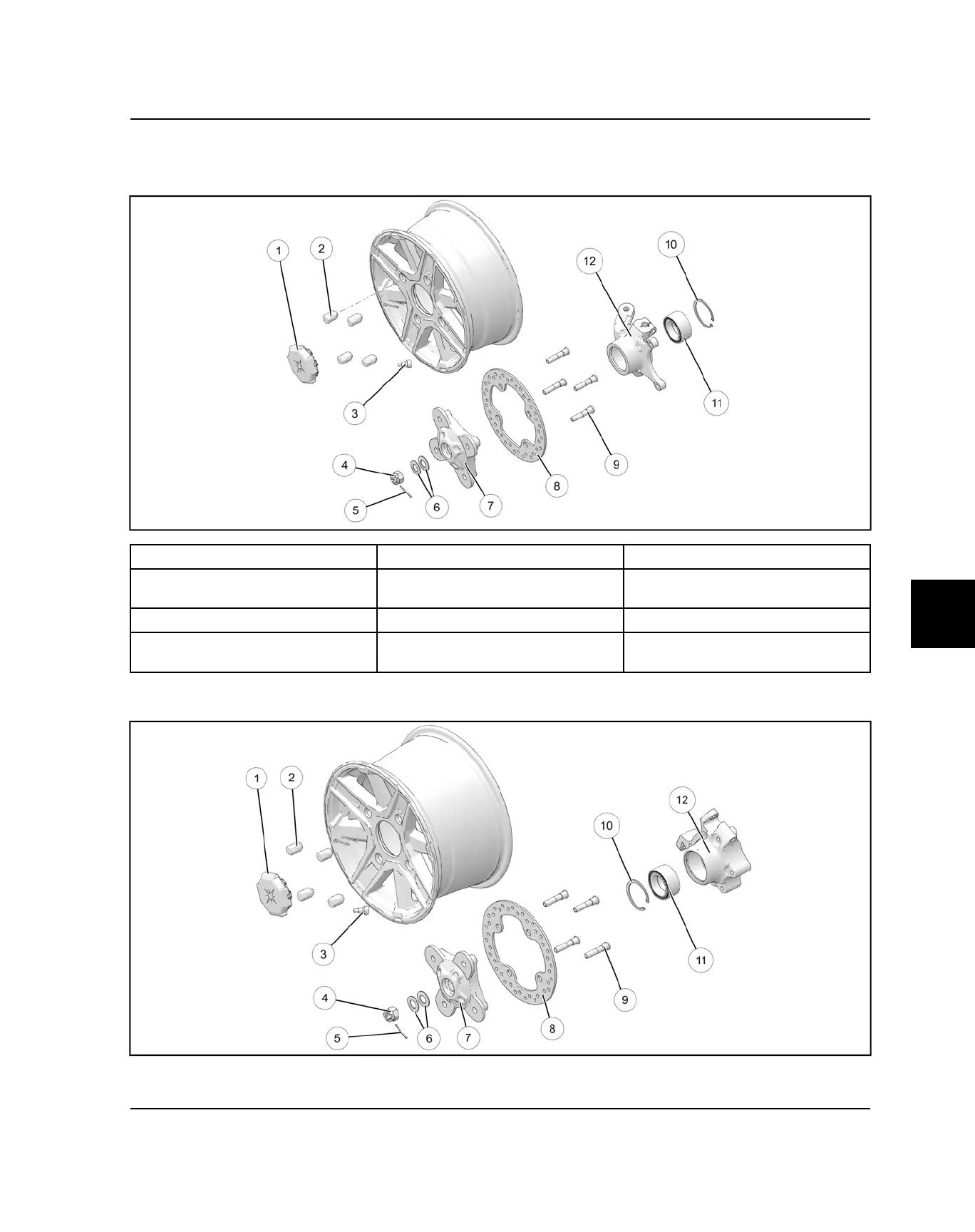

FRONT HUB ASSEMBLY VIEW
q
Wheel Cap
t
Cotter Pin
o
Studs
w
Wheel Lug Nuts
120 ft-lbs (163 Nm)
y
Washers
a
Snap Ring
e
Valve Stem
u
Wheel Hub s
Wheel Bearing
r
Hub Castle Nut
180 ft-lbs (244 Nm)
i
Brake Disc d
Bearing Carrier
REAR HUB ASSEMBLY VIEW
FINAL DRIVE
