Wall Mounting
The TV is provided with mounting holes for a VESA approved wall mounting bracket
(NOT SUPPLIED). The VESA mounting pattern is 200 x 200mm. Remove the screws
holding the base to the base bracket and lift the base away (do not remove the base
mounting brackets). Mount the VESA bracket using 4 x M6 x 10 isometric threaded
screws (not supplied). Do not use screws longer than 10 mm; damage will occur to
the internal components.
Caution: Your new TV is heavy; please consult with a professional wall mount installer
to perform this installation.

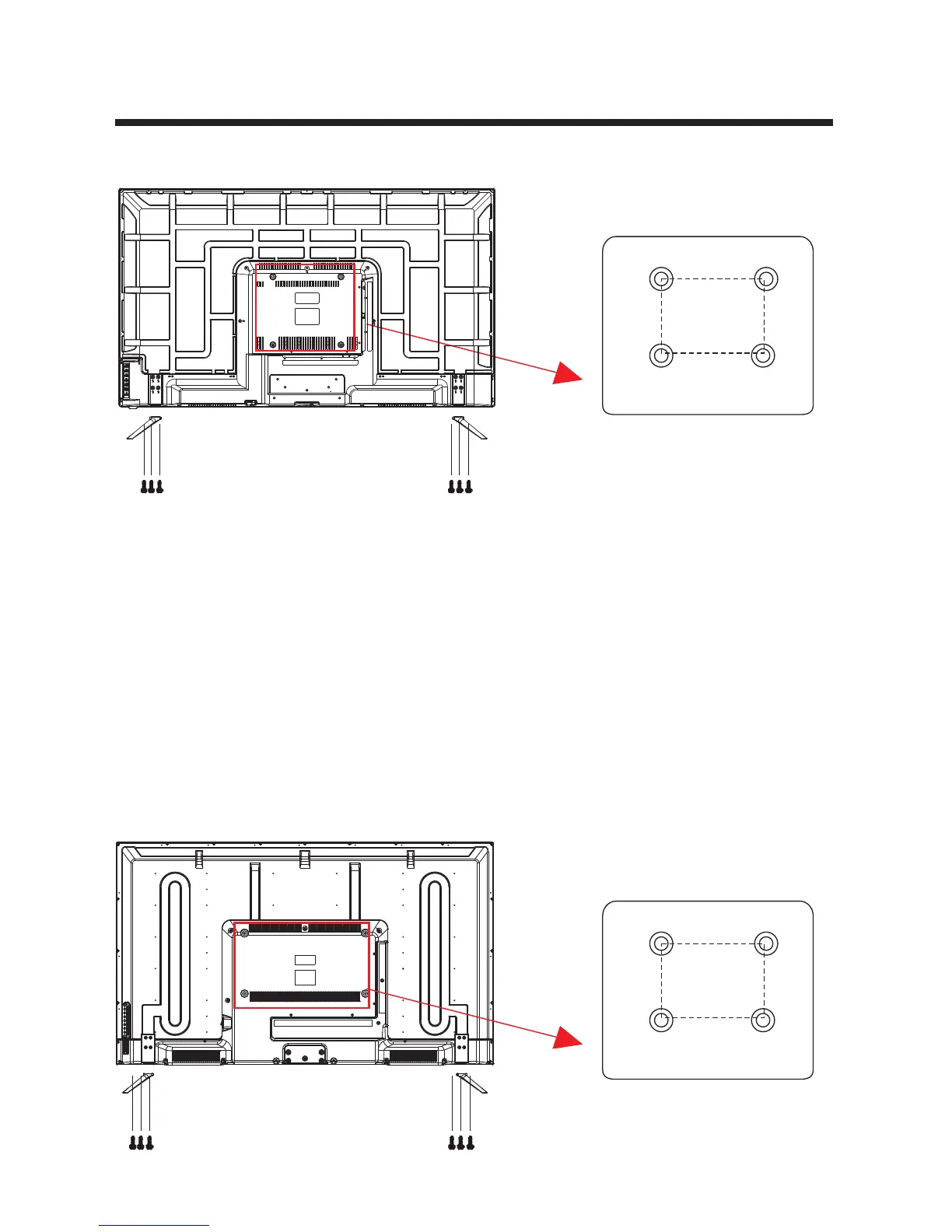

Four mounting holes
(size M6 screw)
200mm
200mm
49GSR4100KM
Screws(3）
4*23BMH
Screws(3)
4*23BMH
Four mounting holes
(size M6 screw)
400mm
200mm
55GSR4100KM
Screws(3）
4*23 BMH
Screws(3)
4*23 BMH
