Wall Mounting
The TV is provided with mounting holes for a VESA approved wall mounting bracket
(NOT SUPPLIED). The VESA mounting pattern is 200 x 200 mm. Remove the screws
holding the base to the base bracket and lift the base away (do not remove the base
mounting brackets). Mount the VESA bracket using 4 x M6 x 20 isometric threaded
screws (not supplied). Do not use screws longer than 20 mm; damage will occur to
the internal components.
Caution: Your new TV is heavy; please consult with a professional wall mount installer
to perform this installation.

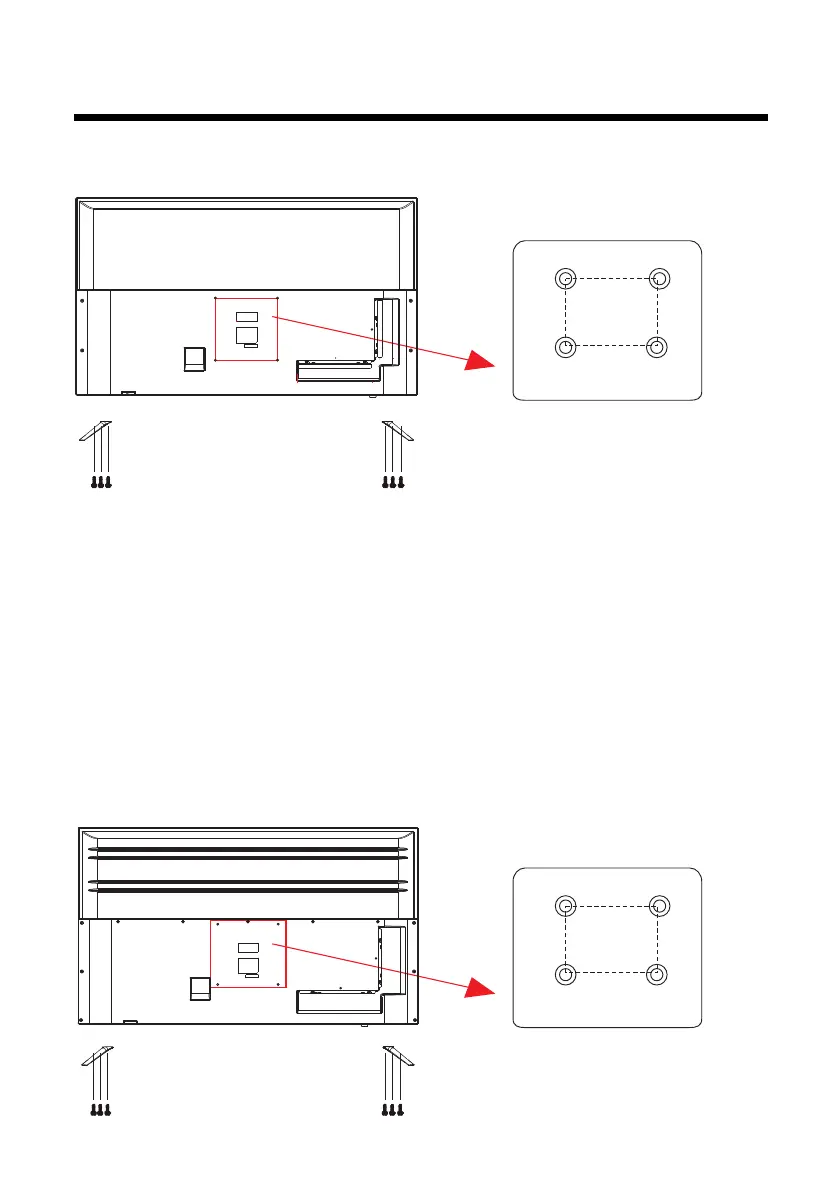

Four mounting holes
(size M6 screw)
200mm
200mm
49T7U
Screws(3）
4*18BMH
Screws(3)
4*18BMH
Four mounting holes
(size M6 screw)
200mm
200mm
50T7U
Screws(3）
4*22BBH
Screws(3)
4*22BBH
