Product Description (continued)
11. TV Antenna jack (2)
Used to connect to the external antenna or the CATV connecting line.
12. TV Antenna jack (3)
Used to connect to the external antenna.
13. LCD screen
7" color TFT LCD screen clearly display the data.

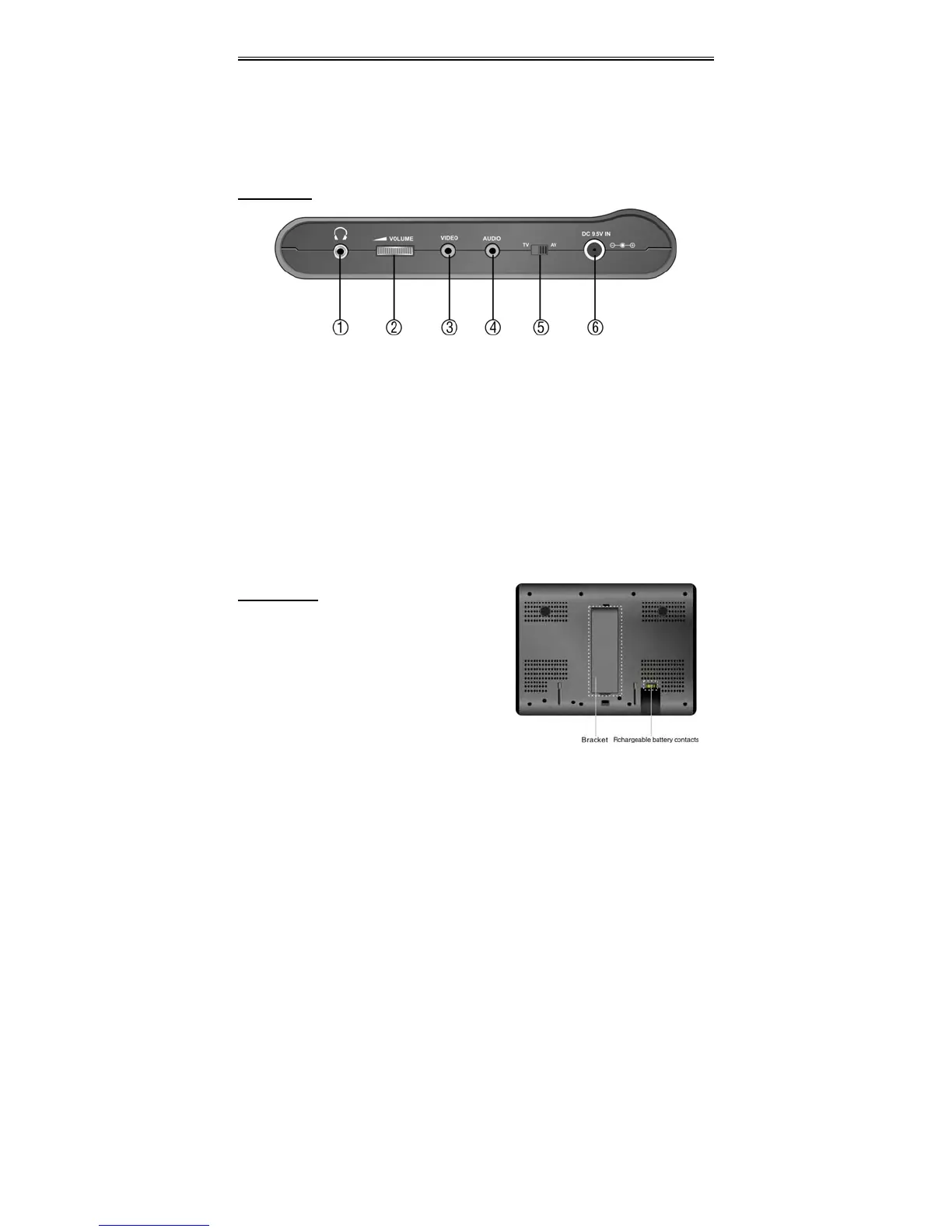

Left Panel
1. Headphone jack
When the headphone is plugged, the internal speakers output will turn off
automatically.
2. Volume Control knob
Used to adjust the volume of the headphone and speaker.
3. Video Input/Output Jack
Used to connect to an external monitor for video signal output or external video
source for video signal input.
4. Audio Input/Output Jack.
Used to connect to audio device for audio output or audio source for audio signal
input.
5. TV/AV Switch
Switch to TV to receive TV programs and output AV signal; switch to AV to input AV
signal.
6. DC 9.5V Input Jack
Used to connect the AC adapter or DC adapter.
Rear Panel
When using the unit, pull the bracket on
the rear panel out, and place the unit
resting on the table.
To Next Page
