3. Next, set the Mode Change Lever in the position for single- frame exposure. Now
turn Gear (1) past the Switch contact, within the cam groove C range (Figure 9).
The Light Interception Blade should now cover the aperture.

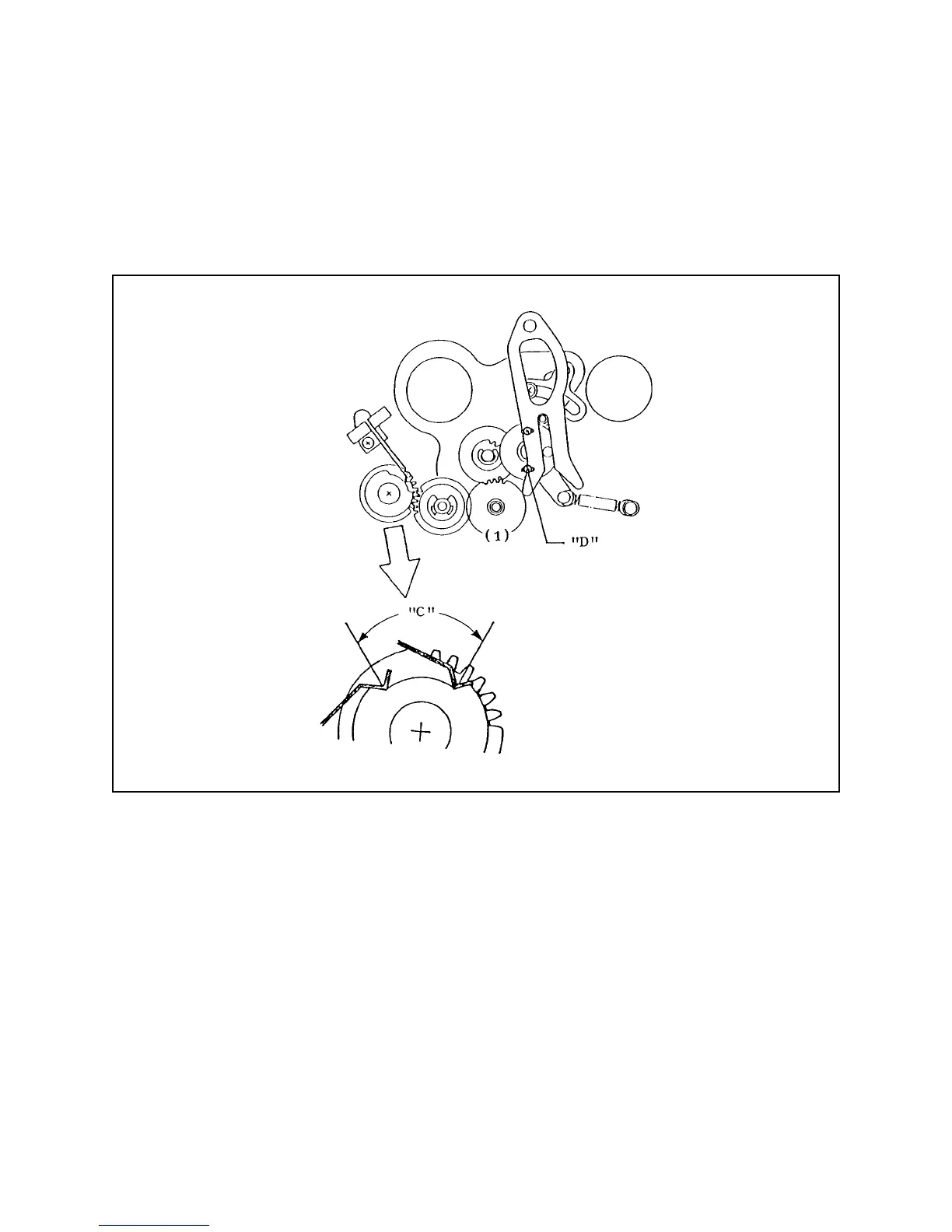

Figure 9. Setting positon of mode change lever for single frame exposure
4. Repeat step 3, to be sure the aperture is fully covered by the Light Interception
Blade. If the aperture is only partially covered, change the engagement of Gear (1)
with Gear (3).
Note: If only a slight adjustment is needed, loosen screw “D” and slightly change
the position of pin (a).
