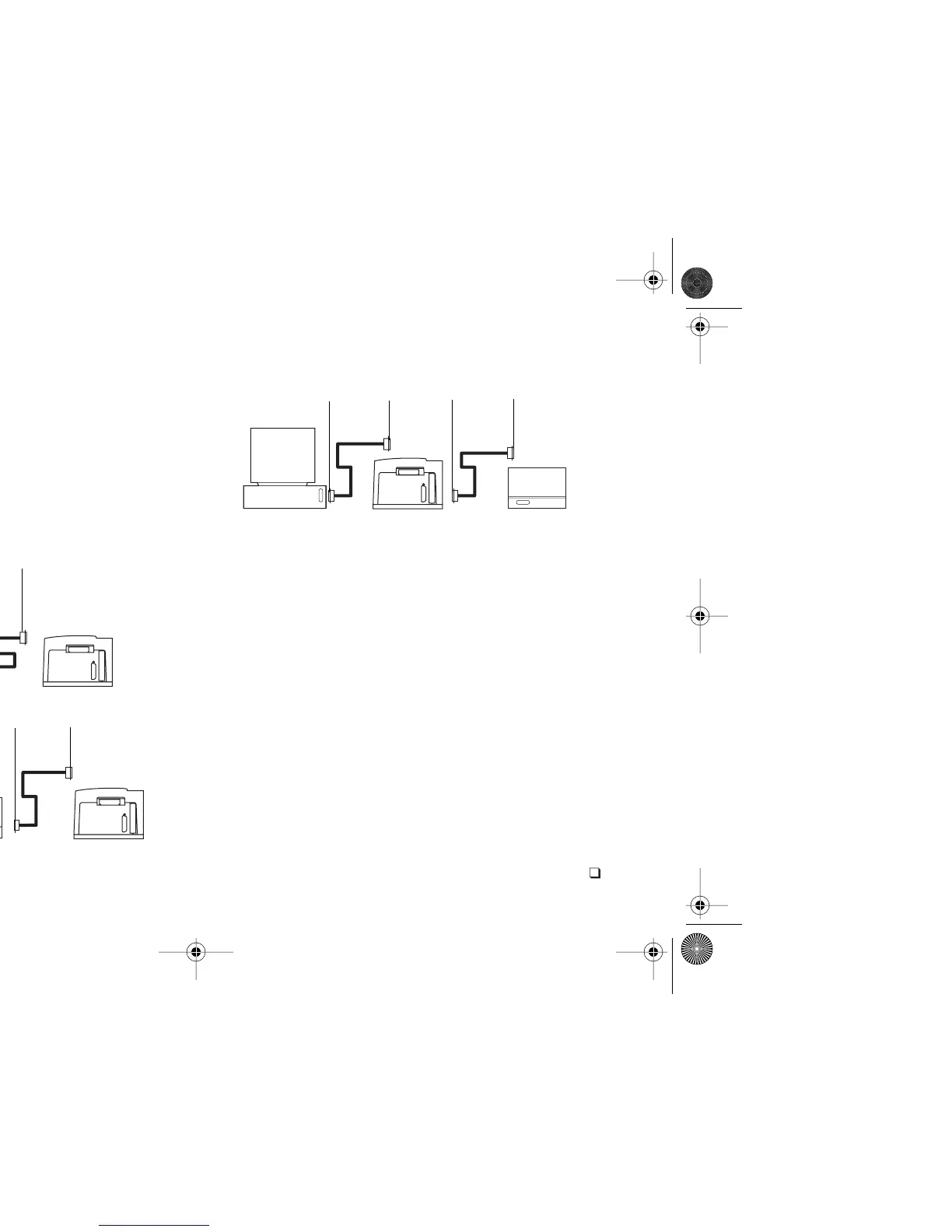

Connect the SCSI cables:
Place the scanner at the end of the SCSI chain or between the
computer and other SCSI devices as shown in the following dia-
grams. Use the shortest possible cables.
Note:
Turn the computer, scanner and all other SCSI devices off
before connecting or disconnecting any cables. Do not connect
the scanner to the parallel connector on your computer. Doing so
could damage the scanner or computer.
Computer Scanner
(Termination on)
25 pins 50 pins
Computer
(Termination on)
25
Scanner
Other SCSI device
(Unterminated)
pins
50
pins
25
pins
50
pins
You may need additional cables or adapters to connect the scanner.
Your cable must have a 50-pin Centronics M or DB-25 M connec-
tor at one end for attachment to the scanner, and the cable should
be as short as possible. To determine the connector you need for
attachment to your SCSI adapter, refer to instructions with the
adapter.
Computer
(Termination off)
25
Scanner
Other SCSI device
(Terminated)
pins
50
pins
25
pins
50
pins
