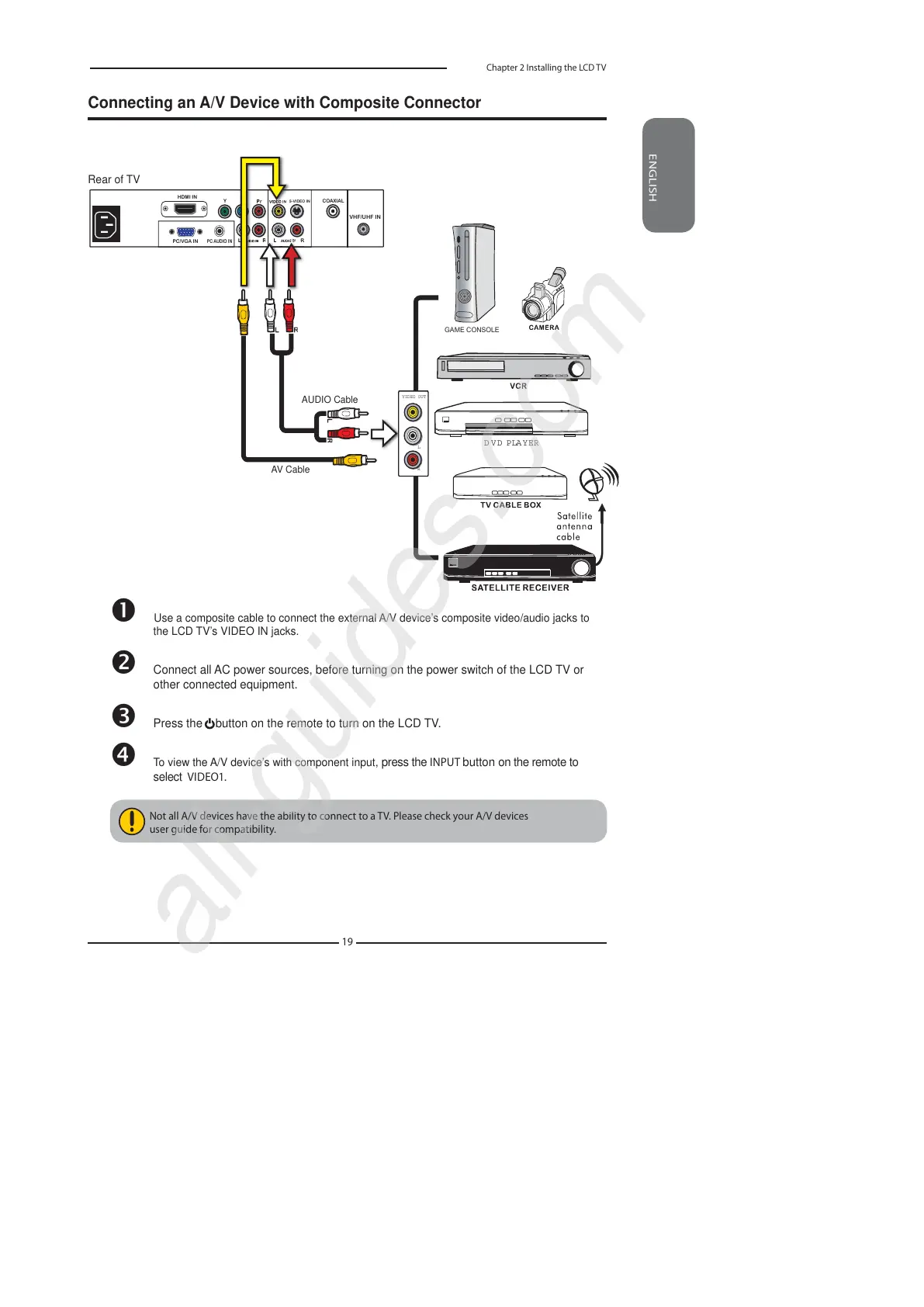

Connecting an A/V Device with Composite Connector
HDMI IN
LRLR
PC/VGA IN
PC AUDIO IN
VIDEO IN S-VIDEO IN
COAXIAL
VHF/UHF IN
YPbPr
AUDIO IN
AUDIO IN
Rear of TV
AUDIO Cable
AV Cable
L
R
VIDEO OUT
ENGLISH
19
Chapter 2 Installing the LCD TV
Use a composite cable to connect the external A/V device’s composite video/audio jacks to
the LCD TV’s VIDEO IN jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To view the A/V device’s with component input, press the INPUT button on the remote to
select VIDEO1.
GAME CONSOLE
DVD PLAYER
Not all A/V devices have the ability to connect to a TV. Please check your A/V devices
user guide for compatibility.
