Chapter 2 Installing the LCD TV
HDMI IN
LRLR
PC/VGA IN
PC AUDIO IN
VIDEO IN S-VIDEO IN
COAXIAL
VHF/UHF IN
YPbPr
AUDIO IN
AUDIO IN
Rear of TV
Use a HDMI cable to connect the AV equipment’s HDMI output jack to the LCD TV’s HDMI IN
jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
Press the Input button on the remote to select VIDEO4.

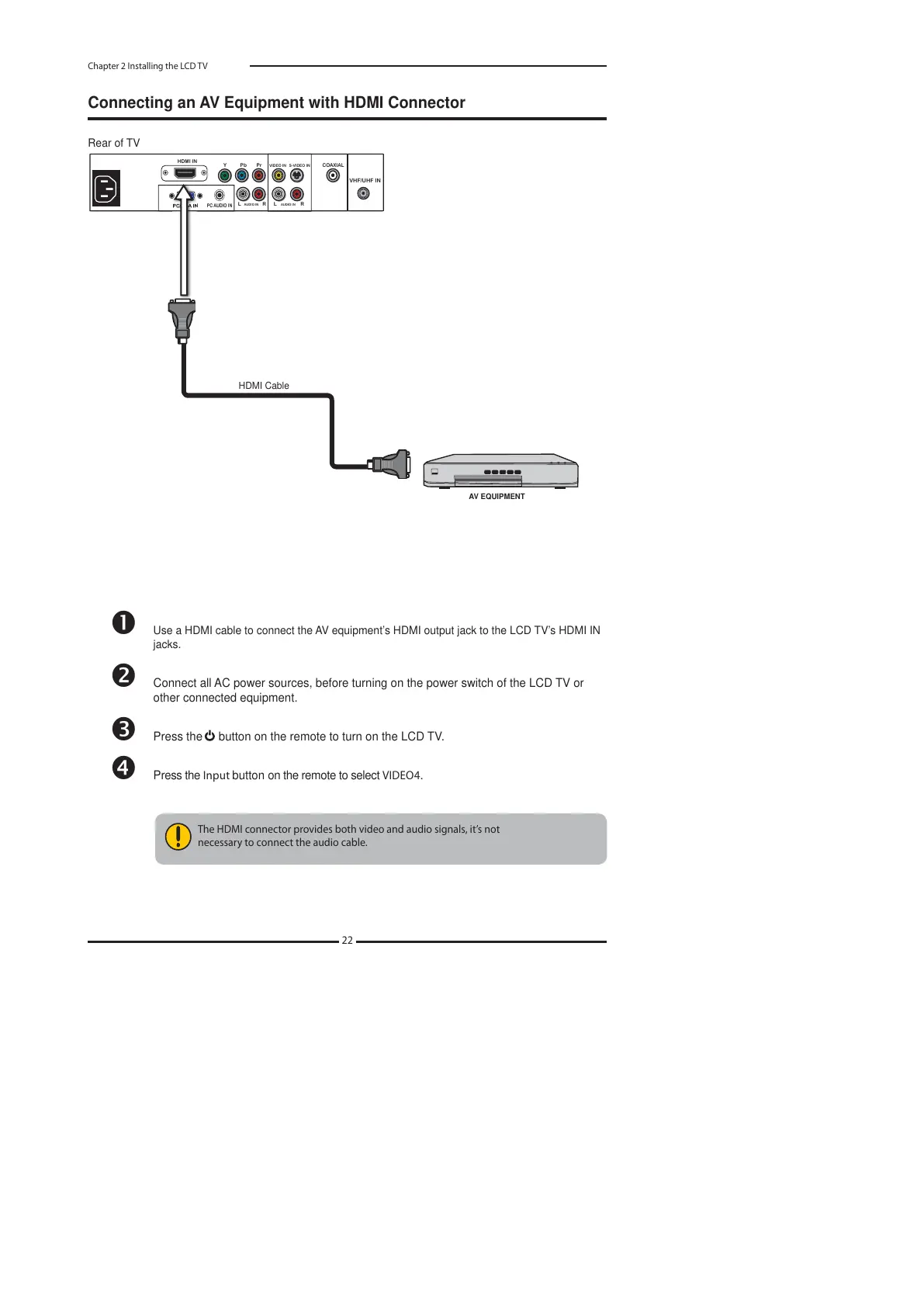

Connecting an AV Equipment with HDMI Connector
The HDMI connector provides both video and audio signals, it’s not
necessary to connect the audio cable.
HDMI Cable
AV EQUIPMENT
To Next Page
