3. Description of the design
EKS-6000 I/O element is designed in the form of a printed circuit board with electronic components
and a connector set, that has been put inside an enclosure.
The enclosure has wall mounting holes in the corners.
Depending on the type of I/O element, cable glands are located in the enclosure body, along longer
sides.
There are six types of I/O elements:
- EKS-6040 Figure 1
- EKS-6004, EKS-6202, EKS-6400 Figure 2
- EKS-6022 Figure 3
- EKS-6044 Figure 4
M12×1.5 cable bushing is used for detection line cable or low-voltage input cable, a M16×1.5 cable
gland is used for output or high-voltage input cable.
The enclosure cover is mounted to the enclosure body with four screws.

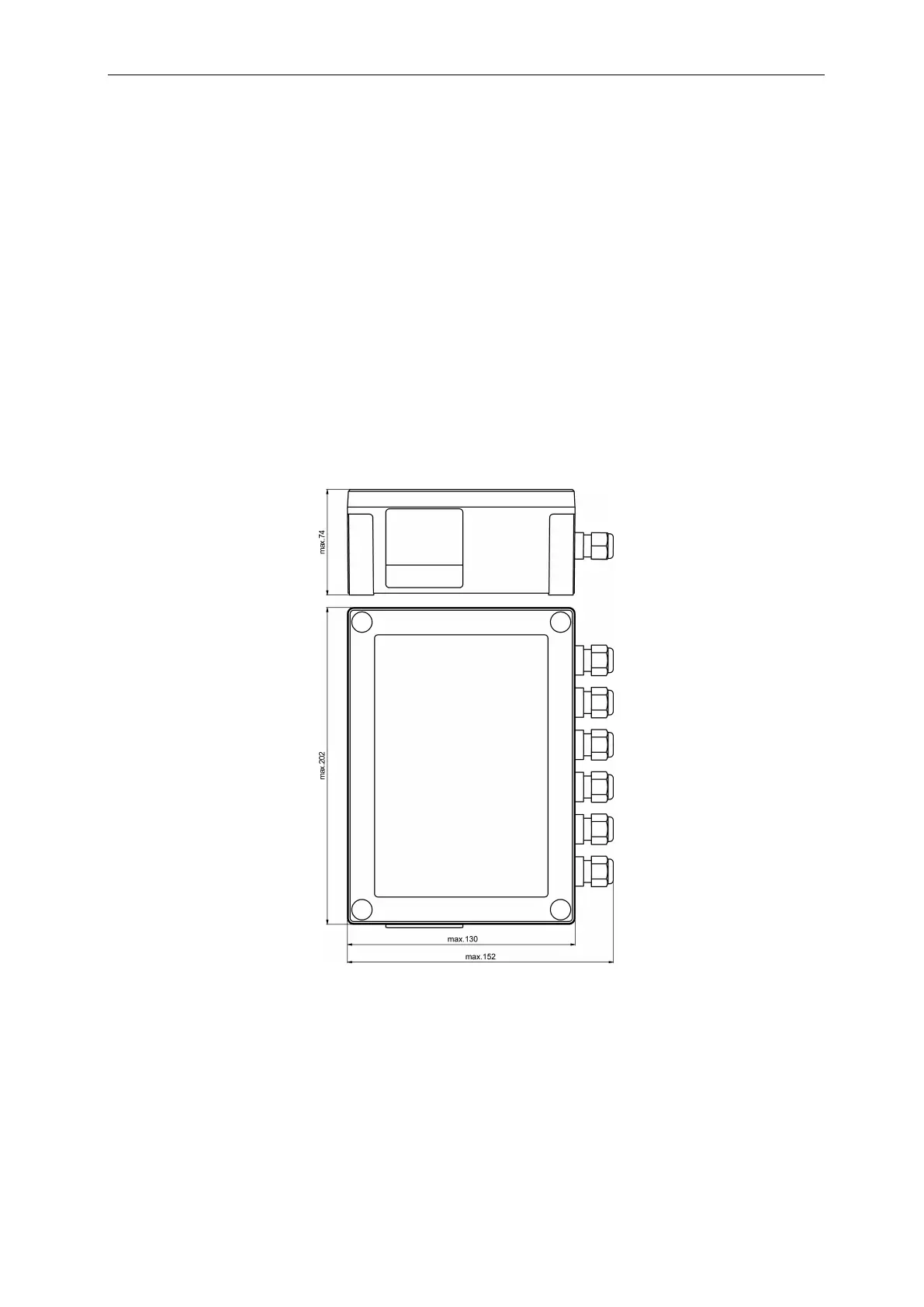

Figure 1 Dimensions of EKS-6040
