Polygroup RP600 User Manual

3
3

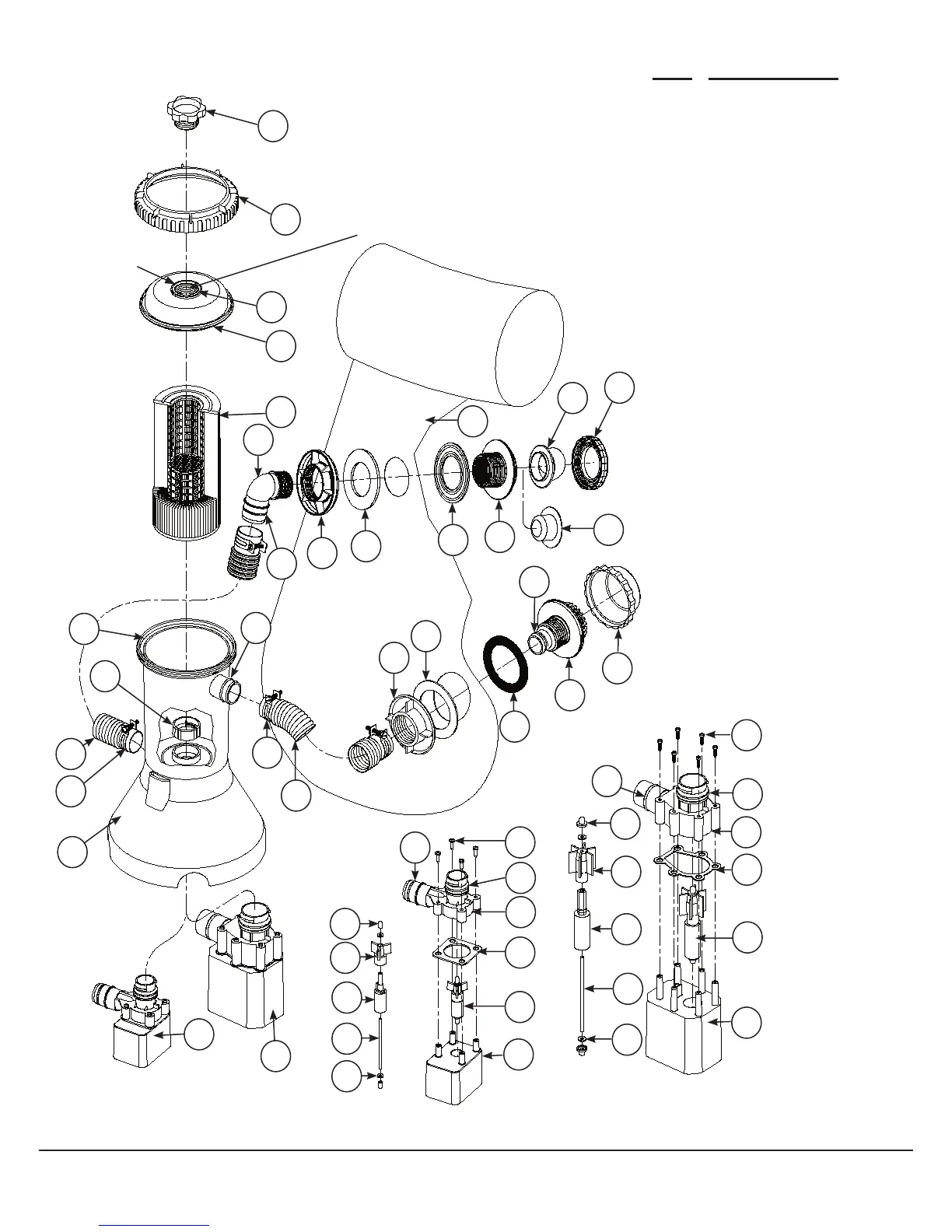

KEY DESCRIPTION
1 PUMP BODY W/CORD
2 ROTOR ASSEMBLY
2A MAGNET AXLE
2B IMPELLER
2C SHAFT
2D THRUST WASHERS
2E SHAFT END CAPS
3 PUMP GASKET
4 VOLUTE HOUSING
5 O-RING (On Volute Housing)
6 PHILLIPS HEAD SCREWS
7 PUMP RETAINING NUT
8 FILTER CASE
9 SEAL TOP
10 SEAL TOP RETAINER
11 VENT SCREW
12 SUCTION HOSE
13 RETURN HOSE
14 HOSE CLAMPS
15 FILTER CARTRIDGE
16 SUCTION FITTING (SF)
17 SF GASKET (Black)
18 SF THRUST WAS
HER (White)
19 SF NUT
20 SF WATER CAP
(Use for service only)
21 RF PLUG (Use for service only)
22 O-RING (On Filter Case)
23 O-RING (On Vent Screw)
24 O-RING (On Hose Connections)
25 RETURN FITTING (RF)
26 RF GASKET (Black)
27 RF THRUST WASHER (White)
28 RF NUT
29 RF ELBOW 90
°
30 RF DIVERTER FITTING
31 RF LOCKING RING
32 POOL WALL
THE FILTER CARTRIDGE (15) WILL HOLD 1”
DIAMETER CHLORINE TABLETS. CHECK
YOUR CHLORINE LEVELS TO DETERMINE
THE PROPER NUMBER OF TABLETS TO ADD.
LIBERALLY
LUBRICATE
THE O-RINGS
(17,22,23,24 &26)
WITH SOME
PETROLEUM
JELLY
YOU MUST
HAVE THIS
TYPE OF
FILTER WITH
A CENTRAL
CORE MESH
DIVIDER
TO USE THE
CHLORINE
DISPENSER.
PATENT #7,005,062
FIG. 1
11
10
23
9
15
22
7
13
14
8
14
12
1-6
19
18
20
16
24
24
17
24
6
5
4
3
1
6
5
3
2
1
2E
2B
2A
2C
2D
24
2E
2B
2A
2C
2D
2
4
1-6
2 Ea.
2 Ea.
2 Ea.
2 Ea.
6 Ea.
4 Ea.
4 Ea.
4 Ea.
F1000C / F1500C / F2000C
F600C & F700C
32
21
24
27
28
26
25
30
31
29
Should you encounter any problems, contact the Customer Service Representative/Parts Department at (800) 813-0206
from 8 AM to 5 PM Mon. thru Fri. EST. Extended operating days and hours during peak season requirements.

Polygroup RP600 Specifications

General

Brand	Polygroup
Model	RP600
Category	Swimming Pool Filter
Language	English
