6.
Now insert the two U-Shape pipe sections through the end of the two rectangular strips atthe bottom ofthe pool FIG. 3. Now, insert the capped ends of the U-Shape
pipe into the holes in the Horizontal Beam assembly FIG. 3 depress the buttons pushing the Cap entirely into the horizontal beam until itstops.
7.
Make sure both U-Shape pipes are inserted fully and check that all connected sections are still securely fastened. Repeat steps for the frame on the opposite side
of the pool.

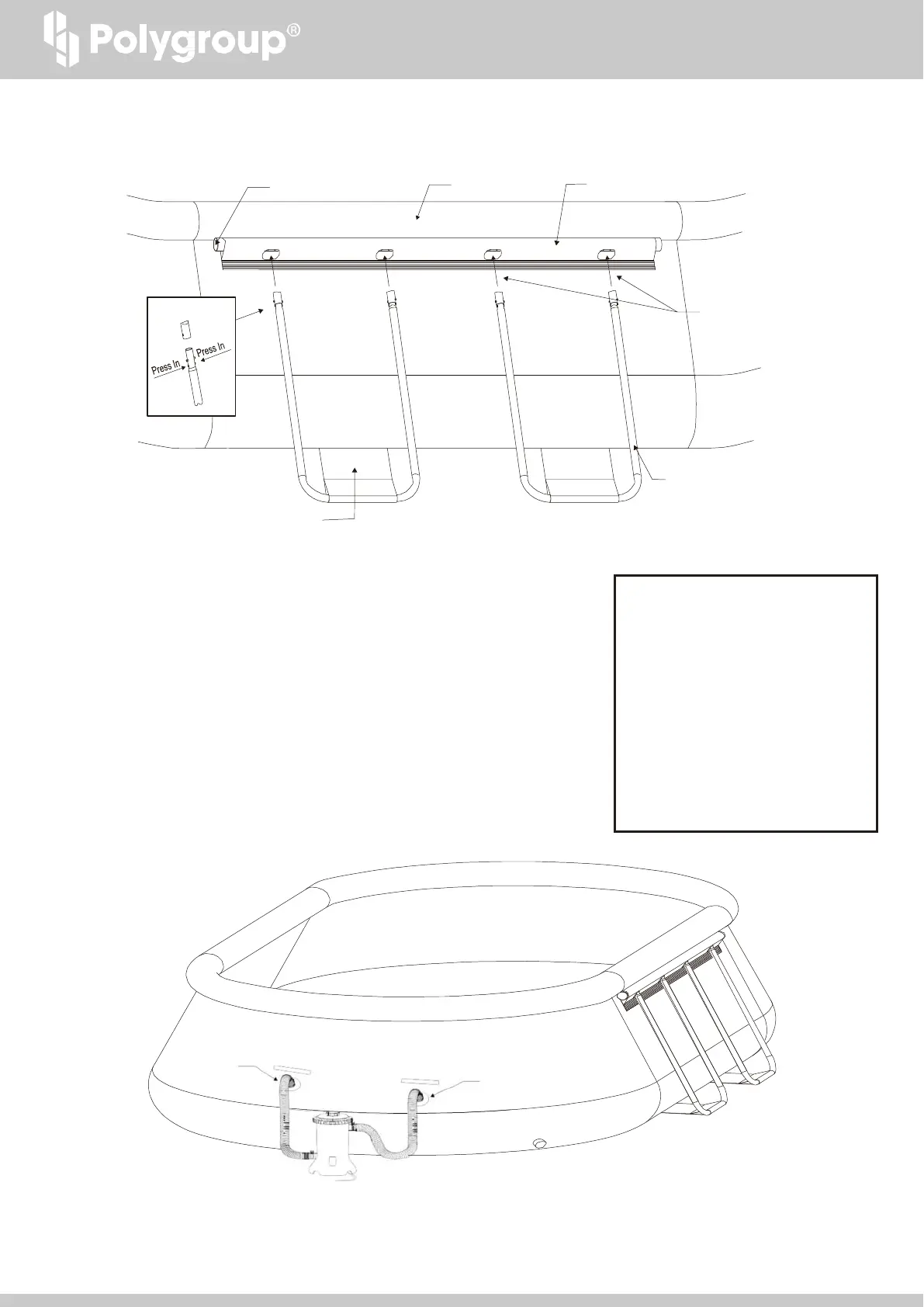

Horizontal Bea m Assembly Deflated Top Ring
Sleeve
Insert
As
4
Shown
1
5
Rectangular Strip
At Bottom Of Pool
FIG. 3
U-shape Pipe Section
Shown Inserted Thru
Rectangular Section
At Botton OfPool
8.
Inflate the top ring. Squeeze the base of the valve stem to open an internal check valve while inflating.
9.
Following the instructions under “Power Filter Installation” inthe “Swimming Pool Filter System” owner’s
manual, install Pool Wall Fittings (16-21) as described in Steps “A” -“C”. Plug both Pool Wall Fittings (16)
from the inside of the pool using two Wall Fitting Plugs (20). Make sure the drain fitting is plugged securely
and the cap isin place. Start filling the pool with water. After about 1-inch of water is on the bottom, stop
filling and smooth wrinkles out of the bottom of the pool. Pull the outer wall out from under the top ring,
all around the bottom of the pool, so that itfills evenly.
10.
NOTE:
IFMORE THAN 1-2INCHES OF WATER COLLECTS ON ANY ONE SIDE BEFORE THE POOL
STARTS FILLING IN THE CENTER, THE POOL IS NOT LEVEL ENOUGH, AND MUST BE CORRECTED,
SEE “SITE PREPARATION”, PAGE 4.
NOTE:
THE WEIGHT OF THE WATER WILL PREVENT ANY ADJUSTMENT AFTER THIS POINT .
11.
Now, as you continue filling, the inflated ring will rise as the water deepens. Max. Water Level is the bottom
seam of the inflatable ring, this information is printed on the ring. Once this is done, refer back to the
“Swimming Pool Filter System” owner’s manual, and continue through the rest ofthe installation.
8
IF YOUR POOLINCLUDEDA
FILTER/PUMPSYSTEM, REFER
TO FILTER SYSTEM OWNER’S
MANUALSECTION
IN THE SWIMMING
POOLFILTER SYSTEM
OWNER’S MANUAL, ON PAGE4,
INSTALLPOWER FILTERAND THE
POOL WALLFITTINGS AS
DESCRIBED
