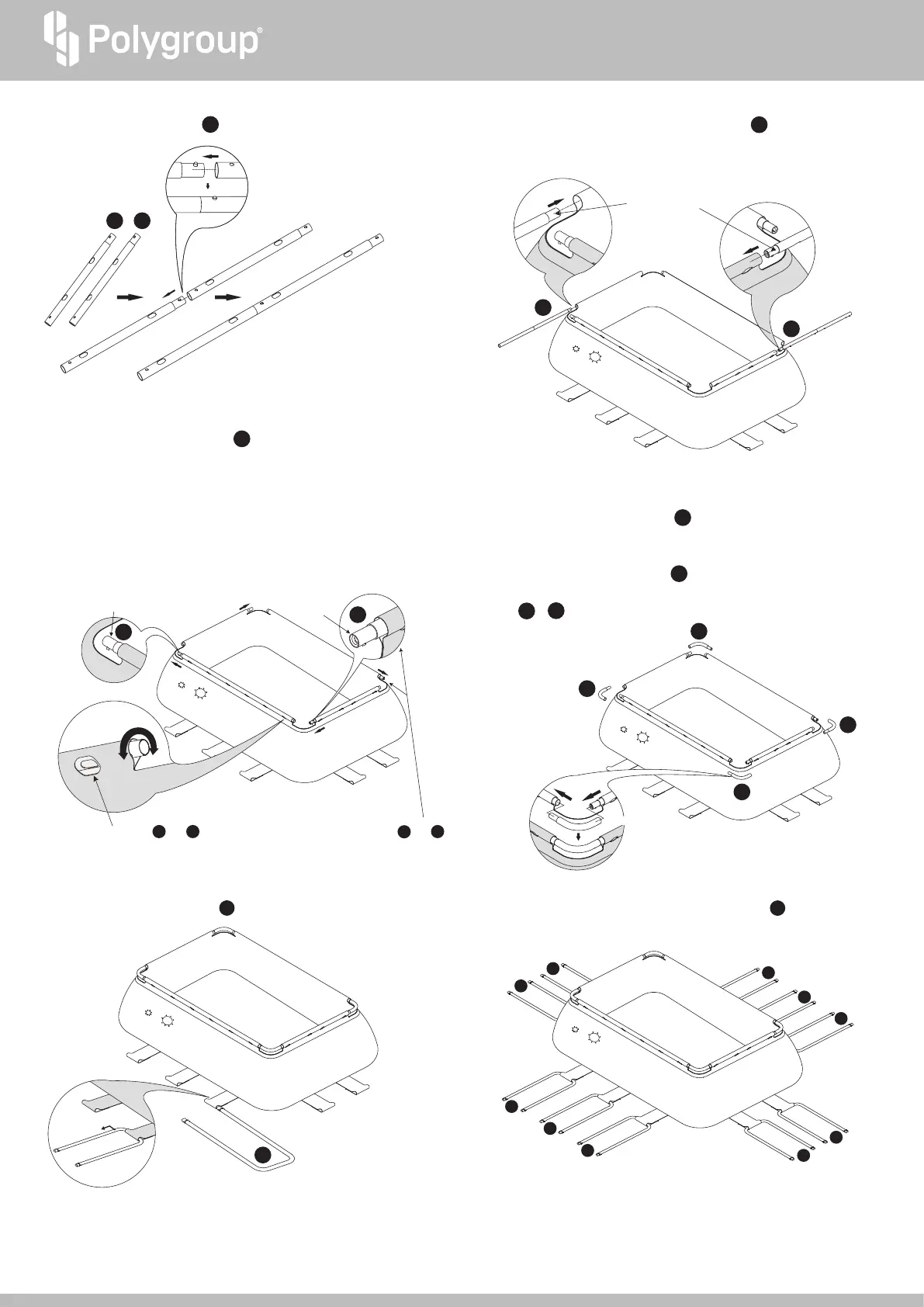

9. Rotate the short and long tubes to align their holes
with the openings on the sleeves.
Swedged End
Swedged End
Swedged End
x4
2
2
2
2
2
2
2
2
2
2
4 4
7. Connect the Short Tubes 4 . See NOTE below.
NOTE: Refer to the Parts List (p. 6-7) for the exact
quantity of Short Tubes 4 . Connect half the
total quantity to form the horizontal beams on
the short sides of the pool.
8. Carefully slide the connected Short Tubes 4 into the sleeves
on the short sides of the pool.
4
4
• Align the holes of 4 and 5
with the sleeve openings.
• Make sure all the swedged ends of 4 and 5
are pointing to the clockwise direction.
4
5
3
3
3
3
10. Connect the Corner Pieces 3 to the tubes at each of the four
Corners. You should have a closed rectangular pool frame
around the top of the pool.
NOTE: The Corner Pieces 3 DO NOT have holes to catch the
spring pins. THIS IS NORMAL. Only the Long and Short Tubes
4 & 5 have holes to catch the spring pins.
2
11. Insert the U-Shaped Pipes 2 into the straps at the bottom of
the pool.
12. Continue to insert all of the U-Shaped Pipes 2
as shown below.
