Engine Compartment Fuse Block

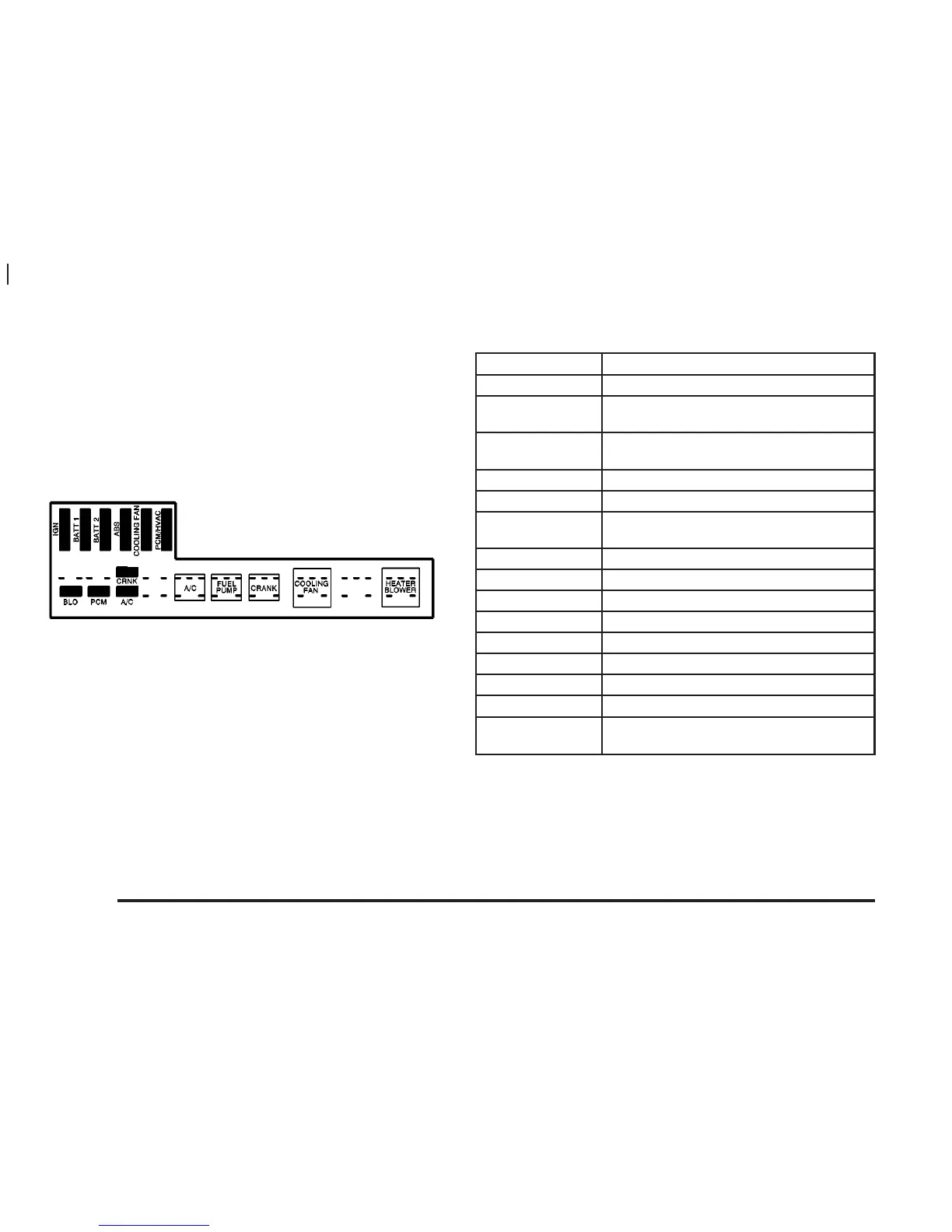

The engine compartment fuse block is located on the
driver’s side of the vehicle. Lift the cover to check
the fuses. See
Engine Compartment Overview on
page 5-12
for more information on location.
Fuses Usage
IGN Ignition Switch Circuits
BATT 1
Exterior lamps, Power Outlet, Horn,
Audio Amplifier
BATT 2
Rear Defogger, Starter, Power
Locks, Stoplamps
ABS Anti-Lock Brake System
COOLING FAN Engine Cooling Fan
PCM/HVAC
Powertrain Control Module, Heater
and A/C Blower
CRNK Starter
BLO Heater and A/C Blower
PCM Powertrain Control Module
A/C A/C Compressor
A/C A/C Compressor
FUEL PUMP Fuel Pump
CRANK Starter
COOLING FAN Engine Cooling Fan
HEATER
BLOWER
Heater and A/C Blower
