Pool Frog 5400 - Parts List Models 5400;5430

11

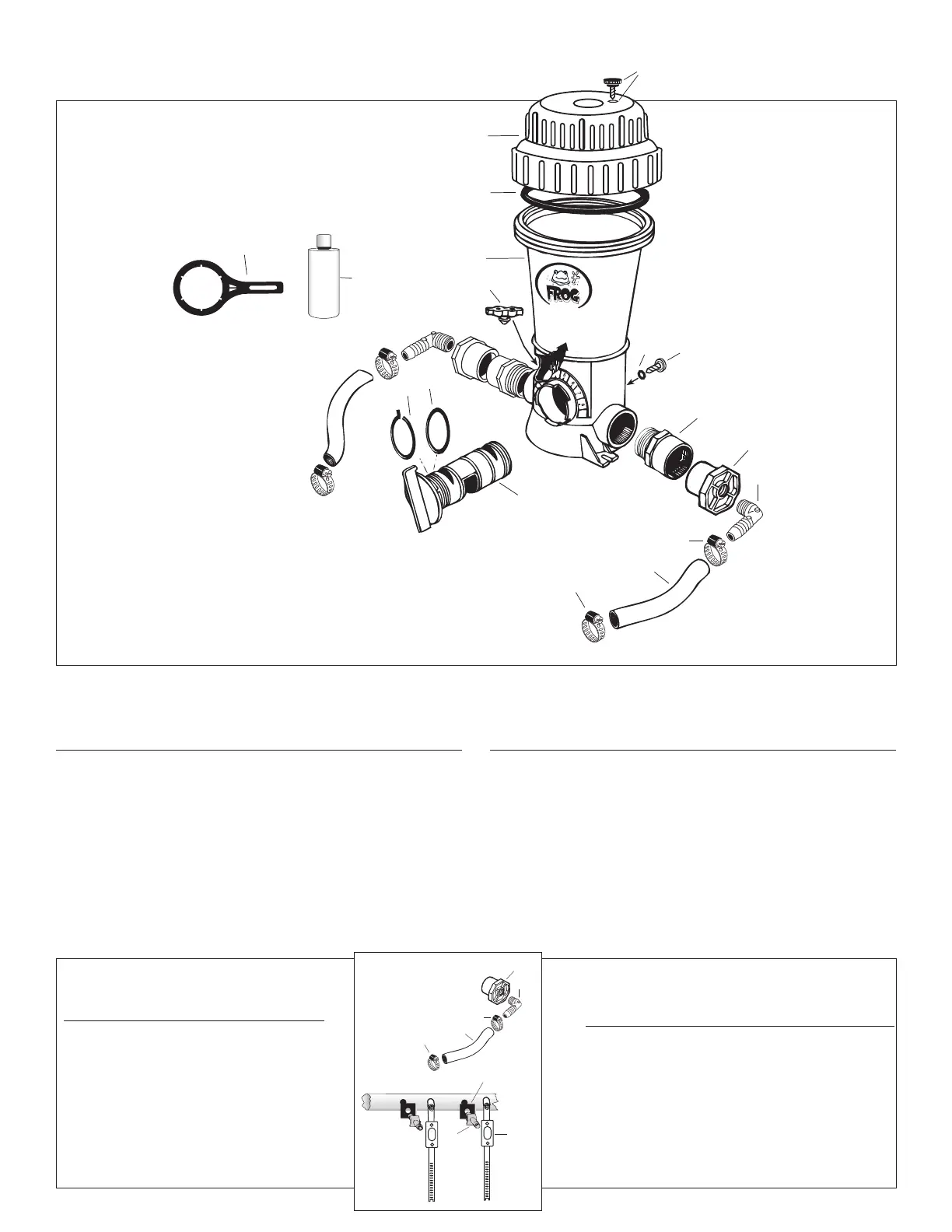

Parts List Models 5400/5430
INCLUDED WITH THE POOL FROG® Model 5400
REF. # DESCRIPTION QTY. INCLUDED
1 & 2 Cap w/O-Ring 1
3 Body 1
4 Pressure Relief Valve 1
5, 6, 7 Control Dial
with O-Ring & Snap Ring 1
8 & 9 Knob with O-Ring 2
10 2” Male Adapter 2
18 Cap/Control Dial Tool 1
19 Silicone Lubricant 1
REPLACEMENT PARTS FOR POOL FROG® Model 5400
REF. # PART NUMBER DESCRIPTION
1 & 2 01-22-9412 Cap w/O-Ring
2 01-22-9920 Cap O-Ring
4 01-22-9480 Pressure Relief Valve
5, 6, 7 01-22-9440 Control Dial
with O-Ring & Snap Ring
6 & 7 01-22-9450 Control Dial O-Ring Kit
8 & 9 01-22-9940 Knob with O-Ring
10 01-22-9490 2” Male Adapter
18 01-22-8870 Cap/Control Dial Tool
19 01-22-9971 Silicone Lubricant
OFF-LINE PARTS Included with Model 5430
REF. # DESCRIPTION QTY. INCLUDED
11* 2” x 1/2” Bushing 2
12 90° Elbow 2
13 Small Clamp 4
14 6’ PVC Tubing 1
15 Scoop Gasket 2
16 Venturi Scoop 2
17 Scoop Clamp 2
REPLACEMENT PARTS FOR OFF-LINE Model 5430
REF. # PART NUMBER DESCRIPTION
11* 01-22-8620 2” x 1/2” Bushing
12 01-22-7800 90° Elbow
13 01-22-7690 Small Clamp
14 01-22-7700 6’ PVC Tubing
15 01-22-7850 Scoop Gasket
16 01-22-7790 Venturi Scoop
17 01-22-7910 Scoop Clamp
8 & 9
1
2
3
4
5
6
7
9
8
10
11
12
13
14
13
18
19
®
B
R
AN
D
CYCLER
11
12
13
14
13
15
16
17
INLET
Between
pump
and filter
OUTLET
After filter
and
heater (if
heater
installed)
2” to 36” apart on
straight pipe
Off-line parts
11 to 17
S
I
L
I
C
O
N
E
L
U
B
R
I
C
A
N
T
