Pool Frog 5400 - Off-line Installation - 5430 Model; Tools, Materials, and Procedure

15
MATERIALS NEEDED
Pipe Thread
Sealant
PVC Cement
OFF-LINE KIT
Included with the
POOL FROG® Cycler
Two Male
Adapters
Two Reducer
Bushings
Two 90 Degree
Elbows
Four Hose
Clamps
6’ of Tubing
Two
Scoops
Two Scoop
Gaskets
Two Scoop Clamps
RECOMMENDED
Corrosion Resistant
Check Valve
#10 x 1 1/4” Phillips
Pan Head Screws with
Washers
PVC
CEMENT
P
I
P
E
T
H
R
E
A
D
4
0
0
S
E
R
I
E
S
W
a
t
e
r
C
Y
C
L
E
R
M
e
t
e
r
e
d
P
o
o
l
P
u
r
i
f
i
e
r
P
I
P
E
T
H
R
E
A
D
D
e
l
i
v
e
r
y
S
Y
S
T
E
M
P
I
P
E
T
H
R
E
A
D
®
B
R
AN
D

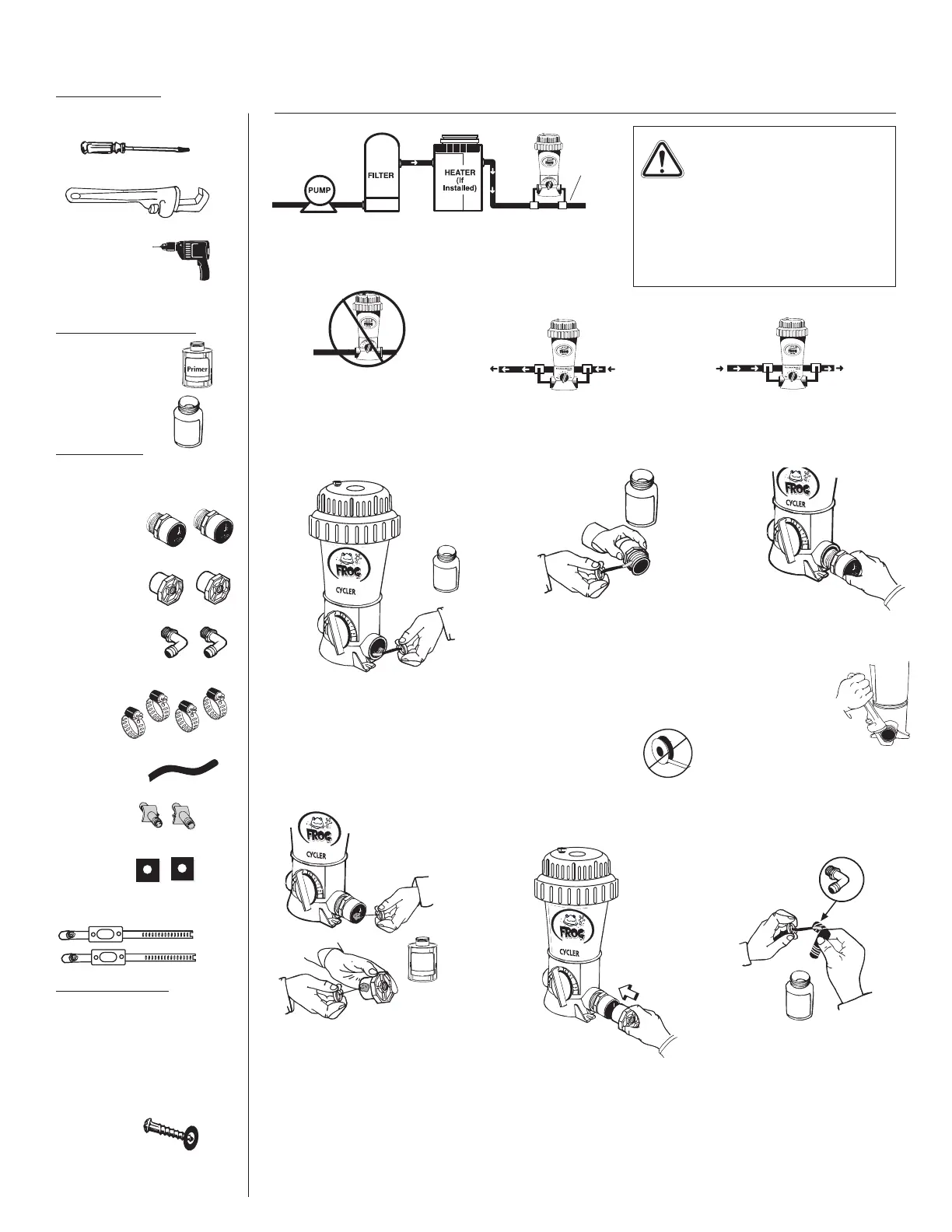

Off-line Installation - 5430 Model
TOOLS NEEDED
Screwdriver
Pipe Wrench
Battery
Operated Drill
with 5/8” or 19/32” Bit
When insufficient room for an in-line application,
install off-line in straight pipe with scoops between
2” - 36” apart.
Do NOT install an off-line
POOL FROG® Cycler in-line as
this POOL FROG® Cycler is
different than an in-line unit.
Brush sealant on threads of
both male adapters.
DO NOT USE PIPE THREAD
TAPE as the threads on
these units are not suitable
for this use and
leaking or fitting
failure could result.
Screw a male
adapter into each
port of POOL FROG® Cycler
and hand tighten.
Completely
tighten
turning 1 to 2
revolutions
with a wrench.
DO NOT OVER TIGHTEN.
Following pipe thread
sealant directions, brush
sealant on to POOL FROG®
Cycler threads in both ports.
Following PVC cement
directions, brush PVC
cement on reducer
bushings and inside of male
adapters.
Insert reducer bushing
into male adapter on both
sides. Hold in place 5 to 10
seconds to bond.
Following pipe thread
sealant directions, brush
sealant on to elbow threads.
1. 2. 3.
4.
5.
6.
OR
Bi-flow valve design allows water flow in either direction.
• Install after all equipment and
as far as possible from heater.
• Any additional sanitizing
equipment that is installed
with FROG® must be installed
after FROG® (never before)
on the return line to the pool.
SCOOPS
2” – 36” APART
