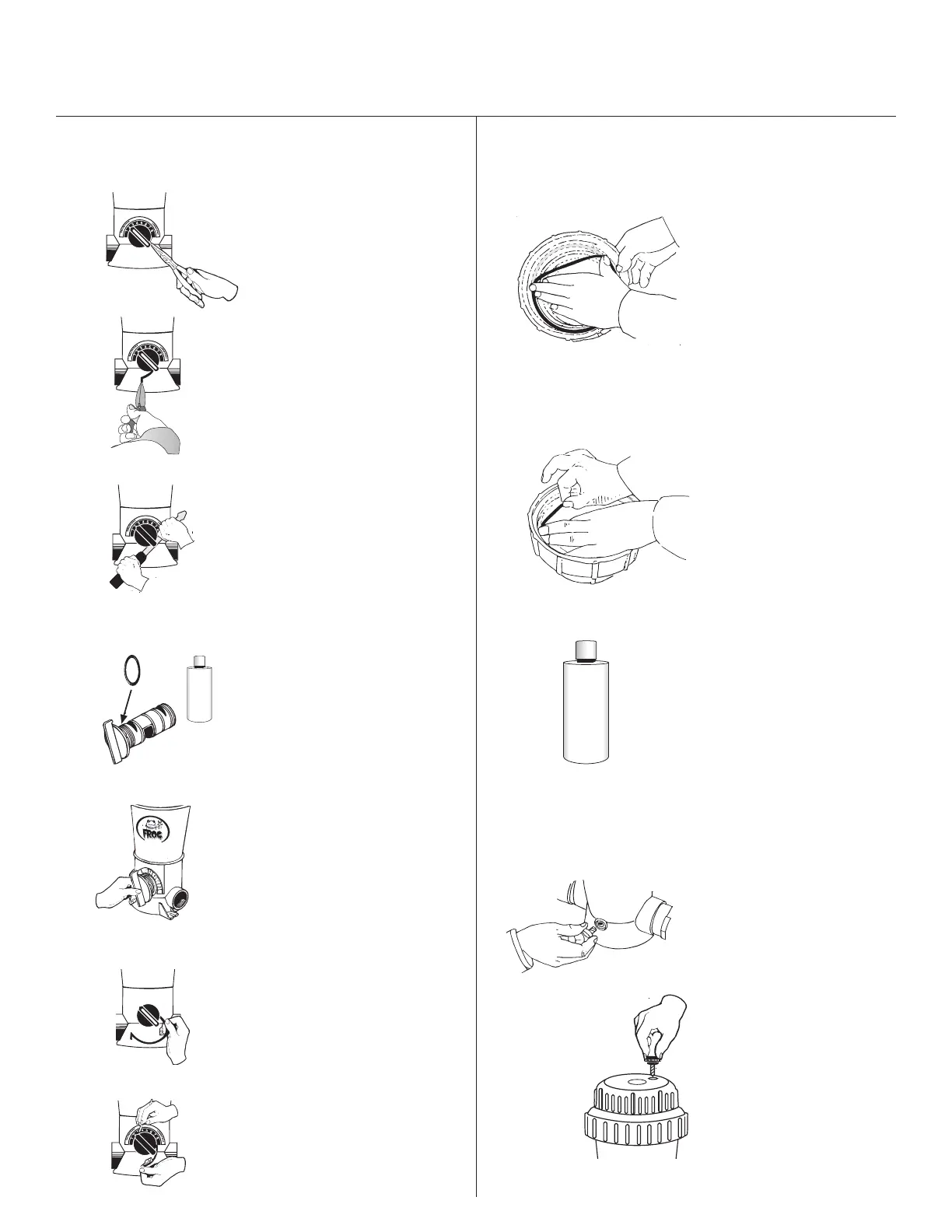

Replacing the Control Dial O-Rings
Replacing Cap O-Ring
Hold cap in front of you
upside down with the o-ring
groove facing up. Place one
end of o-ring into cap groove
at the point closest to you.
Hold o-ring down with the
thumb and index finger of
one hand.
Take hold of the far end of
the o-ring with the thumb
and index finger of the other
hand. Roll o-ring slightly
back towards you as you
stretch the o-ring into the
remainder of the cap
groove.
Lubricate o-ring often with
silicone lubricant that came
with your POOL FROG
®
Cycler. DO NOT USE
petroleum based lubricants.
Replacing Knobs
Back of Cycler
Using a needle nose pliers,
find the snap ring tail located
at approximately the five
o'clock position under the
control dial.
Pull down and out of the
groove.
Using a large screwdriver,
loosen the control dial.
Carefully pry the dial until it
pulls out.
Insert the non-lipped end of
snap ring into the groove
opening beginning at the 5
o'clock position and push it
up so that it threads itself
around the control dial.
Using a small screwdriver or
pointed tool to help guide it,
make sure the snap ring
stays in the groove as it is
inserted.
Carefully replace the rubber
o-ring without stretching it.
Apply silicone lubricant, that
came with your POOL
FROG
®
Cycler, on o-ring.
Push control dial completely
into the housing and turn the
dial to setting 2.
C
O
P
Y
C
O
P
Y
C
O
P
Y
C
O
P
Y
O
T
H
E
R
C
O
P
Y ?
S
I
L
I
C
O
N
E
L
U
B
R
I
C
A
N
T
Replace knob in back or on
cap of POOL FROG
®
Cycler
by unscrewing old one and
screwing in new one.
Top of cap
1.
2.
3.
4.
5.
1.
2.
3.
6.
7.
®
B
R
AN
D
CYCLER
